Operating manual.
CNC 8060
CNC 8065
PLC
20.
Editing in contact (ladder) language (softkeys).
·355·
(REF: 1807)

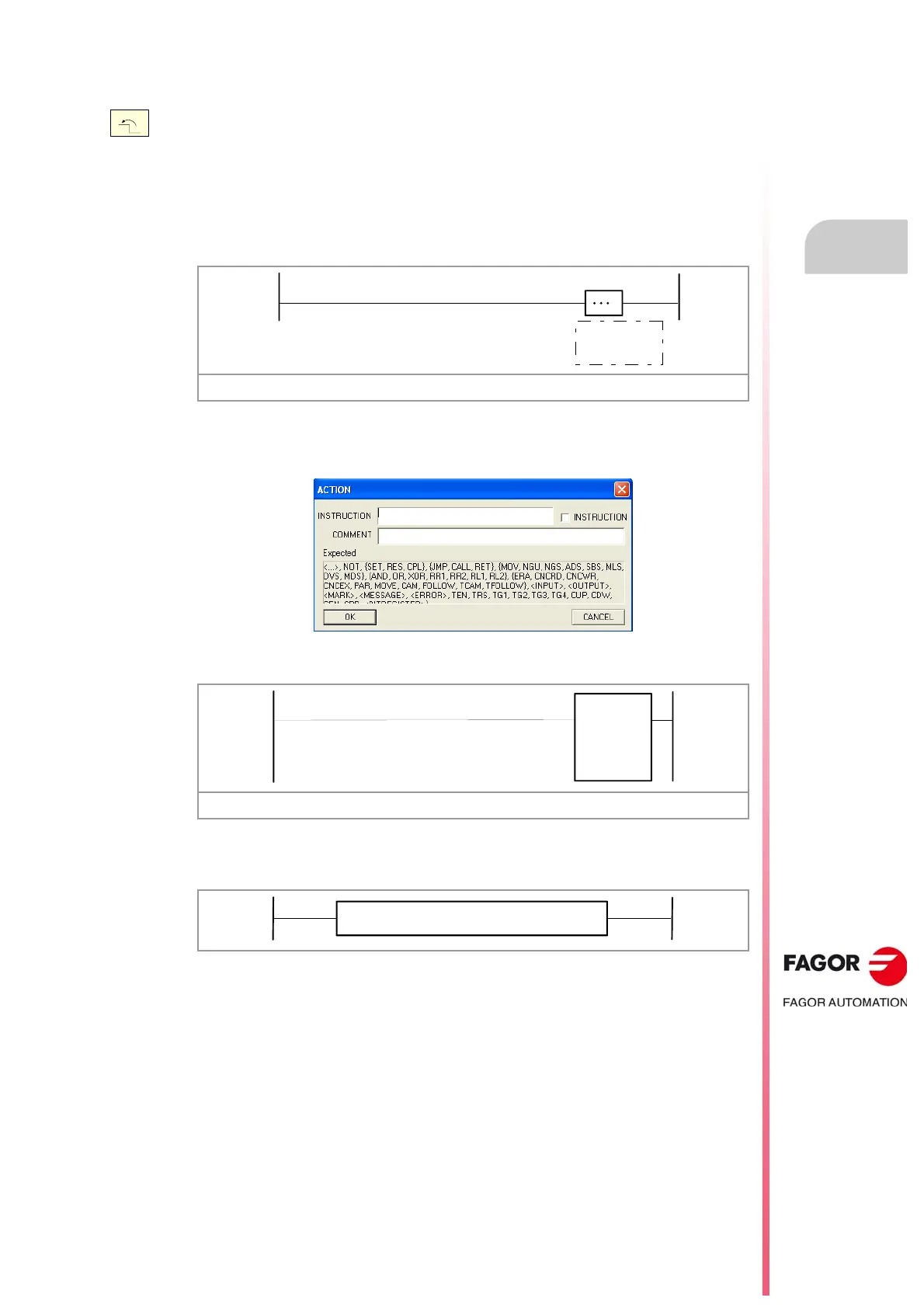

20.5.3 "Edit" softkey.
Edit "New block".
This softkey adds a new block with an empty contact. This contact will be the action for a
consultation and "n" the number identifying the block. The new block is inserted above the
block where the cursor is located.
Positioning the cursor on the action_contact and pressing [ENTER] displays a dialog box
for associating an instruction and a comment with it. The "Expected" field offers a context
help with valid instructions.
The instruction must be written in mnemonic language. Placing the cursor on action_contact
and using the "Parallel" softkey, it is possible to add other action_contact in parallel.
To define a directing instruction, activate the "Directing" field in the dialog box and then write
an instruction. Directing instructions can only be programmed in a block with their
action_contact empty and without consultation_contact.
Edit "Cut"
Cut the selected contact or block.
Edit "Copy"
Copy the selected contacts or blocks.
Edit "Paste"
Paste the contacts or blocks that have been previously cut or copied. It pastes them in parallel
with the selection.
Edit "Delete"
Delete the selected contacts or blocks.
This softkey may be used to edit the selected program and copy, cut and paste a block or
group of blocks. When selecting this option, the softkey menu shows the available options.
To return to the main menu, press the [BACK] key.
The frame with dash lines indicates the position of the cursor.
() = CNCRD(A.POS.X, R100, M100)
