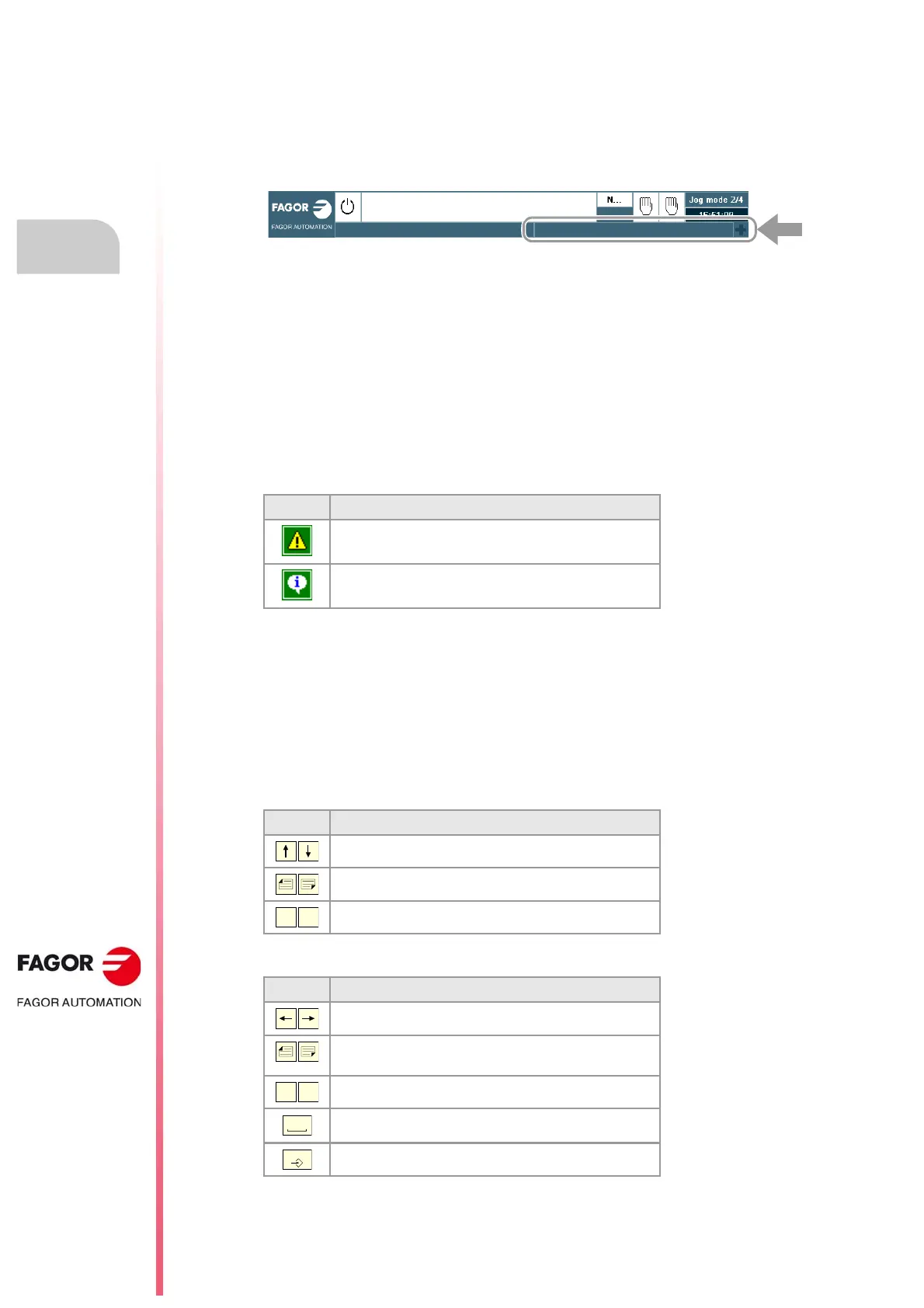

3.2.2 PLC messages.
When the PLC activates a message, the CNC shows on the general status bar (lower right)
the message number and its associated text. If the message has been defined so it shows
a file with additional information, it will be displayed at full screen (if the file does not exist,
a blue screen will be displayed).
If there are several active messages, it will display the one with highest priority (the one with
lowest number). It will also show the "+" sign next to the PLC message window to indicate
that there are more messages activated by the PLC. To display the list of active messages,
press the key combination [CTRL]+[M] or click on the PLC message line.
List of active PLC messages.
On the message list and next to each message, a symbol will appear to indicate whether
the message has an additional information file associated with it or not. To display a
message, select it with the cursor and press [ENTER]. If the message has an additional
information file, it will be displayed on the screen. To close the additional information window,
press [ESC].
File with additional information
The files with additional information, defined by the machine manufacturer, may be displayed
automatically when activating the message (if so defined in the table for messages and
errors) or when requested by the user (at the message window). The following keys are
available to move around in the additional information window depending on the type of file
displayed (TXT, BMP, JPG, HTM, HTML or AVI):
TXT, BMP, JPG, HTM, HTML file.
AVI file.
Icon. Meaning.
The message does not have a file with additional
information.
The message has a file with additional information.
Key. Meaning.
Scroll the window line by line.
Scroll the window page by page.
Take the window to the beginning or to the end.
Key. Meaning.
Stop the video and move to next frame or previous frame.
Stop the video and move to the next 5 frames or to the
previous 5 frames.
Stop the video and move to the end or to the beginning.
Stop the video.
Play the video.
