Fagor CNC 8060 - Main Menu; Detailed Description of the CNC Status Bar

Operating manual.
CNC 8060
CNC 8065
HOW TO OPERATE THE CNC
3.
Detailed description of the CNC status bar
·65·
(REF: 1807)

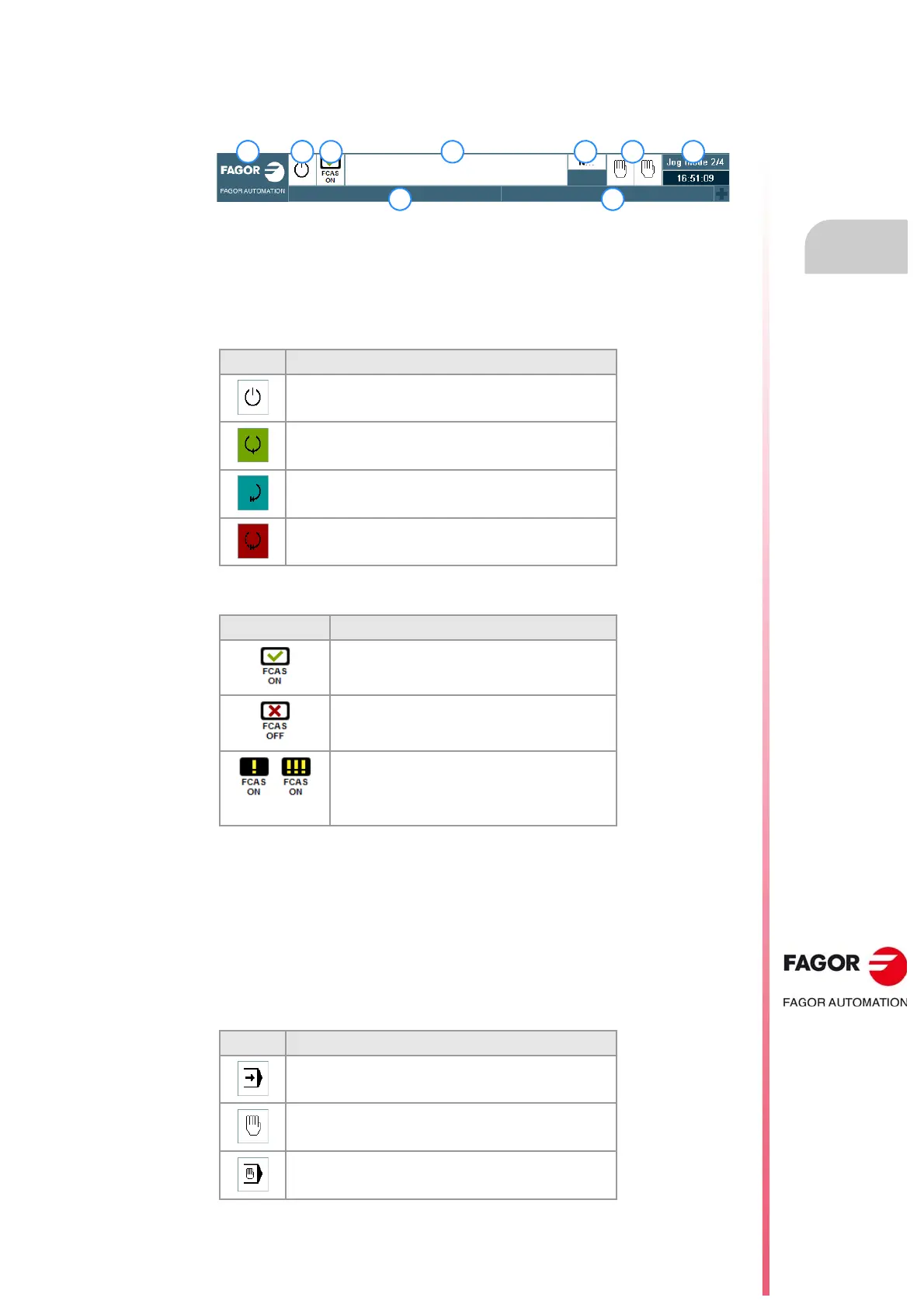

3.2 Detailed description of the CNC status bar
The status bar of the CNC (top of the screen) shows the following information.
A Icon (customizable) identifying the manufacturer.
Clicking with the mouse or pressing on a touch-screen, the CNC shows the task window
(same as pressing the keystroke sequence [CTRL]+[A]) that shows the list of the work
modes and hotkeys of the CNC.
B Icon showing the status of the program of the active channel: The background color will
be different depending on the status of the program.
C Icon showing FCAS (Fagor Collision Avoidance System) status: The CNC will display
this icon when the software option associated with the FCAS is available.
D Program selected in the active channel for execution.
Clicking with the mouse or pressing a touch-screen has the same effect as the
[Main-Menu] key, which shows the initial screen of the CNC.
E Number of the block in execution. The bottom icon indicates that the Single-block
execution mode is active.
F Information about the channels. Number of channels available and active channel
(indicated in blue). Icons show which operating mode each channel is in. The channel
synchronization window may be expanded using the [ALT]+[S] keys. Clicking with the
mouse or pressing a touch-screen to access the desired channel, doing it on the icon
of the active channel, has the same effect as the [ESC] key.
Icon. Meaning.
Programmed stopped.
Background color: White.
Program in execution.
Background color: Green.
Program interrupted.
Background color: Dark green.
Program in error.
Background color: Red.
Icon. Meaning.
Active feature.
Feature is disabled; the machine configuration is
not loaded (xca file), the HD graphics are not
selected or the PLC has disabled this feature.
Blinking icon.
• The axes are close to the collision zone.
• CPU overload during collision detection
calculations.
Icon. Meaning.
Execution mode.
Jog mode.
MDI/MDA mode.
A
H I
G B C D E F
