HOW TO OPERATE THE CNC
3.1 General description of the interface.

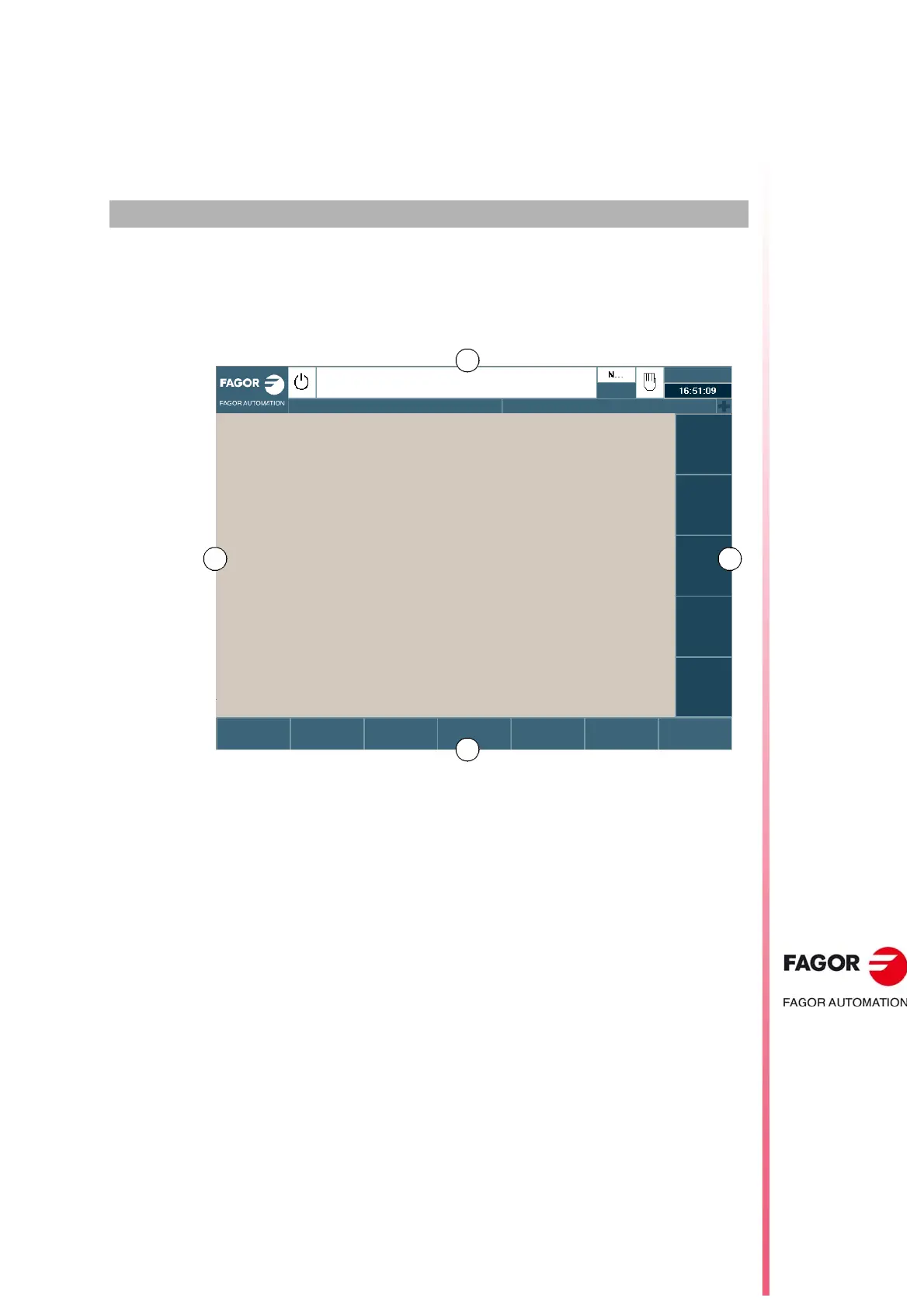

A General CNC-status bar.
This area shows the information on the program being executed, the active operating
mode, the PLC messages, etc. See "Detailed description of the CNC status bar" on page
65.
B Windows of the active work mode.
The information shown in this area depends on the active work mode (automatic, jog,
etc.). The information shown in each work mode is described in the relevant chapter.
C Vertical softkey menu.
The menu options change depending on the active work mode. The different options are
selected using softkeys F8 through F12. This menu may appear to the left or right of the
interface depending on how the OEM has configured the machine.
By default, the CNC displays 5 vertical softkeys. On 19" and 21" monitors, the OEM can
configure the number of vertical softkeys (between 5 and 12).
D Horizontal softkey menu.
The menu options change depending on the active work mode. The different options are
selected using softkeys F1 through F7.
By default, the CNC displays 7 vertical softkeys. On 19" and 21" monitors, the OEM can
configure the number of vertical softkeys (between 7 and 12).
A
B C
D
