3.2.1 Channel synchronization window
The channel synchronization window is available in all work modes. This window may be
expanded using the key combination [ALT]+[S]. The synchronization is carried out using
marks in the programs. The window shows for each channel whether it is waiting for
synchronization marks or not and the status of those marks in the channel that originates
them.
The different color LED's of the window show the status of the synchronization marks of each
channel. On the left, the channels waiting for the marks and on top the channels that originate
them.
LED. Meaning.
White The channel is not expecting any synchronism mark.
Green The channel is expecting a synchronism mark.
The mark is active (set to ·1·) in the channel that originates it.
Red The channel is expecting a synchronism mark.
The mark is not active (set to ·0·) in the channel that originates it.

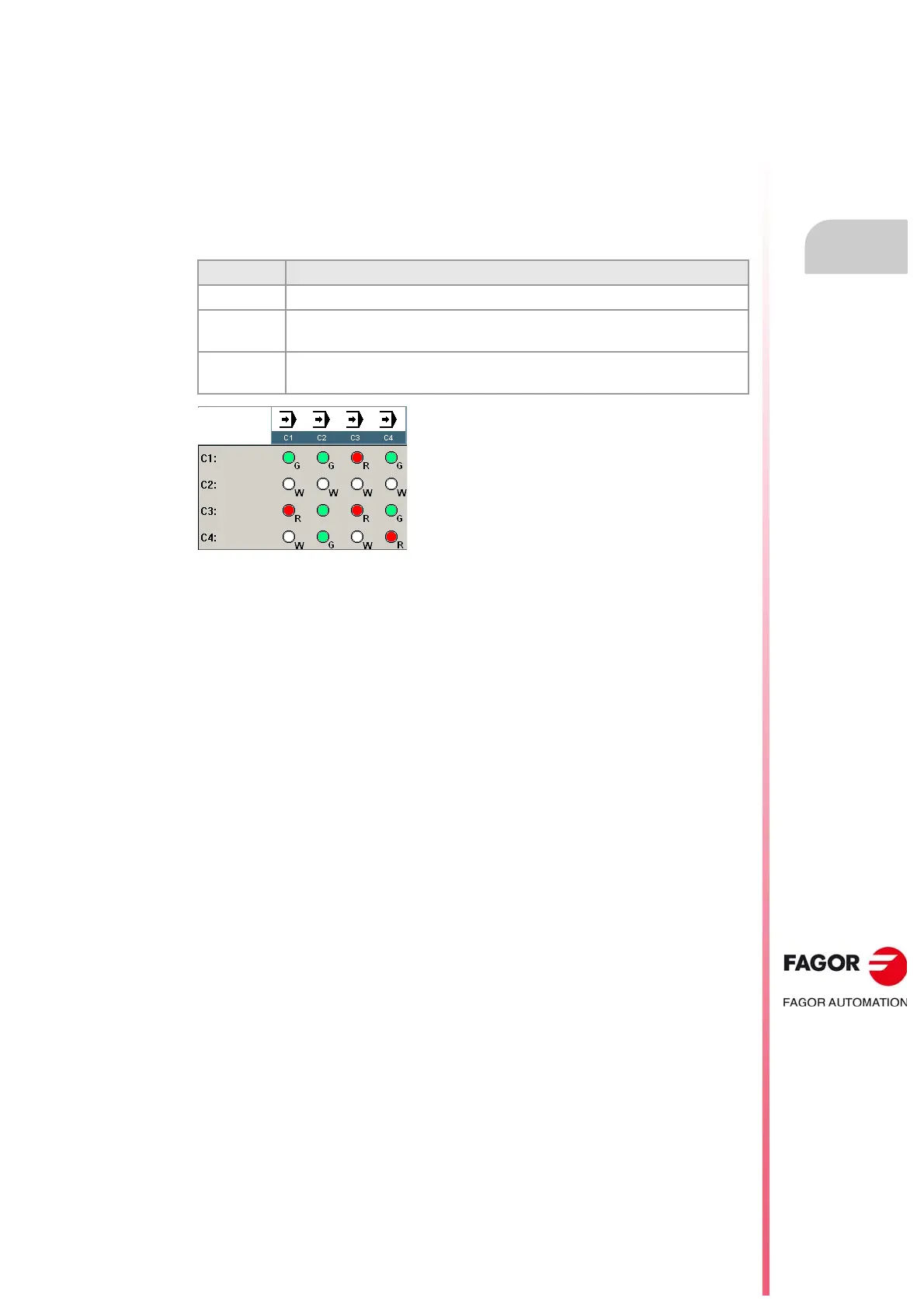

Channel 1 (CH1) is expecting synchronism marks from
the rest of the channels. The marks of channels 2 and
4 are active. The mark of channel 3 is not active.
Channel 2 is not expecting any synchronism mark.
(In the graphic, the white LED's are identified with the letter -
W-, the green ones with the letter -G- and the red ones with the
letter -R-).
