PROFILE EDITOR
11.1 Interface description.
The profile editor is used to edit quickly and easily simple rectangular, circular profiles and
any type of profile consisting of straight and curved sections. As the profile data is entered,
the editor shows a graphic representation of the profile.

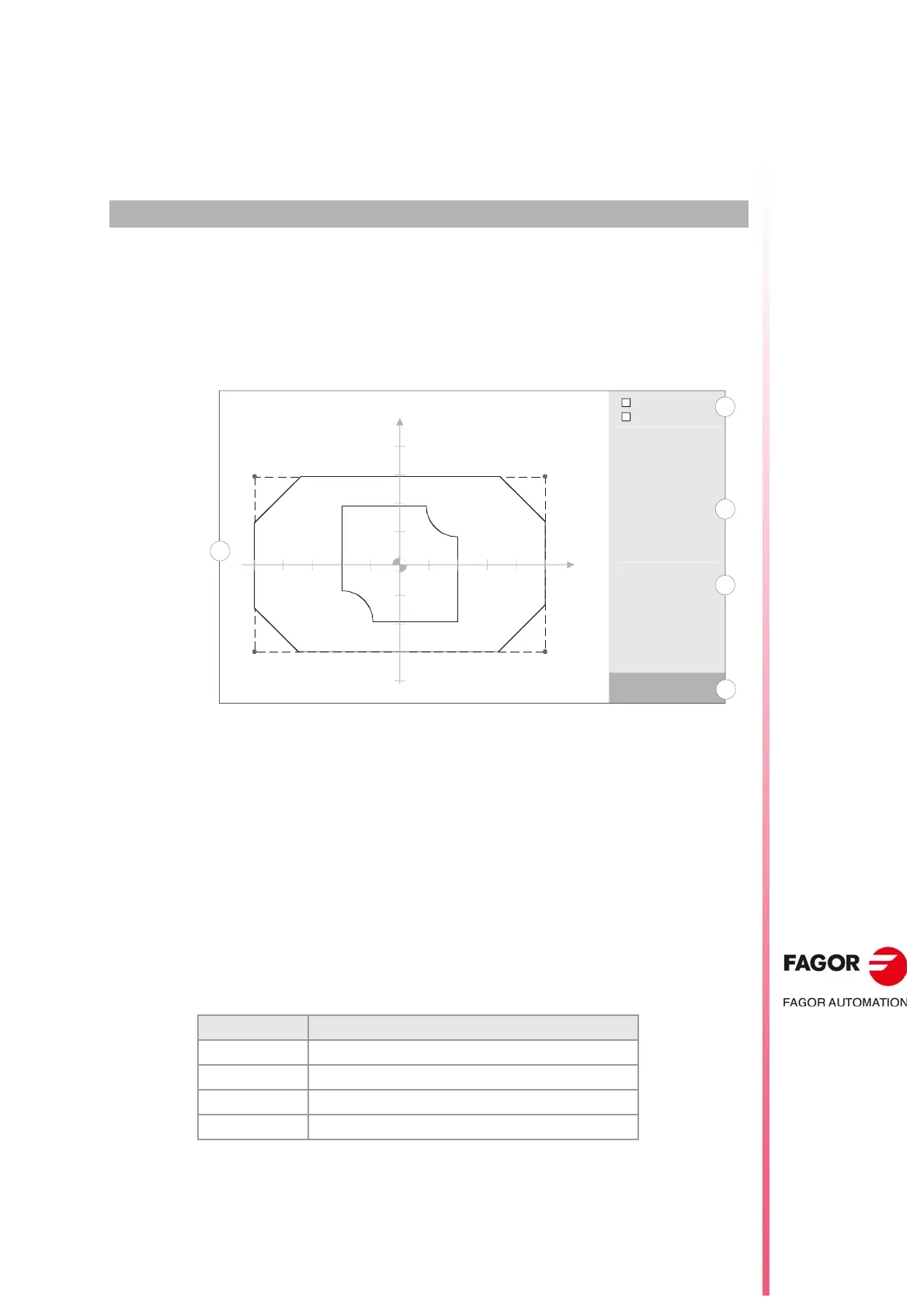

A Graphic area. Graphic representation of the profile being drawn, axes coordinated with
autoscale and name of the axes that make up the plane. The name of the axis indicates
the positive direction of the axis.
B Status of the autozoom and part zero options, regarding the display of the profile at the
editor.
C Data entry area.
D Translation (conversion) of the selected profile or part of it into ISO code
E Area used to enter the values of the corners or the ISO coded text to be added to the
element.
Keyboard shortcuts.
These options will not be available when a menu for editing data or selecting items is active
at the editor.
Keys. Meaning.
[] [] [] [] Move the graphics.
[+] [–] Enlarge or reduce the display area.
[/] Keeps the part zero visible at all times.
[] Activate autozoom.
-40 -30 -20 -10 10 20 30 40 50
Y
-50
X
-40
-30
-20
-10
10
20
30
40
Autozoom
Part zero
Cntr-clock. arc
X1 -10.0000
Y1 -20.0000
X2 -20.0000
Y2 -10.0000
Xc -20.0000
Yc -20.0000
Radius 10.0000
Tangency No
ISO
G03 G08 G90 X -20 Y-10 I-20
J-20
B
C
E
D
A
