GRAPHICS HD (·T· MODEL).
Graphic environment.
·262·
(REF: 1807)
15.1.1 HD graphics in automatic mode.
The automatic mode displays a graphical representation of the program being executed.
Vertical softkey menu.
The vertical softkey menu displays the options depending on the operating mode calling the
graphic environment; in this case, automatic mode. Refer to the chapter on "Automatic
mode" for more details on the functionality of these softkeys.
Horizontal softkey menu.
• When the focus is on the program area, the softkey menu displays the options to manage
the program execution. The softkey menu is the same as the automatic mode. Refer to
the chapter on "Automatic mode" for more details on the functionality of these softkeys.
• When the focus is on the graphics area, the softkey menu displays the options to work
with the graphics. The softkey menu is similar to the graphics of the edisimu mode.

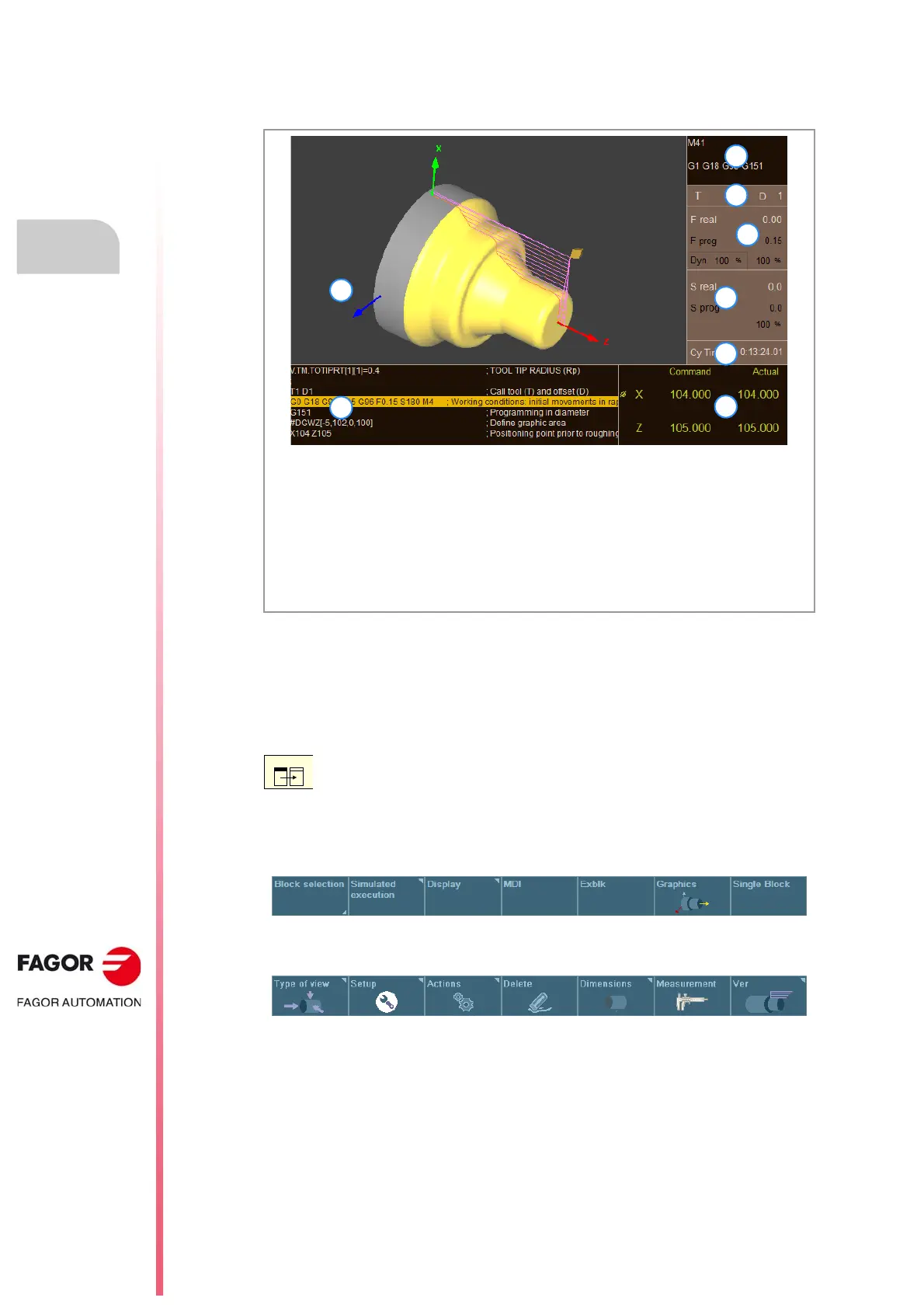

A. The graphical area displays a graphical representation of the tool paths, the solid or both.
B. Program or executed subroutine.
C. Active functions "M" and "G".
D. Tool number "T" and tool offset "D".
E. Real feedrate (F real), programmed feedrate (F prog) and axes override. Dynamic (Dyn) override.
F. Real speed (S real), programmed speed (S prog) and spindle override.
G. Execution time (Cy Time) of the program.
H. Programmed coordinate (Command) and axis position regarding the part zero referring to the tool
tip.
The horizontal softkey menu changes depending on the area in which the focus
is located; graphics area or program area. Use the [FOCUS] key to change the
focus area.
