11.7.4 Profile editor. Example 4 (lathe)
Profile definition without rounding, chamfers or tangential entries and exits.
Definition of rounding, chamfers and tangential entries and exits
Select the "Corners" option. Press [ESC] to quit the "Corners" option.
End of editing
Select the "END" option and save the profile. The CNC quits the profile editor and inserts
the profile in the part-program.

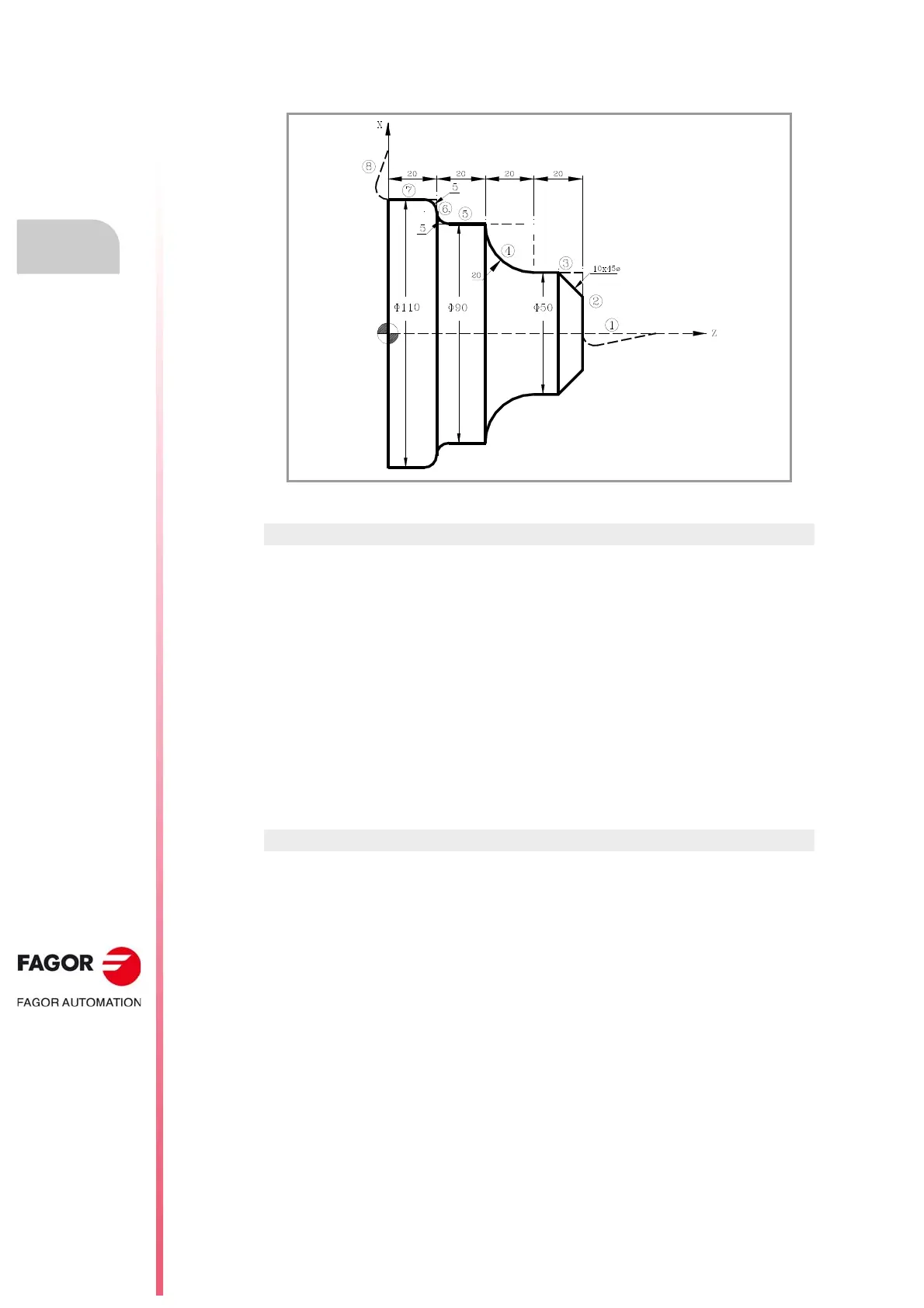

Section. Geometry.
Starting point Z = 100 X = 0
Straight (1) Z = 80 X = 0
Straight (2) Z = 80 X = 50
Straight (3) Z = 60 X = 50
Clockwise arc (4) Z = 40 X = 90 Center Z = 60
Center X = 90
Radius = 20
Straight (5) Z = 20 X = 90
Straight (6) Z = 20 X = 110
Straight (7) Z = 0 X = 110
Straight (8) Z = 0 X = 150
Corners.
Tangential entry Select the corner "1-2" Assign radius = 5
Chamfer Select the corner "2-3" Assign size = 10
Rounding Select the corner "5-6" Assign radius = 5
Rounding Select the corner "6-7" Assign radius = 5
Tangential exit Select the corner "7-8" Assign radius = 5
