PLC
20.1 Appearance of the PLC mode
In this operating mode, the PLC may be accessed to check its operation or the status of the
different PLC variables. It is also possible to edit and analyze the PLC program as well as
the message and error files of the PLC.
At a CNC with a write-protected (read-only) disk, working in user mode, the PLC program
is write-protected and any changes made to it are temporary; i.e. it will disappear the next
time the unit is turned on. To make the changes permanent, unprotect the PLC program by
starting the unit up in setup mode and validating the changes made.

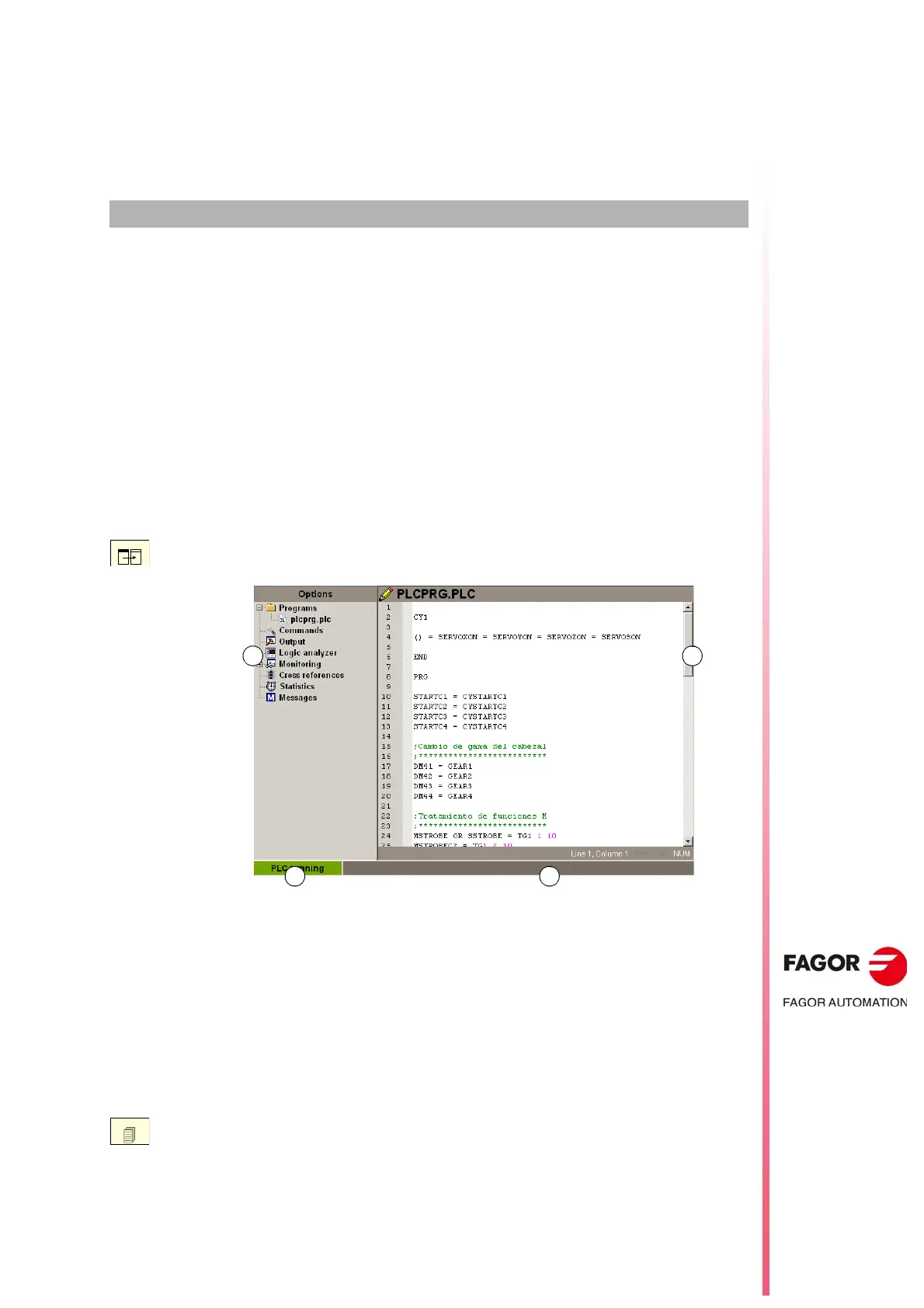

Interface description.
A Service window that shows the list of the services available in the PLC environment.
B Data window.
C It shows the PLC status, running or stopped.
D CNC messages.
Select the PLC services.
This operating mode may be displayed with several screens. Each of them corresponds to
a PLC service. The exchange between the different services is carried out with the list of
services.
The PLC mode screen shows the following information. To switch windows, press the
[FOCUS] key.
The different services overlap each other. If several services active, it is possible to switch
from one to another using the [NEXT] key, if it has been set accordingly. The services are
switched in a rotary manner, in such a way that when pressing on the last active service, it
shows the first one. To close a screen, press [ESC].
