USER TABLES
Zero offset tables
·286·
(REF: 1807)

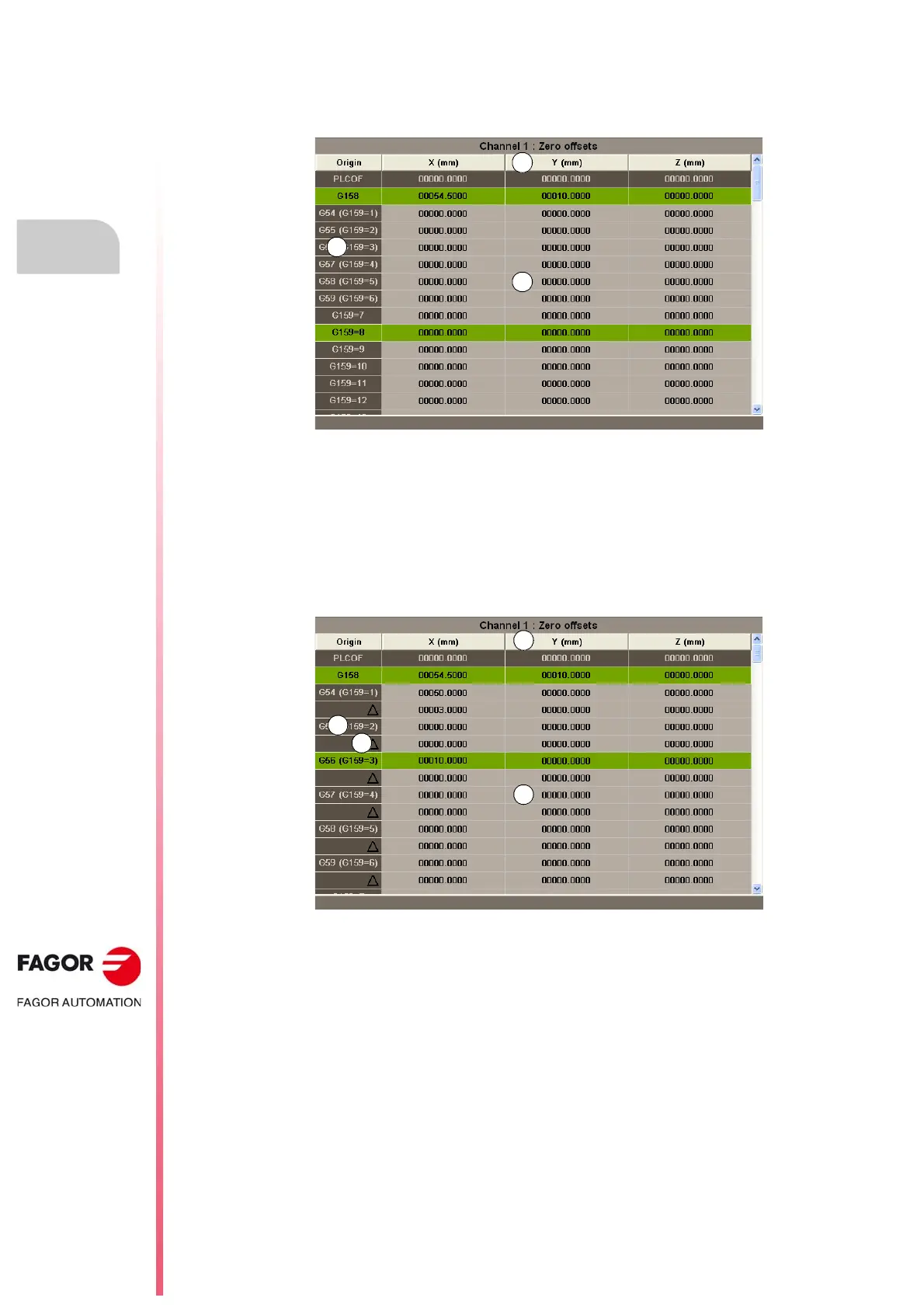

Absolute zero offset table (with fine setting of the zero offset).
Each zero offset has a single value. When activating a zero offset (function G159), the CNC
assumes this value as the new zero offset.
Absolute zero offset table (with fine setting of the zero offset).
Each zero offset has a coarse (or absolute) value and a fine (or incremental) value. Setting
the coarse value of an offset deletes its fine value. When activating an offset (function G159),
the CNC assumes as new zero offset the sum of both parts.
A Machine axes and display units (millimeters, inches or degrees).
B Zero offsets.
C Zero offset value in each axes of the channel.
A Machine axes and display units (millimeters, inches or degrees).
B Zero offsets (coarse part).
C Zero offsets (fine part).
D Zero offset value in each axes of the channel.
