Fagor CNC 8060 - Page 39

Operating manual.
CNC 8060
CNC 8065

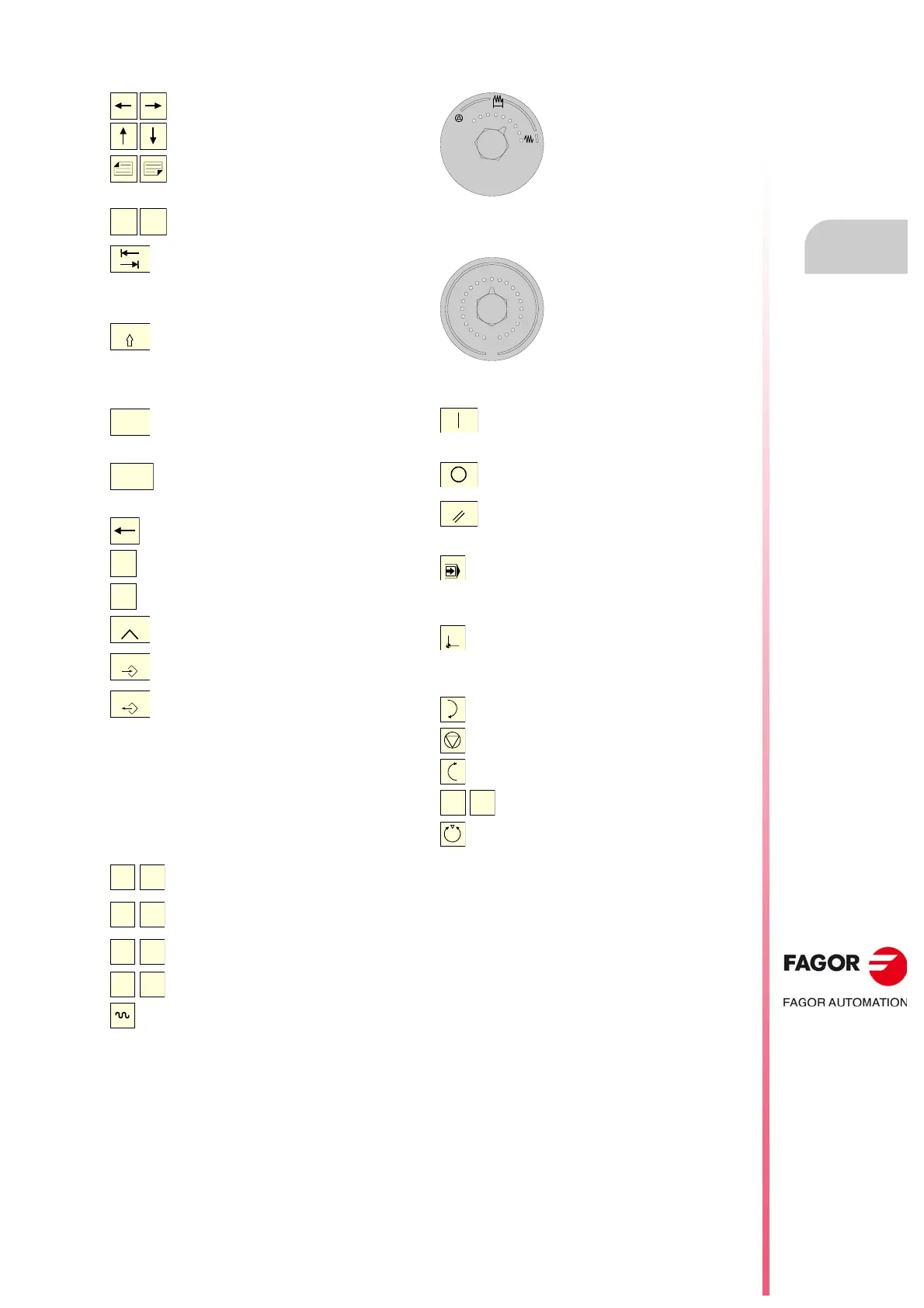

DESCRIPTION OF THE KEYS
1.
Monitor LCD-10K (option 1). (8065).
·39·
(REF: 1807)
Keys to move the cursor.
Editing keys.
Jog keyboard for jogging the axes.
Feed selectors.
Execution keys.
Spindle control.
The arrow keys move the cursor one position
to the left, right, up or down.
The previous-page or next-page keys show
the previous or next page at the part-
program or PLC program editor.
The home and end keys move the cursor the
beginning or end of the line.
The tab key moves the cursor to the next field
of the active menu.
Shift.
Hold this key down to write upper case
letters. When combining this key with a
cursor moving key, it selects the text the
cursor slides on.
Shift lock.
It toggles between uppercase and
lowercase letters.
ASCII characters.
Hold this key down and key in the
corresponding ASCII code.
Delete.
Delete.
Insert or overwrite.
Escape key, to cancel the current action
without assuming the changes.
Key to validate commands, data and
program blocks of the editor.
Recover data.
While the Teach-in mode is active, this key
enters the axes and their current position
into the block.
When selecting a profile or conversational
canned cycle in the part-program, the key
accesses either the profile editor or canned
cycle editor accordingly.
Keys to select axes and jog them in the
positive direction.
Keys to select axes and jog them in the
negative direction.
Keys to select the axes and keys to select the
jogging direction. Both keys (axis and
direction) must be pressed to jog the axis.
Rapid key. When pressing this key while
moving an axis, the CNC applies the rapid
feedrate.
ENDHOME
SHIFT
CAPS
ALT
DEL
INS
ESC
ENTER
RECALL
X+ 7+
X- 7-
X 7
_
+
Sector for the type of jog;
continuous / incremental jog or
handwheels.
In handwheel mode, it selects the
multiplying factor for the
handwheel pulses (x1, x10 o
x100).
In incremental mode, it selects
the incremental value of the axis
movements.
Selector of percentage of
feedrate override, between 0%
and 200%, for jog and automatic
movements.
Cycle start key (START).
Execute the selected program in automatic
mode, a block in MDI/MDA mode, etc.
Cycle stop key (STOP).
Interrupt the execution of the CNC.
Reset key.
It initializes the system setting the initial
conditions as defined by machine parameters.
Single-block execution mode.
When selecting the "single block" execution
mode, the program simulation will be interrupted
at the end of each block.
Home search.
Start the spindle clockwise.
Stop the spindle.
Start the spindle counteclockwise.
To vary the spindle speed percentually.
Spindle orientation.
10000
1000
100
10
1
100
10
1
jog
200
190
180
170
160
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
4
2
0
FEED
RESET
SINGLE
ZERO
_
+
