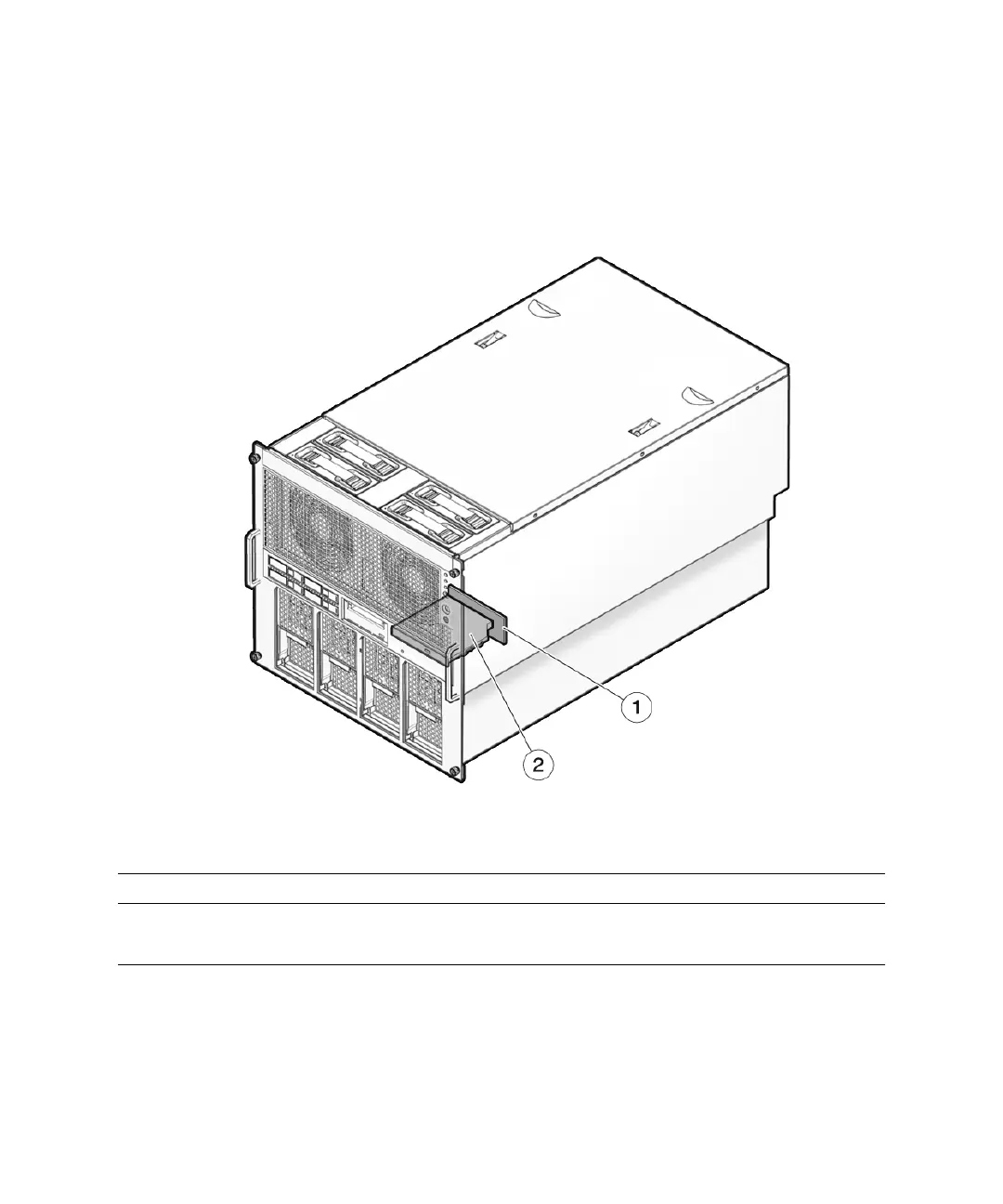

FIGURE 6-5 shows the location of the CD-RW/DVD-RW drive unit and
CD-RW/DVD-RW backplane on the M5000
server.
FIGURE 6-5 M5000 Server CD-RW/DVD-RW Drive Unit and CD-RW/DVD-RW Backplane Locations (Tray
version shown)
Location Number Component
1 CD-RW/DVD-RW Backplane (DVDBP)
2 CD-RW/DVD-RW Drive Unit (DVDU)
