10-2 SPARC Enterprise M4000/M5000 Servers Service Manual • December 2010

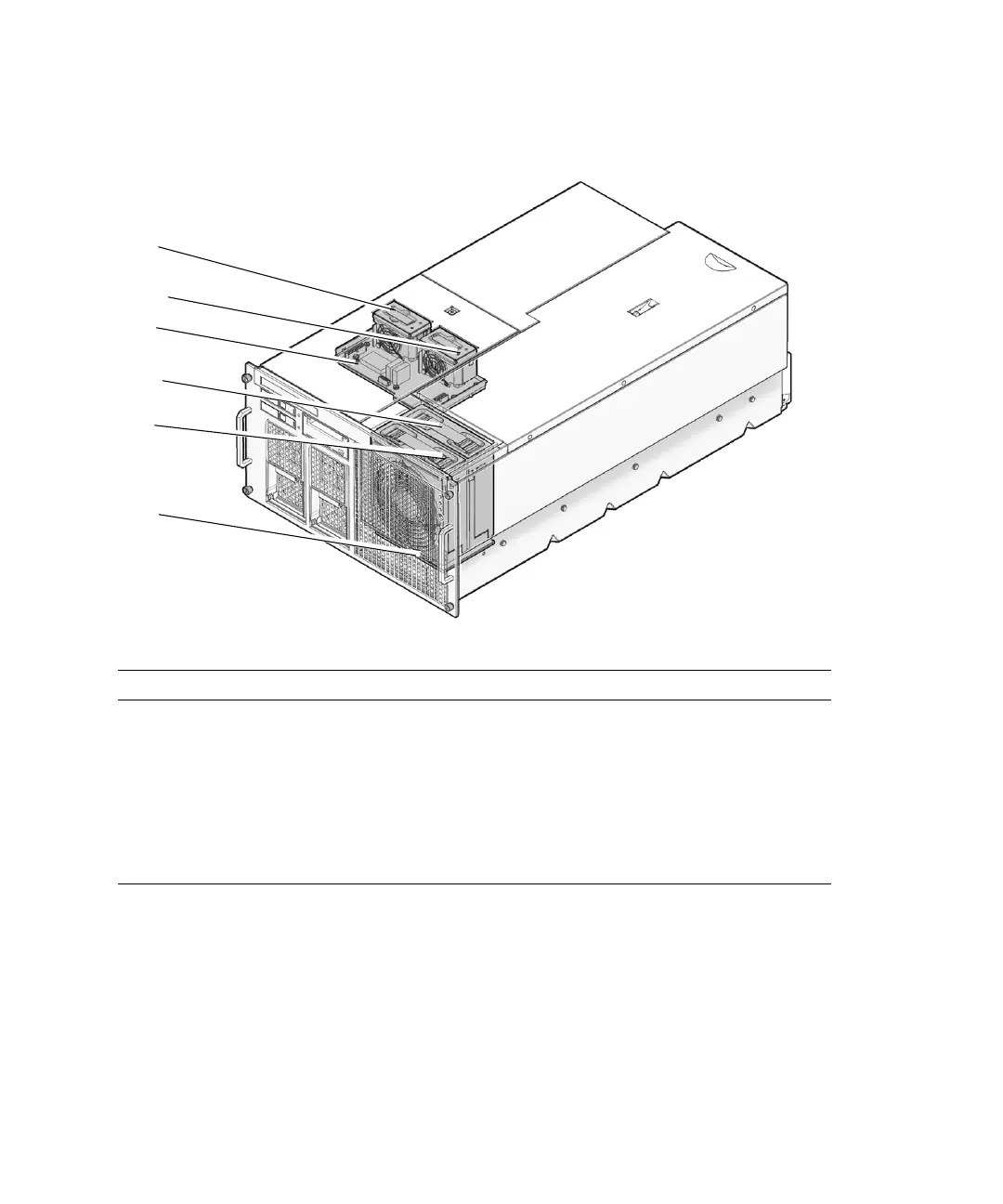

FIGURE 10-1 shows the fan module and fan backplane location on the M4000 server.
FIGURE 10-1 M4000 Server Fan Module and Fan Backplane Locations
Location Number Component
1 60-mm fan module (FAN_B#0)
2 60-mm fan module (FAN_B#1)
3 60-mm fan backplane (FANBP_B)
4 172-mm fan module (FAN_A#1)
5 172-mm fan module (FAN_A#0)
6 172-mm fan backplane (FANBP_A)
1
4
2
5
6
3
