5.9.7.3 SmartPoSMSR Installation
An MSR can be installed on any of the model D15
LCDs.

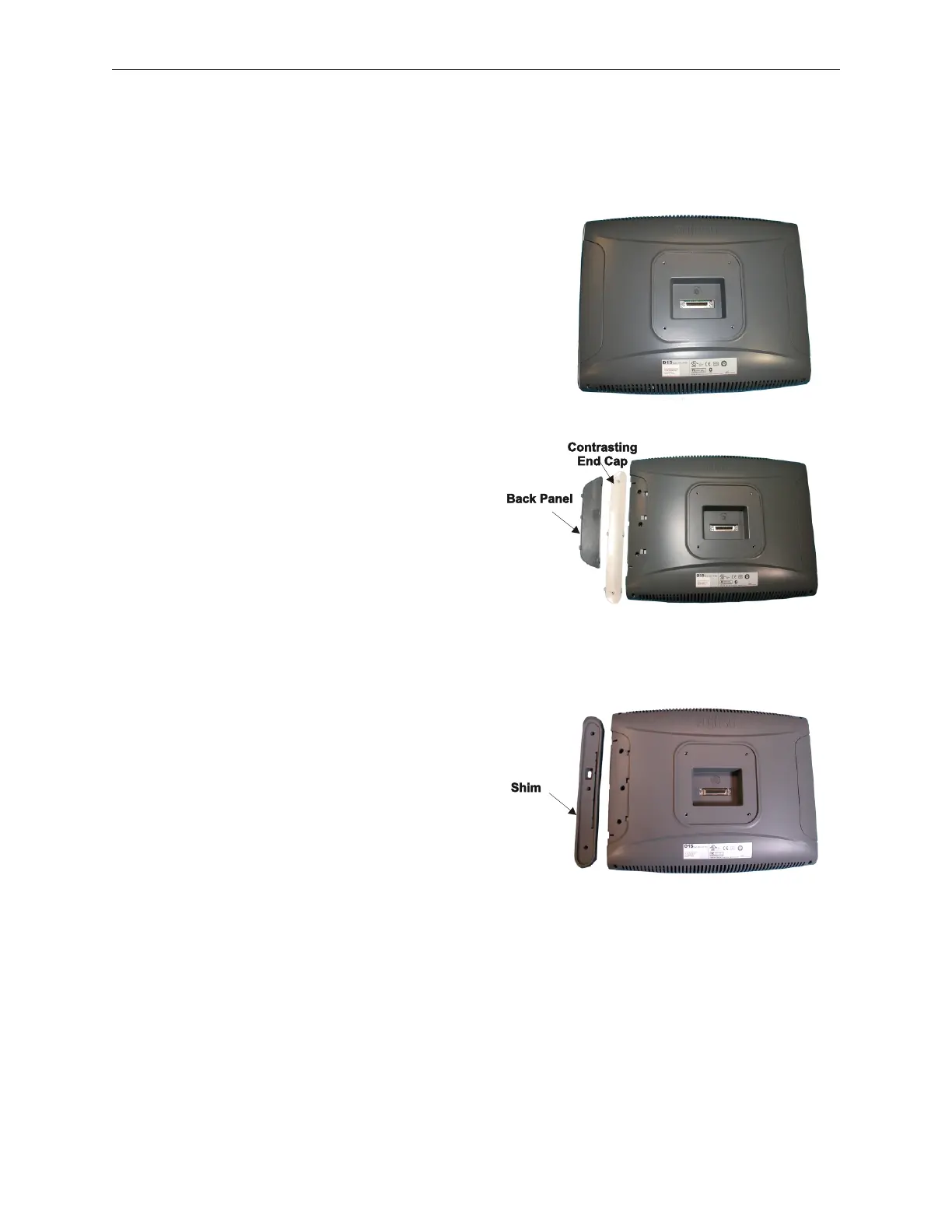

1. Place the D15 face down on a clean surface,
making sure there is nothing that will damage the
screen. The bottom edge of the unit should be
nearest to you.
2. Remove the left-side gray access cover and the
contrasting end cap.
3. Align the shim that came with the D15 so that it
matches the contour of the side of the D15.
90000291 Rev 3.0 5-49
TeamPoS 2000 MAINTENANCE MANUAL
