LCD Requirements (continued)

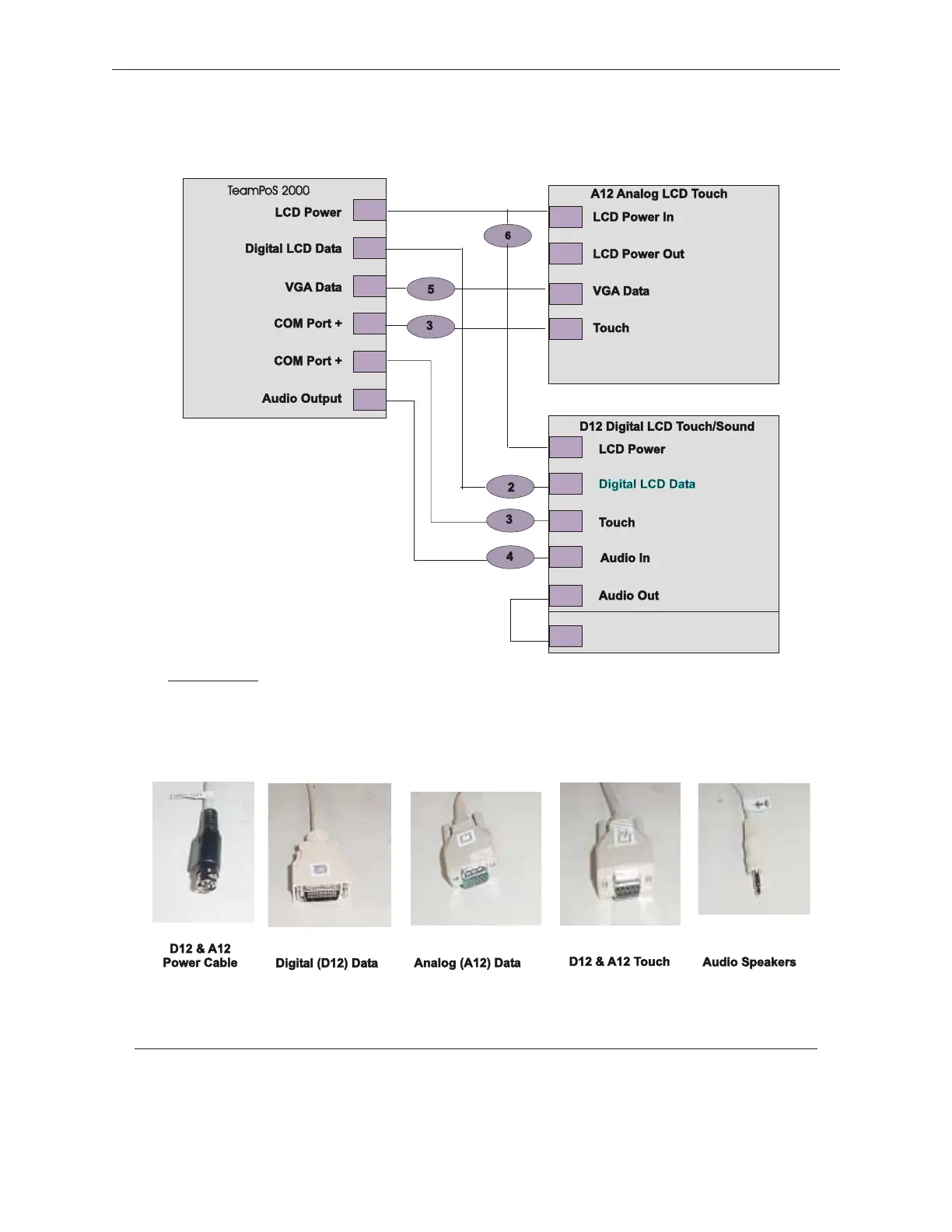

Dispersed TeamPoS 2000 with Digital LCD with Touch and Speaker Options
and Analog LCD with Touch Option only
+
LCD Cables (identical connectors at both ends of cable)
90000291 Rev 3.0 5-59
TeamPoS 2000 MAINTENANCE MANUAL
Note: Maximum
distance between
control unit and each
LCD is 5 meters with
5 meter cables.
Maximum distance
between LCDs is 10
meters with 5 meter
+ The application sosftware will determine where the touch panels connect to the TeamPoS 2000. The touch cables can
be connected to one of the PC board's COM ports or any male 5VDC connector on the Retail I/O Board (Ports 1, 2 or 5) or
TeamCOMBO Board (Port 1 or 2).
