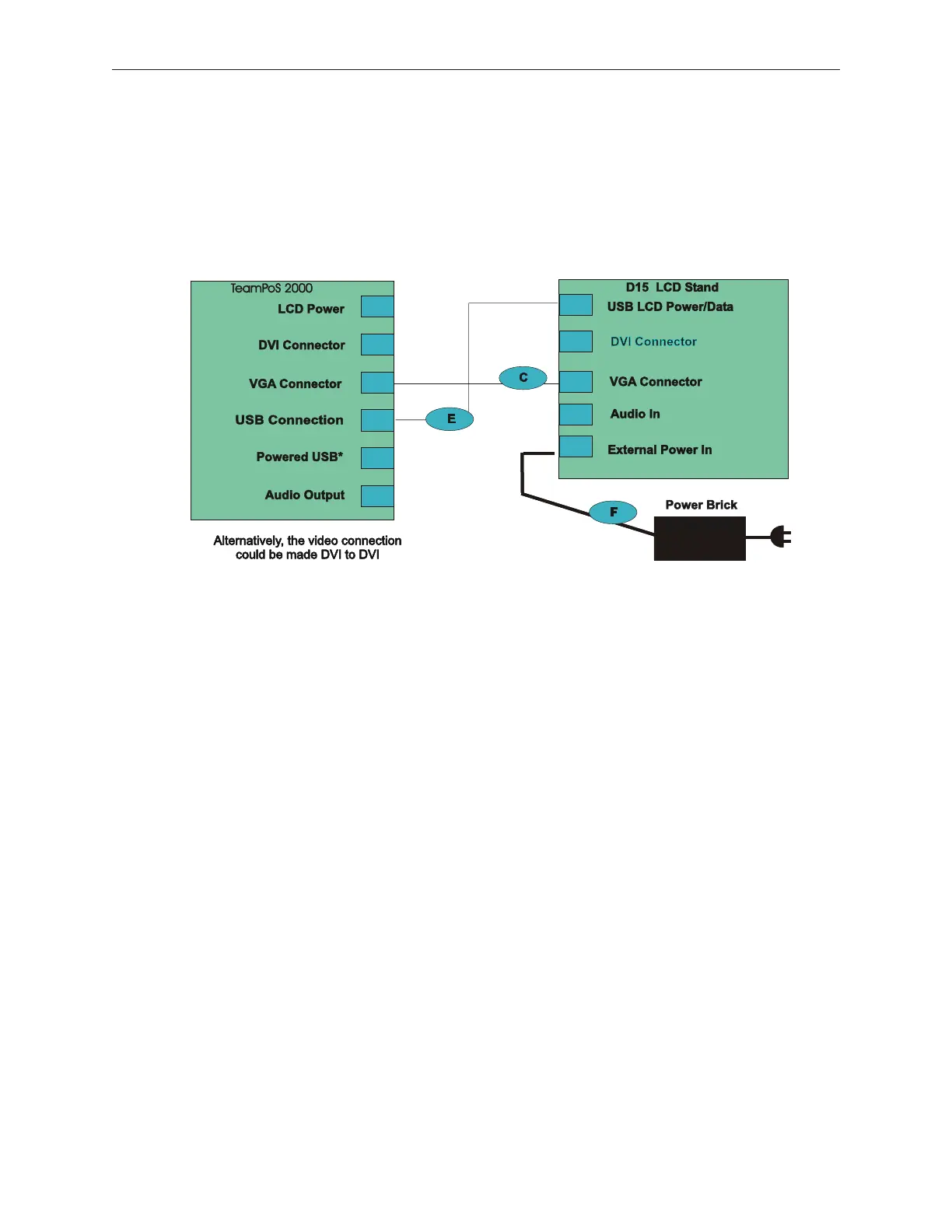

The Retail I/O (90000161) and TeamCOMBO (90000273) boards do not have sufficient
power to drive the D15 LCD and in this configuration need to use a power brick. The
data connection (touch, MSR and/or keypad) is made using an A-to-A USB connector
(male-to-male). One end is plugged into any open-powered USB port on the I/O board or
to one of the motherboard standard USB ports and the other end is plugged into any open
USB port on the I/O board or one of the standard USB ports on the motherboard.
TeamPoS 2000 & Retail I/O Board
Touch and/or MSR and/or Keypad
5-42 Rev 3.0 90000291
