Chapter 4 Connection to the External Devices CO2 Concentration Data Input
Connection of PulsioFlex

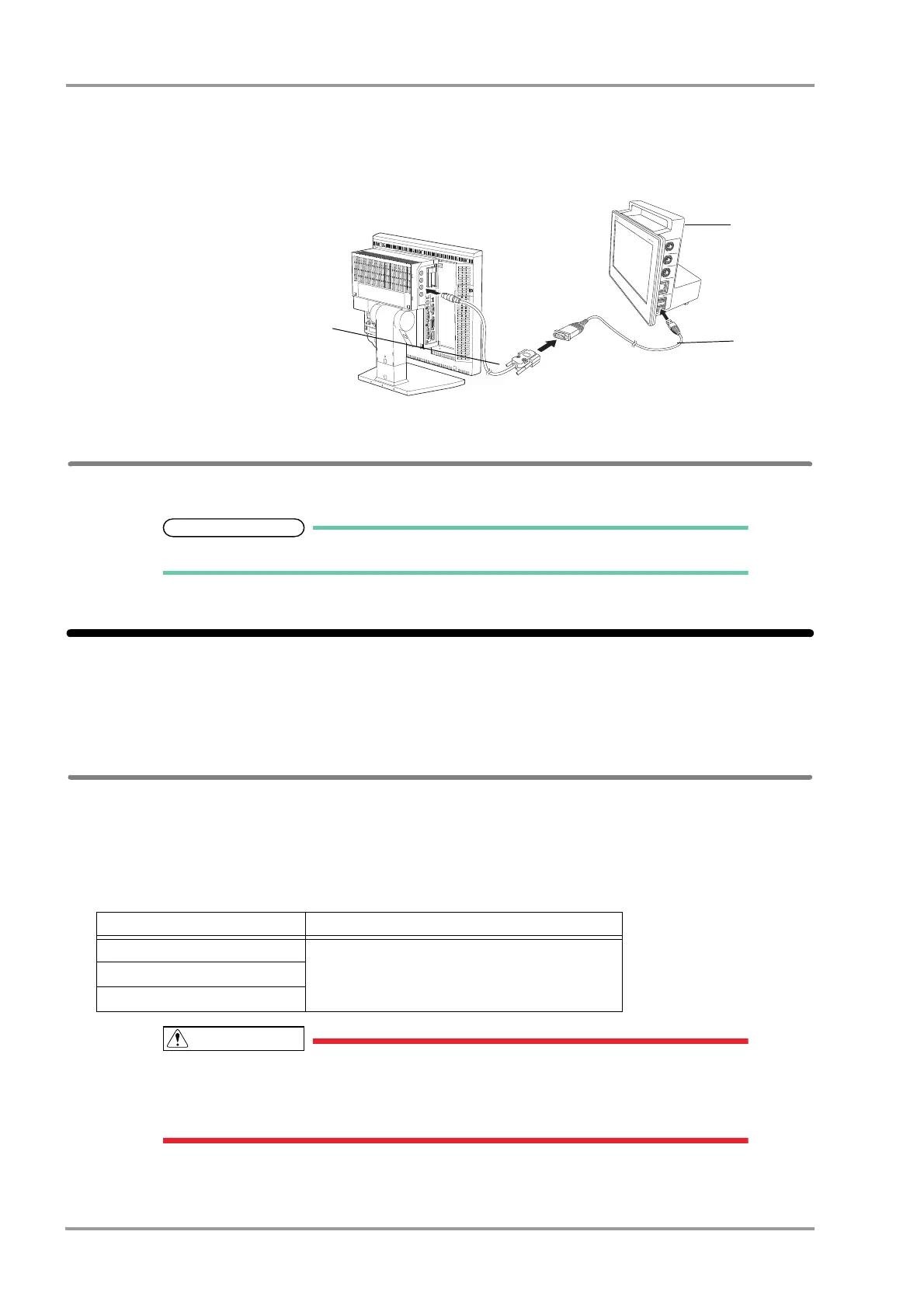

1Connect the PulsioFlex to the DS-8500 system.
1 CJ-725
2 PulsioFlex
3 USB-to-RS-232C
Connector Cable
(UC-232A, ATEN)
External Device Setup
To display the measurement data, the connecting device type needs to be selected.
REFERENCE
 Refer to the following procedure. (

"External Device Setup" P4-16)
CO
2
Concentration Data Input
By connecting the Multigas Unit (MGU-800/810 series), Gas Unit I/F (HPD-800/HPD-810), or CO
2
Gas Unit (HCP-
800/HCP-810), waveform and numeric data of CO
2
concentration can be monitored on the DS-8500 System.
Connecting the MGU-800/MGU-810
The MGU-800/810 series Multigas Unit can be connected to the DS-8500 system via U-LINK connector.
By connecting the Multigas Unit (MGU-800 series), CO
2
, anesthetic agent, O
2
, N
2
O concentration measurement
performed by the sidestream method can be monitored.
By connecting the MGU-810 series, spirometry measurement can be additionally monitored.
CAUTION
 Ventilator and Multigas Unit (MGU-810 series) cannot be connected simultaneously.
 The Anesthesia Delivery System (FLOW-i) and Multigas Unit (MGU-800/810 series) cannot
be connected simultaneously.
Multigas Unit Unit Connection Cable
MGU-801P/MGU-811P
CJO-09SS0.3, CJO-09SS1.5, CJO-09SS5MGU-802/MGU-812
MGU-803/MGU-813
