Chapter 4 Connection to the External Devices Setup for the External Device Connection
Setup for the External Device Connection
This section explains about the external device connection setup.
External Device Setup

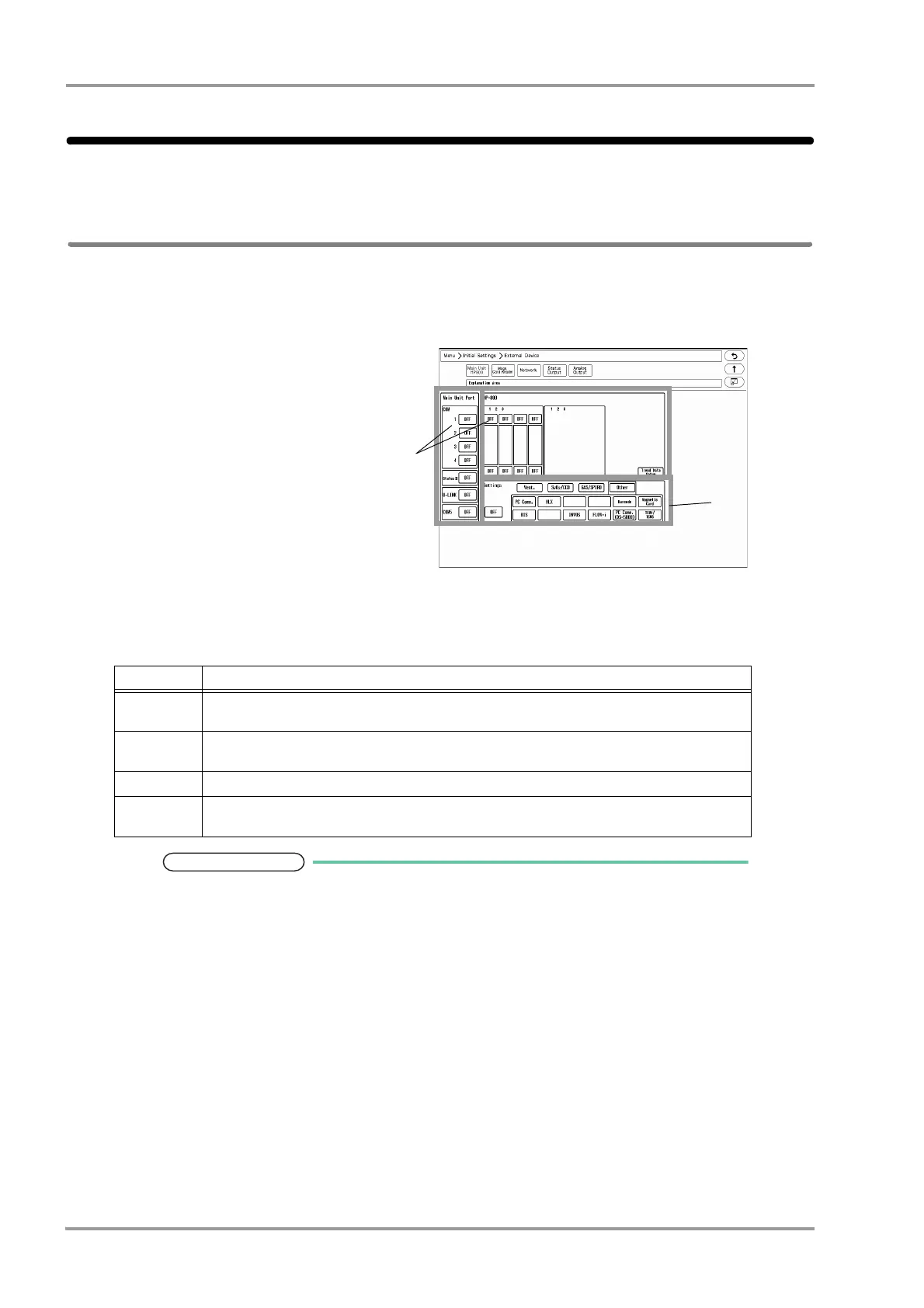

1Press the [Menu], [Initial Settings], [External Device] keys.
The "External Device" setup menu will be displayed.
1 Select the connecting port for main unit or
HP-800.
2 Select the connecting equipment from the
displayed selection.
By selecting [Vent.], [SvO
2
/CCO], [GAS/
SPIRO], [Other] from the upper area, the
corresponding selection will be displayed at
the lower area.
[Vent.]: SV-900, SV-300, SERVO-i/s,
SERVO-U/n/air, PB, Evita
[SvO
2
/CCO]: Vigilance, PiCCO, PulsioFlex
[GAS/SPIRO]: MGU-800, MGU-810
[Other]: PC Comm., HLX, Barcode, Magnetic
Card, BIS, INVOS, FLOW-i, PC Comm. (DS-5000), TCM4/TCM5
NOTE
 When connecting the cable, make sure that the power of this system and the external device
is turned OFF.
 When the external device setup is changed, make sure that this system and the external
device is properly communicating.
 If communication with the external device is already established through the corresponding
port, it is necessary to disconnect the communication in order to change the selection on this
menu.
 When connecting the VELIA, ASTRAL, VS ULTRA, select [SV-900] under [Ventilator].
 The external devices other than Vigilance, BIS, INVOS cannot be set to multiple ports. If the
setting is duplicated, the other port will be automatically set to [OFF].
 If the same external device is set to multiple ports, it may take time to identify the device.
 Vigilance, PiCCO, and PulsioFlex cannot be used simultaneously.
 FLOW-i and MGU-800/MGU-810 cannot be used simultaneously.
 FLOW-i and ventilator cannot be used simultaneously.
Selectable External Device for Each Port
Port Selectable External Device
COM1 to
COM4
Vigilance, PiCCO, PC Comm., HLX, Barcode, Magnetic Card, BIS, INVOS, Flow-i, PC Comm. (DS-
5000), PulsioFlex, TCM4/TCM5
Status II SV-900, SV-300, SERVO-i/s, SERVO-U/n/air, Velia, Ultra, Astral, PB, Evita, Vigilance, PiCCO, BIS,
INVOS, FLOW-i
U-LINK MGU-800, MGU-810
HP-800 SV-900, SV-300, SERVO-i/s, SERVO-U/n/air, Velia, Ultra, Astral, PB, Evita, Vigilance, PiCCO, BIS,
INVOS, FLOW-i
