1-4
Chapter 1 Installation of the Unit System Construction

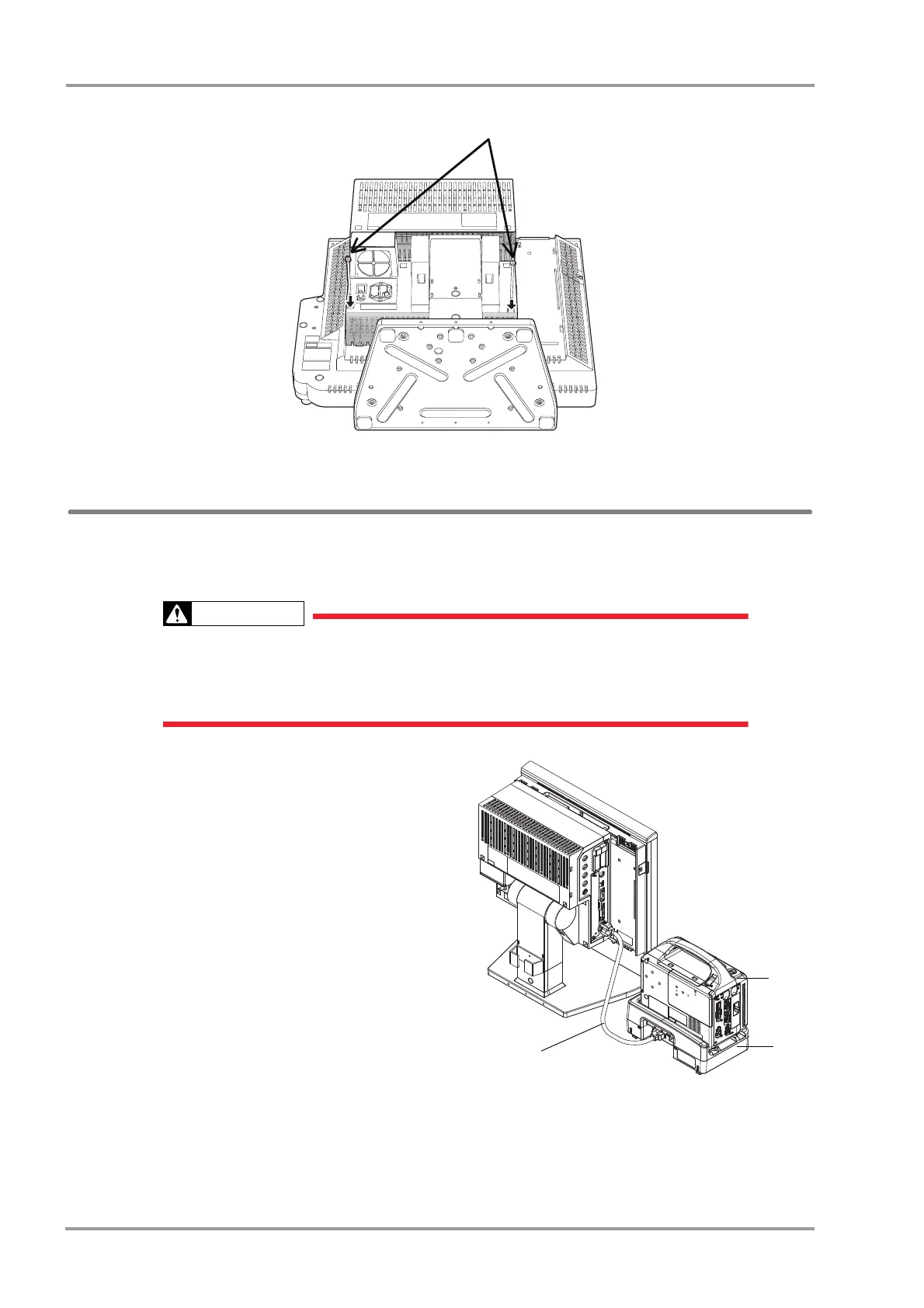

4Fix 2 parts on the back side with accessory screws (Double Washer Sems Screw: M4x65).
Connecting the AC Unit and CO
2
Gas Unit
DS-8007 Adapter (DSA-82)
The preparation to connect the DS-8007 series to the host monitor via DSA-82 is explained below.
WARNING
 The power is supplied from the host monitor.
 When the DS-8007 is connected to the host monitor using the DSA-82, a voltage drop may
occur depending on the cable connection condition which causes the charging process to
temporarily cease or cease before completion.
1Connect the host monitor and the DSA-82 with
module connection cable (CJO-08SSxx).
1 CJO-08SSxx
2 DS-8007
3DSA-82
1
2
3
