2-7

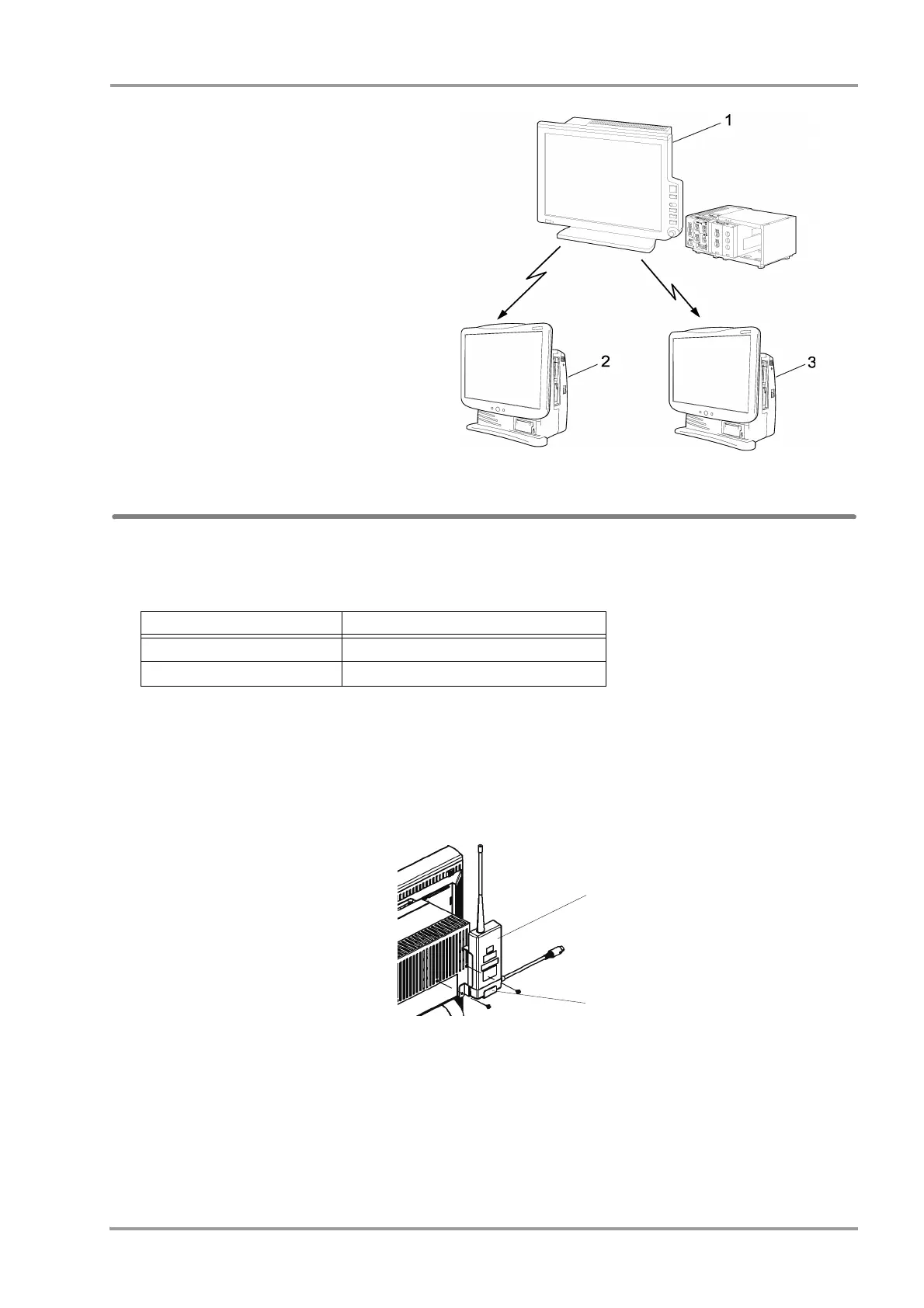

Chapter 2 Network System Construction Wireless Network
1 Bedside Monitor
DS-8500 System
2 Central Monitor
DS-7600 Series
3 Central Monitor
DS-7700 Series
Module Attachment and Serial Communication Setup
To attach the telemetry transmitter module to the DS-8500 System, a holder which is corresponded to each module
is required.
Attaching the Telemetry Transmitter Module
To attach the telemetry transmitter module to the main unit (DSC-8500 series), optional HLX Holder is required.
1Assemble the OAO-40A and telemetry transmitter module, then attach them to the DSC-8500 using the
accessory screws.
1 Telemetry Transmitter Module
2 HLX Holder
Telemetry Transmitter Module Attachment Holder
HLX-561 OAO-40A
HLX-801/HLX-801(G) OAT-8185A (HLX-801 Mounting Bracket)
1
2
