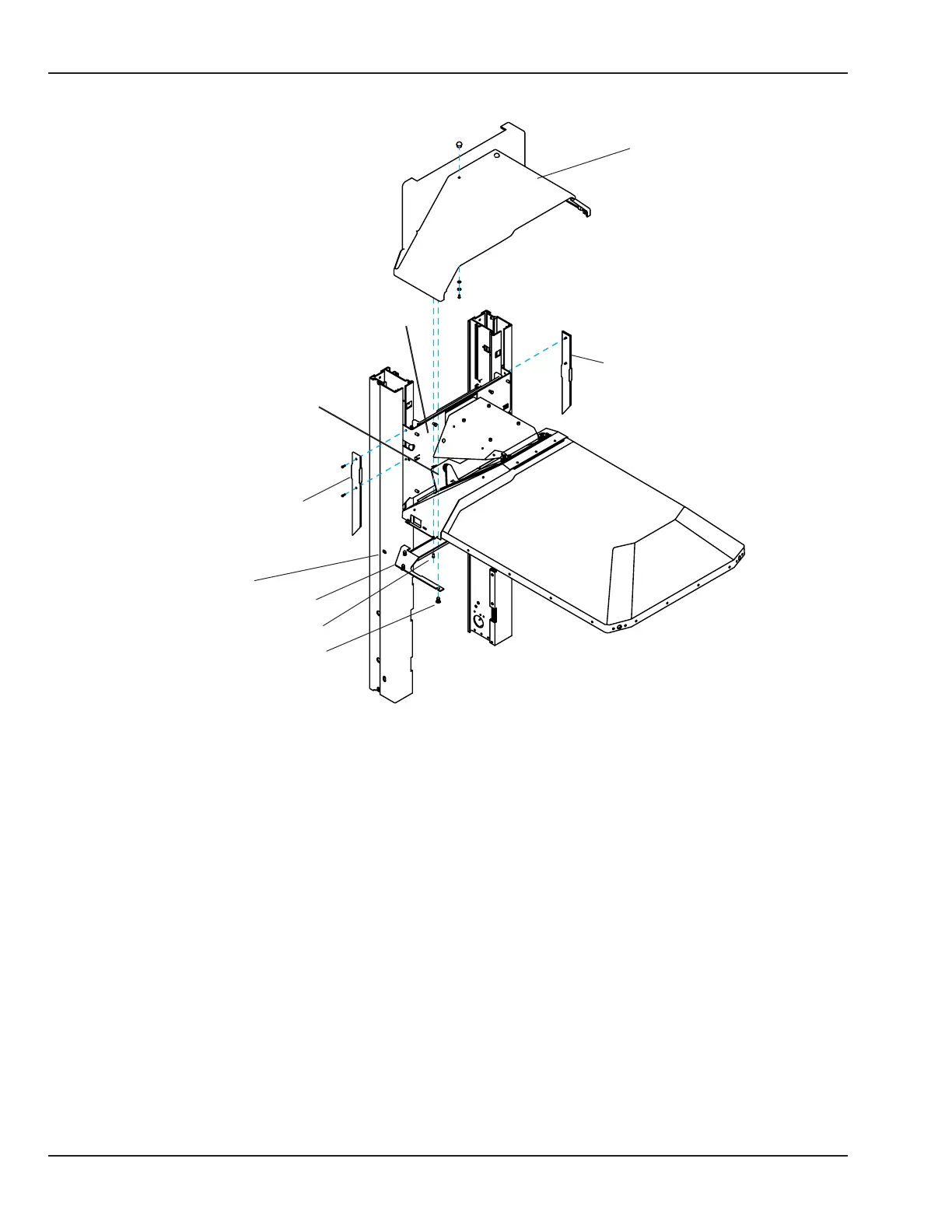

GE Giraffe OmniBed - Figure 5-1 Heater Housing Cover and Soffit

Heater housing cover
Canopy
Sot
Arrow clip
Housing cover screw
Right inside cover
Left inside cover
Intermediate
oblong locking hole
Heater door bracket
Canopy bracket
Figure 5-1 Heater Housing Cover and Sot
b. Using a 2.5 mm hex key, remove the four screws that secure the heater housing cover to the heater
door bracket. Remove the heater housing cover. Save the four screws and heater housing cover for
later reinstallation.
