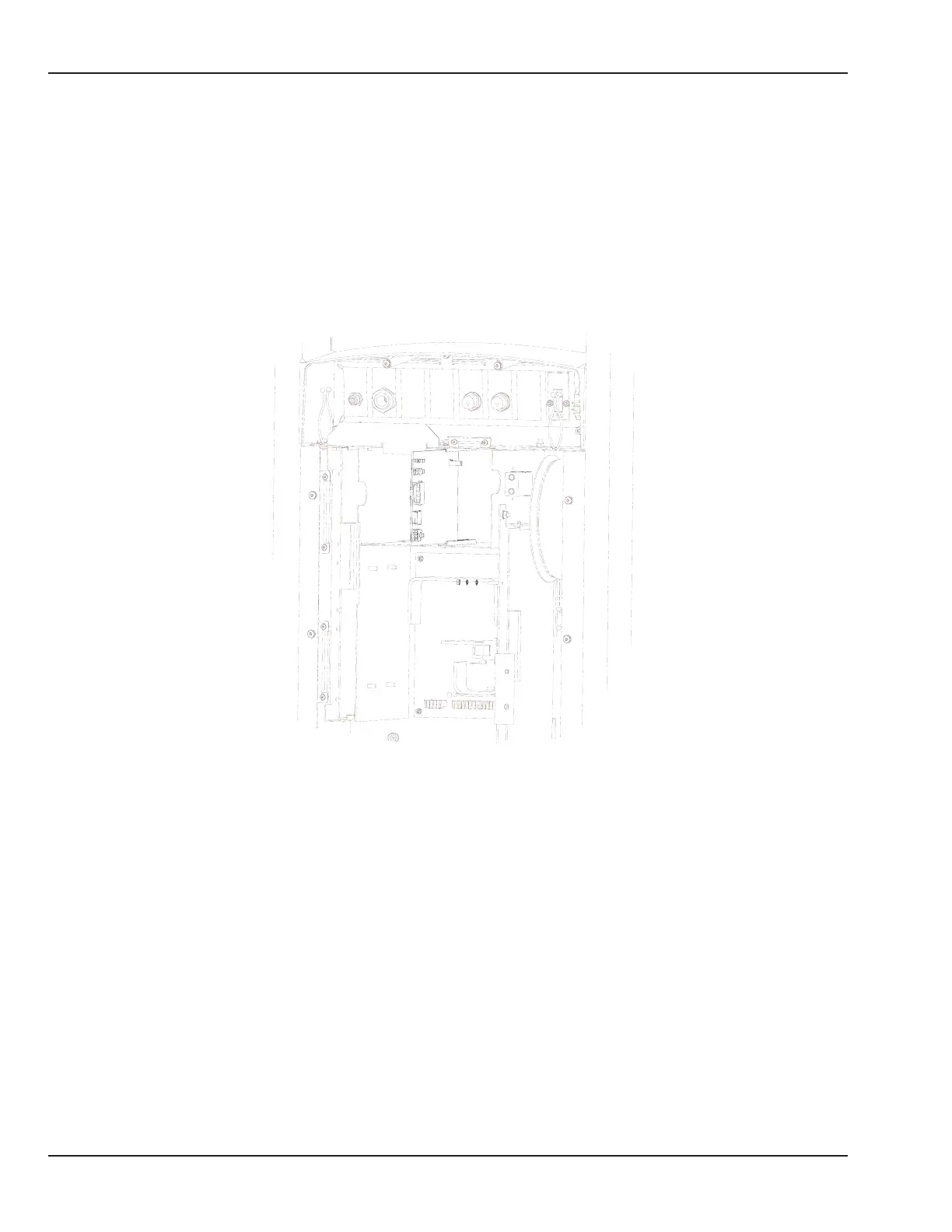

Figure 6-28 Servo Control Oxygen PC Board
1. Servo Oxygen PCB ............................................................6600-0233-850
2. Card guide, black ...............................................................6600-1064-400
3. Card guide, white...............................................................6600-1183-400
4. Nut, M3 ...................................................................................6600-0711-403
5. Lock washer, int. tooth ....................................................6600-0713-431
Parts not shown
EPROM (U6) ...........................................................................6600-0255-850
In-line fuse cable* .............................................................6600-0618-700
ESU label (located on probe panel) ...........................6600-2540-101
*Fuse is not replaceable; you must order cable to replace fuse.
