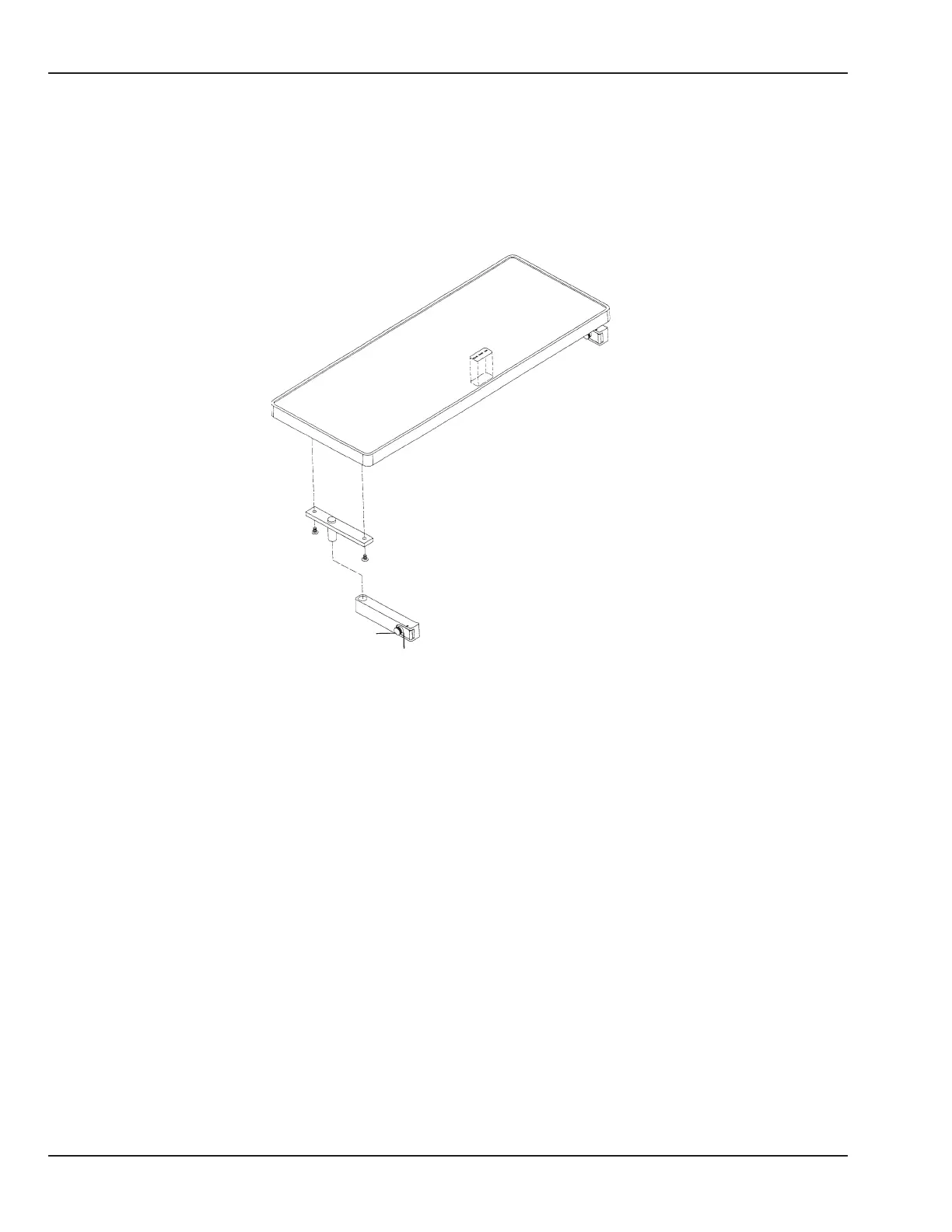

Figure 6-32 Monitor Shelf (6600-0824-800)
1
2
3
4
5
6
7
1. Shelf (order item 2 when replacing shelf)...............6600-0481-501
2. Weight limit label ...............................................................6600-1941-101
3. Shelf support .......................................................................6600-0811-501
4. Mounting block assembly..............................................6600-0290-800
5. Washer ...................................................................................0202-0095-300
6. Knob ........................................................................................0217-5335-300
7. Screw, 1/4 - 20 x 5/8 ........................................................6600-0394-400
204 6600-0343-000 104 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
