GE Giraffe OmniBed Service Manual

5.9.5 Chassis Replacement
Refer to “Figure 5-50 Bed Disassembly”, “Figure 5-51 Heat Sink and Fan”, “Figure 5-52 Fan Motor”, “Figure 5-54
Chassis Bottom Cover”, and “Figure 6-13 Upper Chassis”.
Chassis cover
Wire raceway cover
Chassis

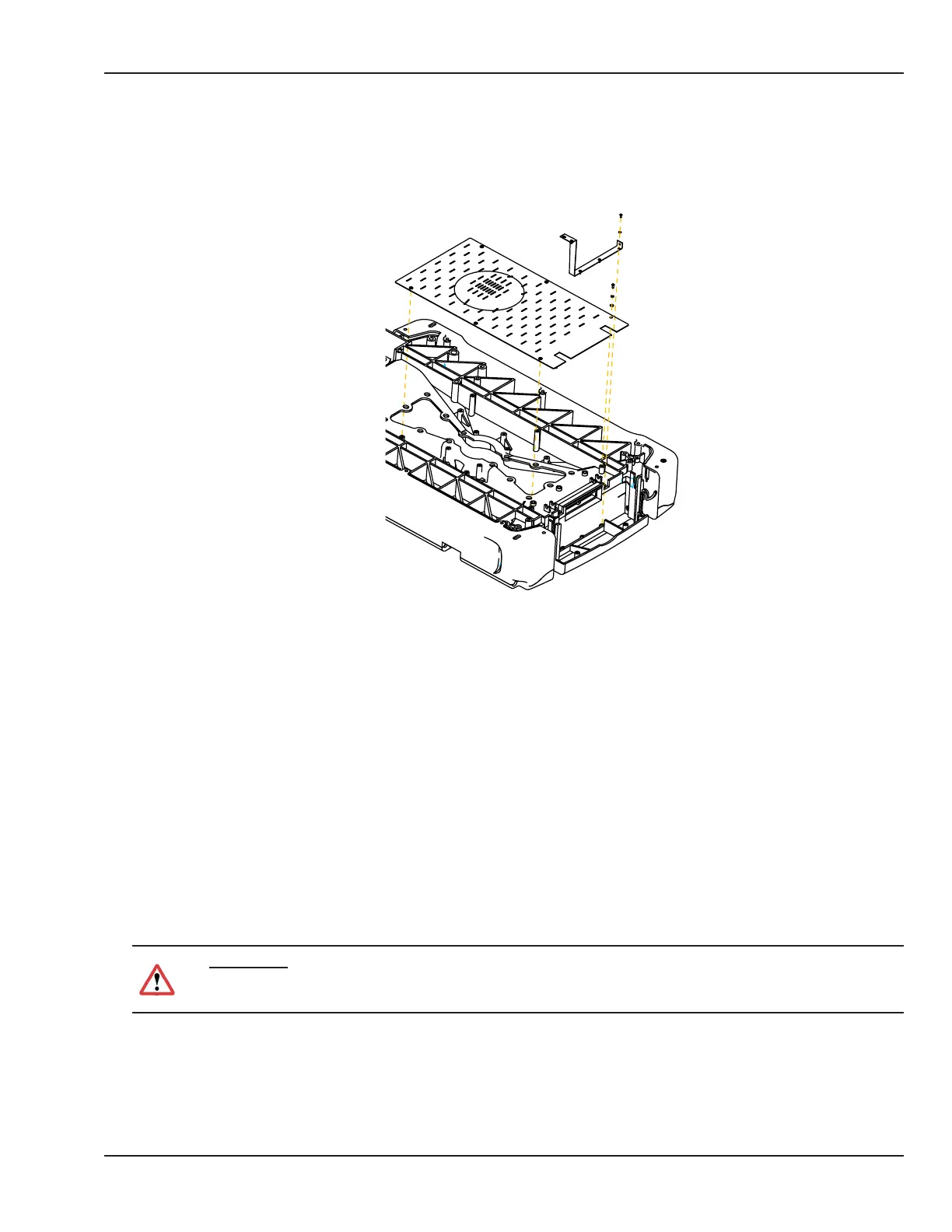

Figure 5-54 Chassis Bottom Cover
1. Remove the bedsides, rotating bed, translation deck, tilt platform and pan.
2. Disconnect the compartment probe jack from the probe panel.
3. Remove the bottom chassis cover. (Refer to section 5.9.1.) Remove the two side chassis covers (3 mm hex
key).
4. Remove the front wall.
5. Disconnect the wiring harnesses.
6. Remove the two screws at the bottom corners that secure the probe panel to the enclosure. (Refer to
section 5.13.2.)
WARNING:
Be sure the front of the chassis is supported before removing the screws from the bracket to
prevent the chassis from falling.
7. While supporting the chassis, remove the 5 bolts on either side of the bracket casting that secure the
chassis to the bracket and remove the chassis.
© 2001 by Datex-Ohmeda, Inc.. All rights reserved. 6600-0343-000 104 129
Chapter 5: Repair Procedures

GE Giraffe OmniBed Specifications

General

Temperature Control	Yes
Humidity Control	Yes
Servo Humidity Control	Yes
Oxygen Delivery	Yes
Scale	Integrated
Trendelenburg/Reverse Trendelenburg	±12°
Rotating Mattress	No
X-ray Compatibility	Yes
Mobility	Yes, with casters
Category	Incubator
Humidity Range	30% to 95%
Oxygen Hood	Yes
Access Ports	Multiple
Modes	Air Mode, Skin Mode
Power Requirements	100-240V AC, 50/60 Hz
