7. Install corner parts:
a. Using a Phillips screwdriver, install the corner pin, gasket, and corner receiver on the upside-down
canopy at each south corner (the corners opposite the heater door cutout). The corner receiver rib
should be closest to the canopy edge.
INSIDE OF
CANOPY
OUTSIDE OF
CANOPY
M4x16 athead Phillips screw
with pre-applied nylon patch
Corner pin
Corner pin gasket
Corner cover receiver
South corner cover
Canopy
Rib

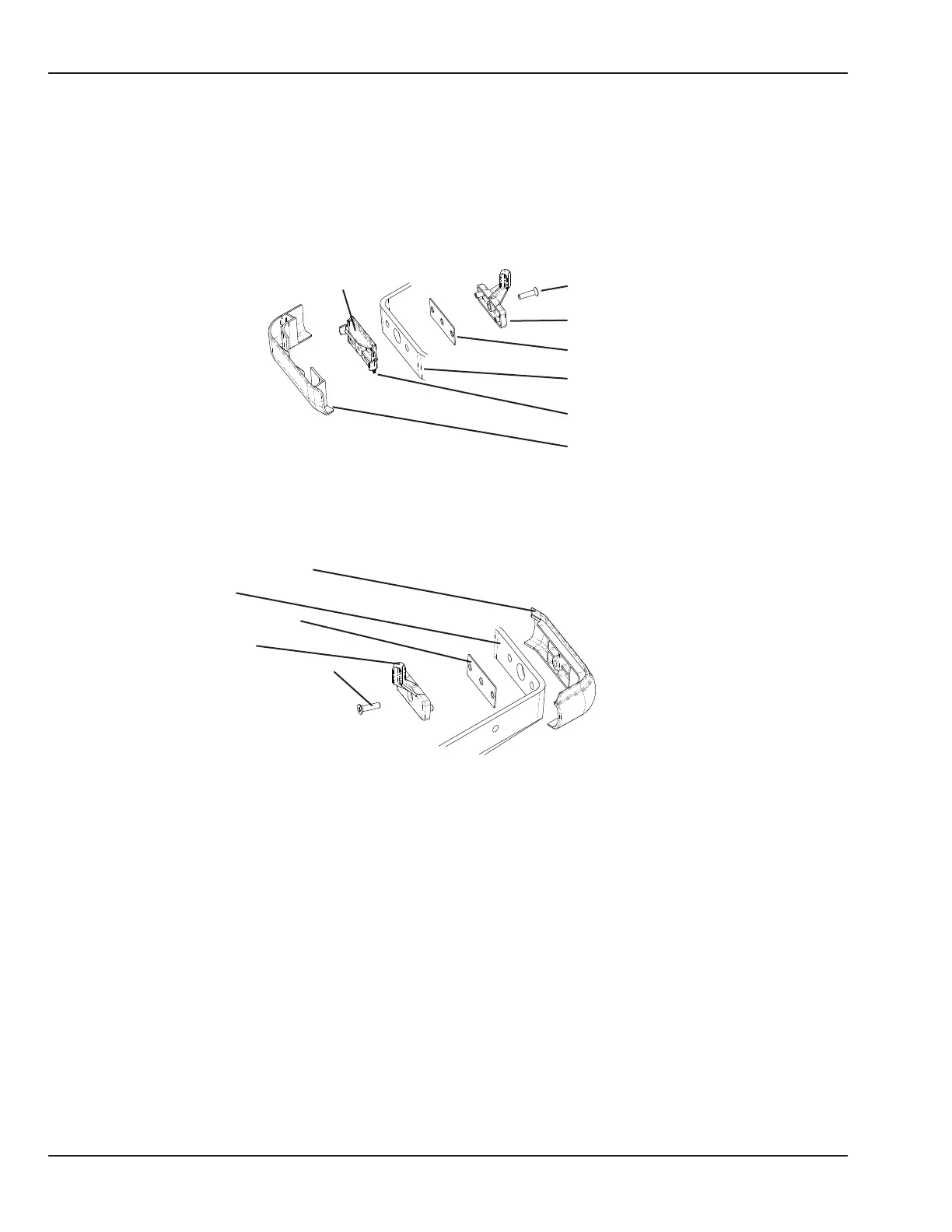

Figure 5-17 South Corner Parts
b. Using a Phillips screwdriver, install the corner pin, gasket, and corner ange on the upside-down
canopy at each north corner (the corners nearest the heater door cutout):
OUTSIDE OF
CANOPY
INSIDE OF CANOPY
M4x16 athead Phillips
screw with pre-applied
nylon patch
Corner pin
Corner pin gasket
North ange corner
Canopy
Figure 5-18 North Corner Parts
c. Make sure that all pins point up. (The pins should point up when the canopy is upside-down, down
when the canopy is right-side up). Make sure all gaskets are on the inside.
8. Reinstall the canopy on the unit. This step may require the assistance of another person, as in Figure 5-6:
a. Using a 2 mm hex key, screw the set screws in the east and west rails at the E and W marks until they
are ush with the rails.
b. Turn the canopy right side up.
c. Insert the canopy north end, with the four set screws protruding, into the heater door bracket on the
unit.
d. Hold the canopy in place and hold the threaded inserts inside the canopy while using a 2 mm hex key
to install the three button head screws across the top of the canopy.
84 6600-0343-000 104 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 5: Repair Procedures
