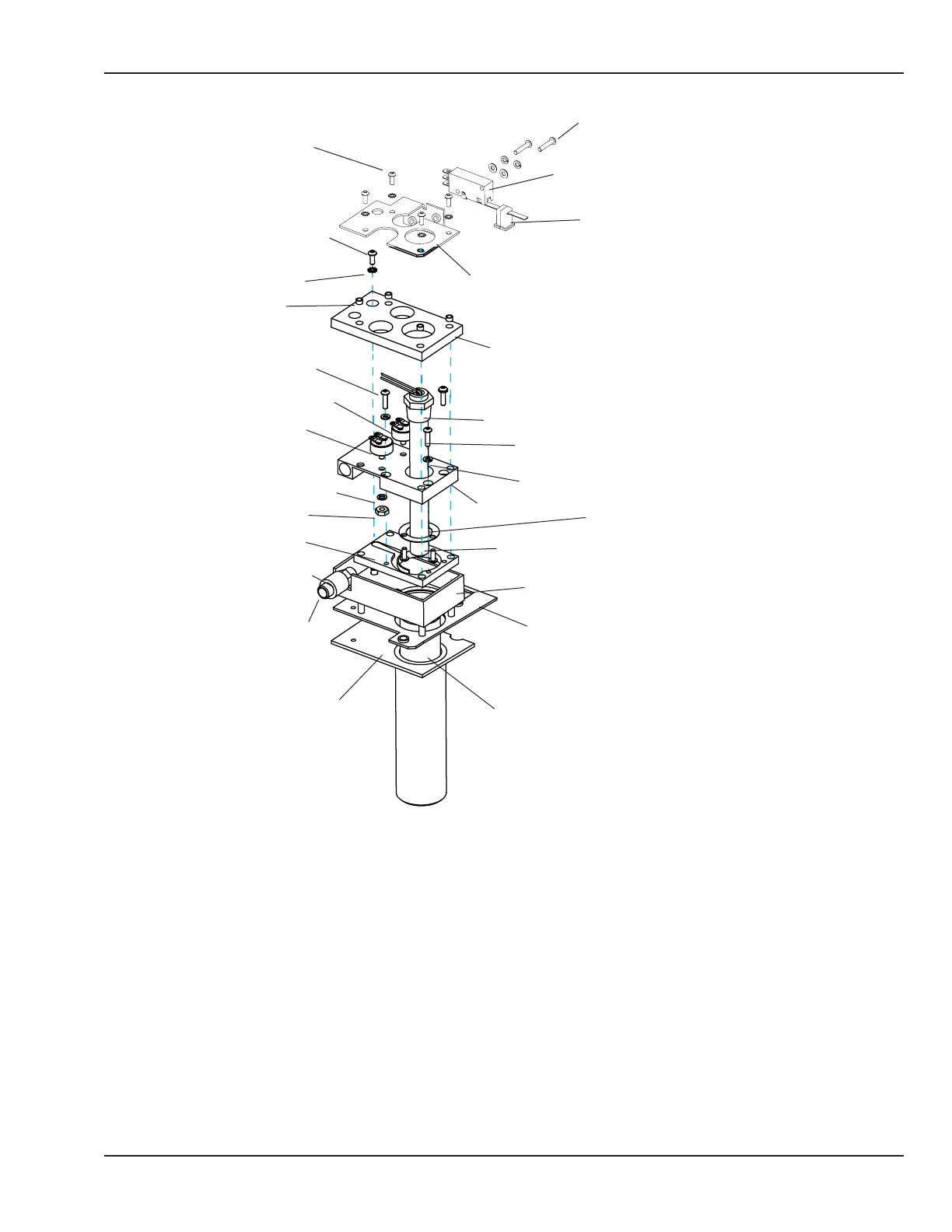

Insulating cylinder
Heater cartridge
Add water thermostat
Safety thermostat
Reservoir switch
Top bracket
Top gasket
Heater mount
Heater cartridge sheath
Spacer
Ramp block
M3 x 12 Phillips head screw
(Attaches ground wire with
two star washers)
Reservoir switch button
Steam outlet
Silicone tube
M3 x 10 Phillips head coated screw
Split ring washer
6-32 Hex nut
Split ring washer
M3 x 10 Phillips
head coated screw
Protective insert
M3 x 10 socket
head cap screw
Star washer
Bottom gasket
Bottom bracket
Reservoir seal
M3 x 16 Phillips head screw
M3 x 8 Phillips head coated screw
Figure 5-56 Humidier Parts
12. Remove the 3 screws in the heater cartridge sheath.
13. To remove the heater cartridge, unscrew it from its threaded hole.
14. The thermostats can be replaced by removing the nuts securing them to the ramp block.
If either thermostat or the heater cartridge is being replaced, check all components (especially the plastic
ones) for signs of heat damage or corrosion. We recommend replacing the sheath when replacing the
heater cartridge.
© 2001 by Datex-Ohmeda, Inc.. All rights reserved. 6600-0343-000 104 135
Chapter 5: Repair Procedures
