1. Open the îš¿rst 4 cable guard latches at the left rail end.
Cable Guard Latch

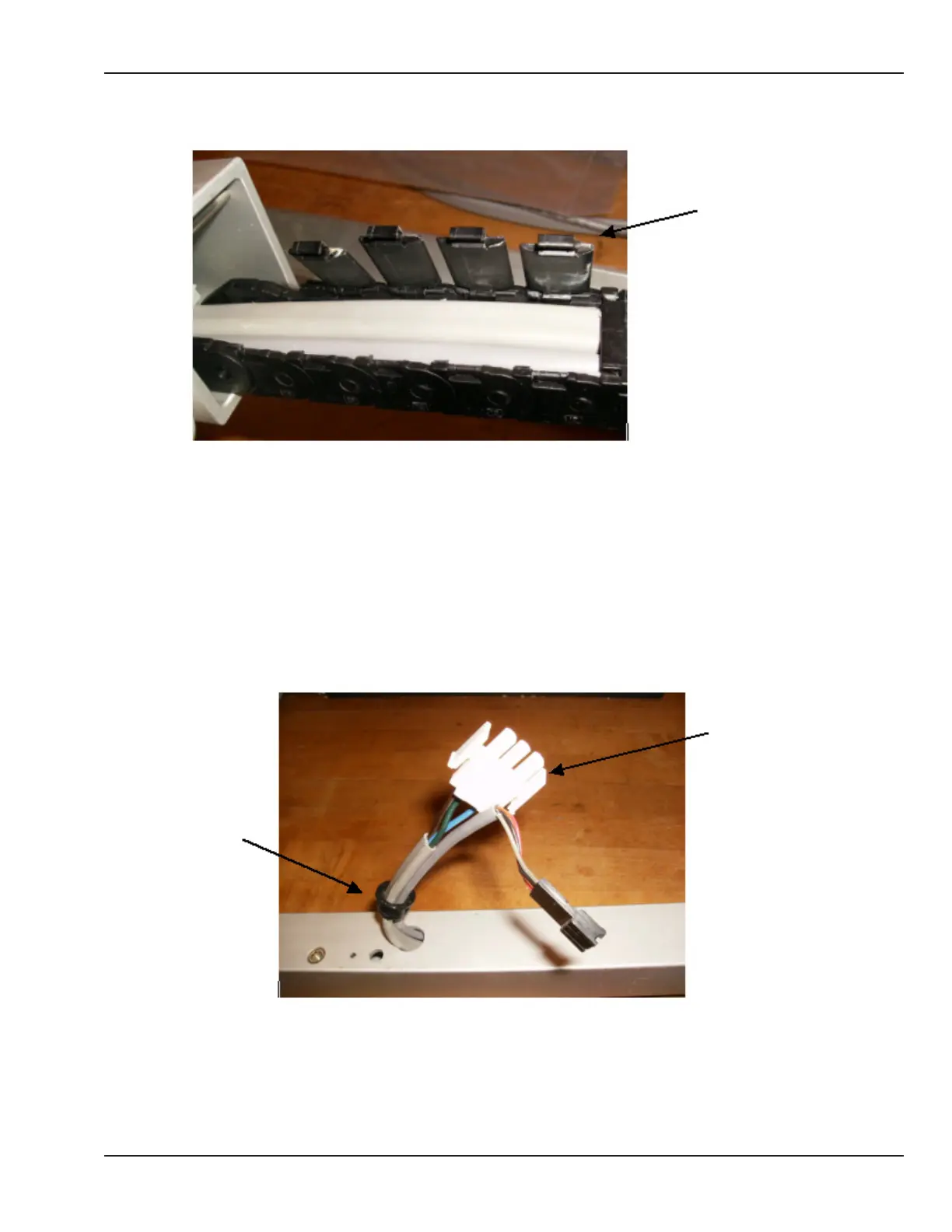

Figure 5-35 Cable Guard Latch
2. Unsnap and remove the end link from the cable carrier.
3. Remove the remaining open links from the cable carrier by unsnapping them from the adjoining link.
4. Carefully cut the cable tie at the end of the left rail (tie secures harness to the carrier).
5. Remove the 3-pin MAT-N-LOK connector (cut wires or extract pins) from the harness on the side of the left
rail.
3-pin MAT-N-LOK
connector
Bushing
Figure 5-36 3-pin MAT-N-LOK Connector and Bushing
6. Remove the bushing on the side of the left rail.
7. Attach a wire or string to this harness to assist in threading the new cable assembly through the rail.
© 2001 by Datex-Ohmeda, Inc.. All rights reserved. 6600-0343-000 104 107
Chapter 5: Repair Procedures
