Hole plug
Lift rail
Conical cap
Smaller hole
Canopy
bracket
Conical cap
Plastic tube
Steel tube
Front cable clip
Side cable clip
Nut
Screw
Screw
Door cable

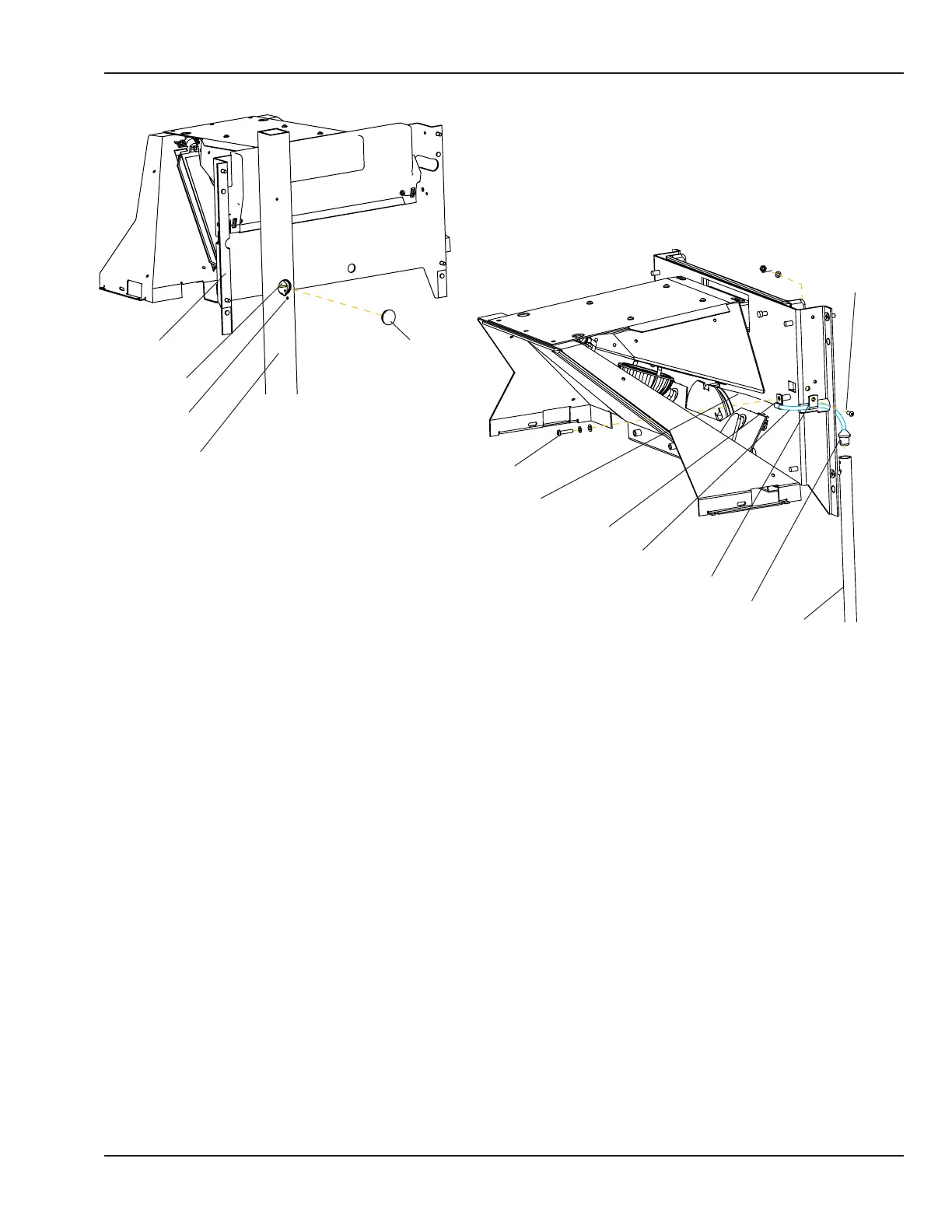

Figure 5-24 Disconnecting Heater Door Cable
1. Lock the rails in the intermediate position by raising the canopy then slowly lowering it until the rail locking
screws align with the horizontal oblong holes in the rails. Lock both rails by turning the screws CCW (4mm
hex key) until they lock the rails in place. Switch o the unit and disconnect the power cord.
2. Using a small straight blade screwdriver, remove the 6 arrow clips that secure the sot beneath the rear of
the canopy and remove the sot.
3. Using a 2.5 mm hex key, remove the 4 screws that secure the heater housing cover to the heater door
bracket and remove the cover.
4. Remove the right inside cover by removing the 2 screws and nuts (2mm hex key, 5.5 mm wrench) that
secure it around the door cable.
5. Remove the steel tube that routes the door cable into the lift rail. Use a 3mm hex key to remove the screw
in the front cable clip. Use a 2.5 mm hex key and 7 mm wrench to remove the screw and nut in the side
cable clip.
6. Disconnect the heater door cable. The cable end is accessed through the two holes on the back of the lift
rail. First pry o the hole plug, then rotate the plastic tube so the hex head screw securing the conical cap
faces the rear. Push a small hex key or screwdriver through the small lower hole in the rail, through the
lower hole in the plastic tube inside the lift rail, and back through the rail on the other side of the tube to
