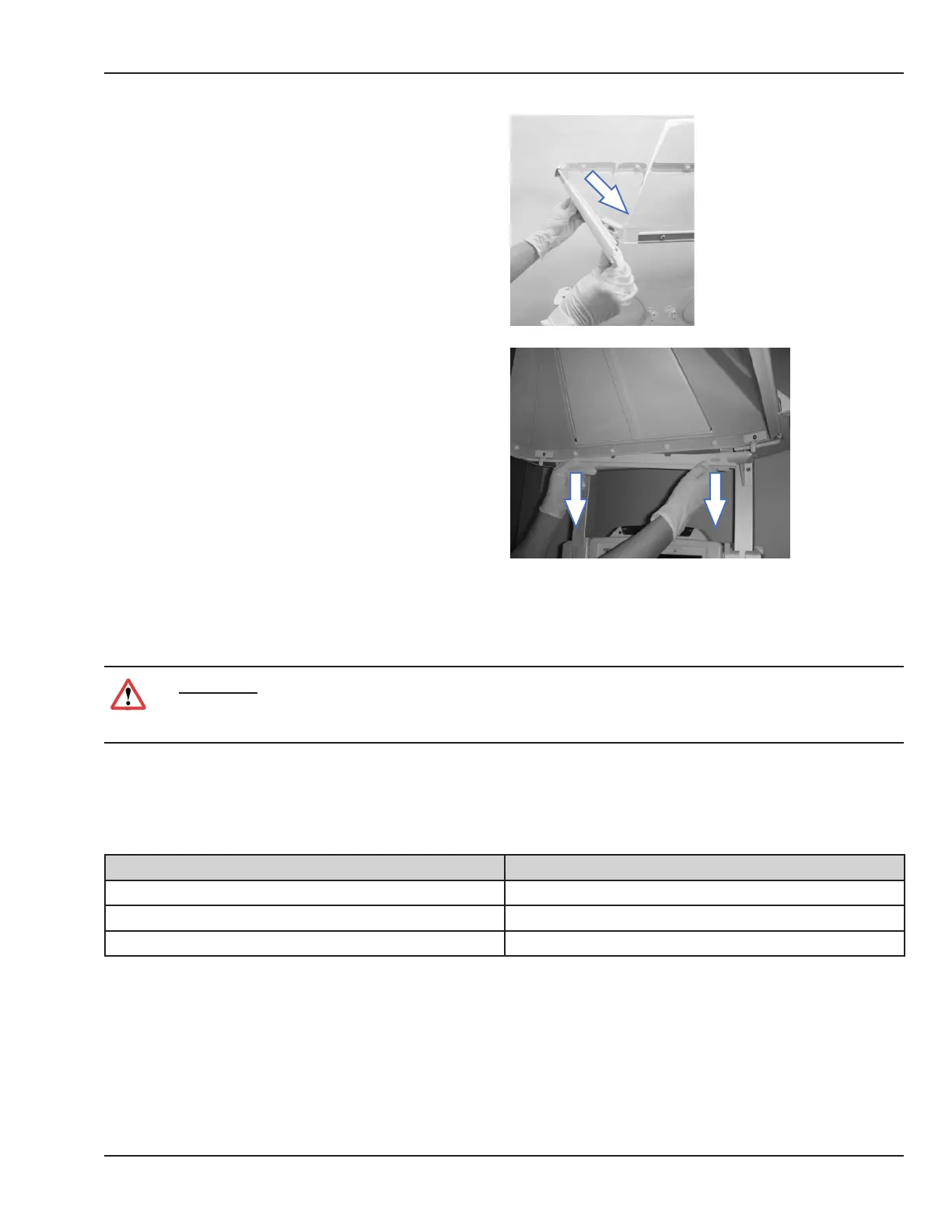

c. Slide the short south seal to the side.
d. Unsnap the notched north seal by pulling
down the ends.
16. Repeat step 10 to reinstall the seals.
17. Perform the checkout procedure in Chapter 2.
WARNING:
After performing any repair or calibration, always perform service checkout procedures before
putting the unit back into service.
5.2.2 Servicing Enhanced Canopy Seals
If your canopy has the enhanced canopy seals, use the following kits to service them:
Kit Part Number
Corner Cover Replacement M1208283
Seal Replacement M1208284
Hardware Replacement M1208285
© 2001 by Datex-Ohmeda, Inc.. All rights reserved. 6600-0343-000 104 89
Chapter 5: Repair Procedures
