GE Giraffe OmniBed - Figure 5-9 Enhanced Seal Parts

At this point you should have the following parts saved:
• Six arrow clips and sot
• Four screws and heater housing cover
• Threaded inserts, three button-head screws, lock washers, and at washers
• Canopy

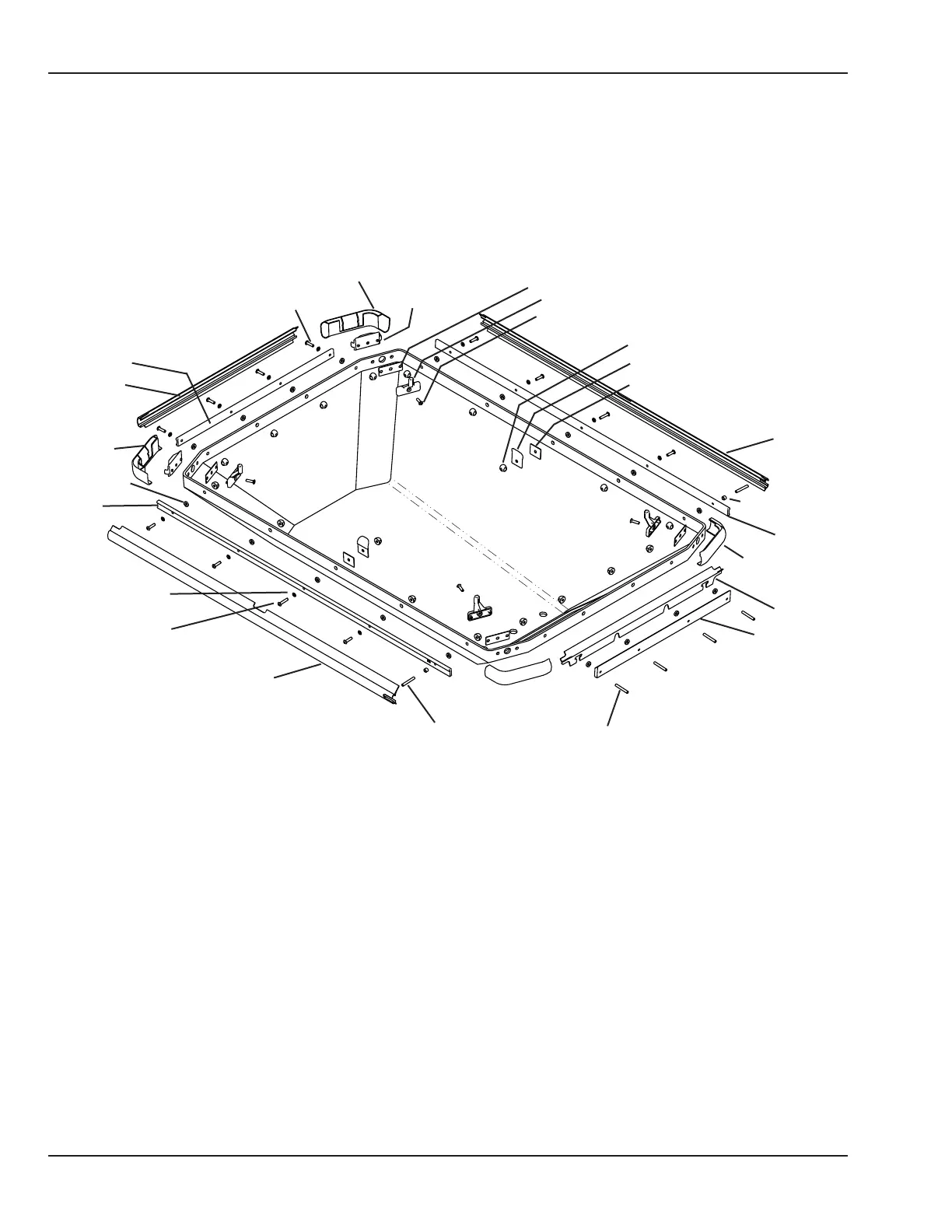

Refer to the following gure while performing the remaining steps in this section:
SOUTH
NORTH
(heater door end)
South seal
North spacer
North seal
NE corner ange
East rail
Rail spacer
East seal
Door support gasket
Door support
M4x16 athead Phillips screw with pre-applied
nylon patch
Corner pin
Corner pin gasket
Corner receiver
SE corner cover
M4x16 buttonhead socket cap
screw
South rail
SW corner
cover
Spacer washer
West rail
NW corner ange
M4x30 sockethead set screw
cup point
West seal
Smooth nut
M4 splitlock washer
M4x20 buttonhead socket cap
screw
Figure 5-9 Enhanced Seal Parts
