SOUTH
NORTH
(heater door end)
Inner south extrusion
Inner north extrusion
Corner pin
South seal
Side seal
Spacer
Set screw
Washer
Nut
Corner ange
North seal

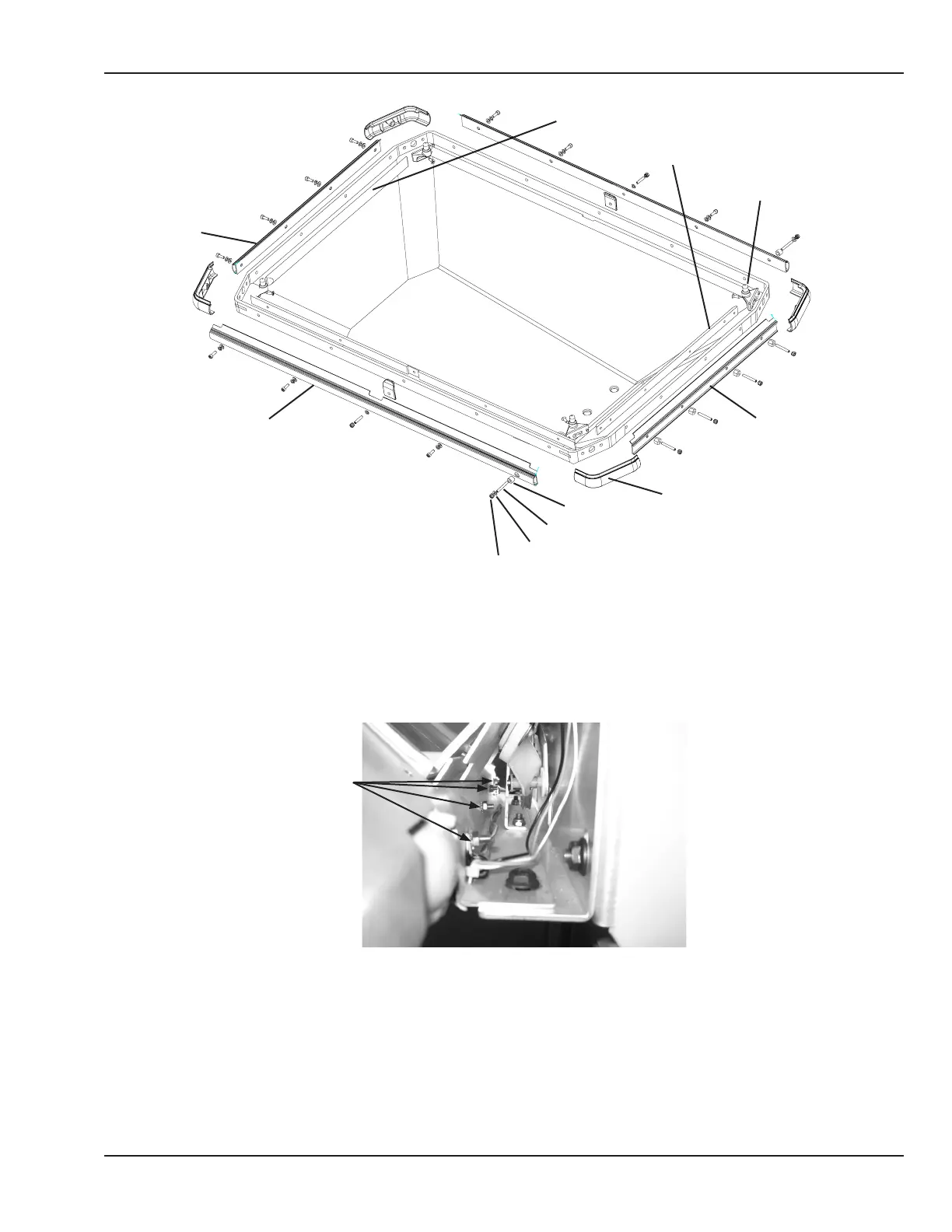

Figure 5-2 Original Seal Parts
c. Using a 2.5 mm hex key or small Phillips screwdreiver, remove and discard the four screws that secure
the corner pins to the four corner anges. Hold the corner pins in place while removing the screws.
Remove and discard the corner pins. Remove and discard the two south corner anges. (Removal of
the north corner anges is described in section 5.2.1.)
Nuts
Figure 5-3 Nuts
d. Using a 7 mm socket or wrench, remove and discard the four nuts and four star washers across the
north end of the heater door bracket that secure the canopy to the heater door bracket. (Two of the
nuts are accessed though the north access holes in the canopy bracket.) Take note where cable routing
clips are secured, for later reassembly.
© 2001 by Datex-Ohmeda, Inc.. All rights reserved. 6600-0343-000 104 73
Chapter 5: Repair Procedures
