GE Giraffe OmniBed - Figure 6-29 Manifold Endcap Safety Valve

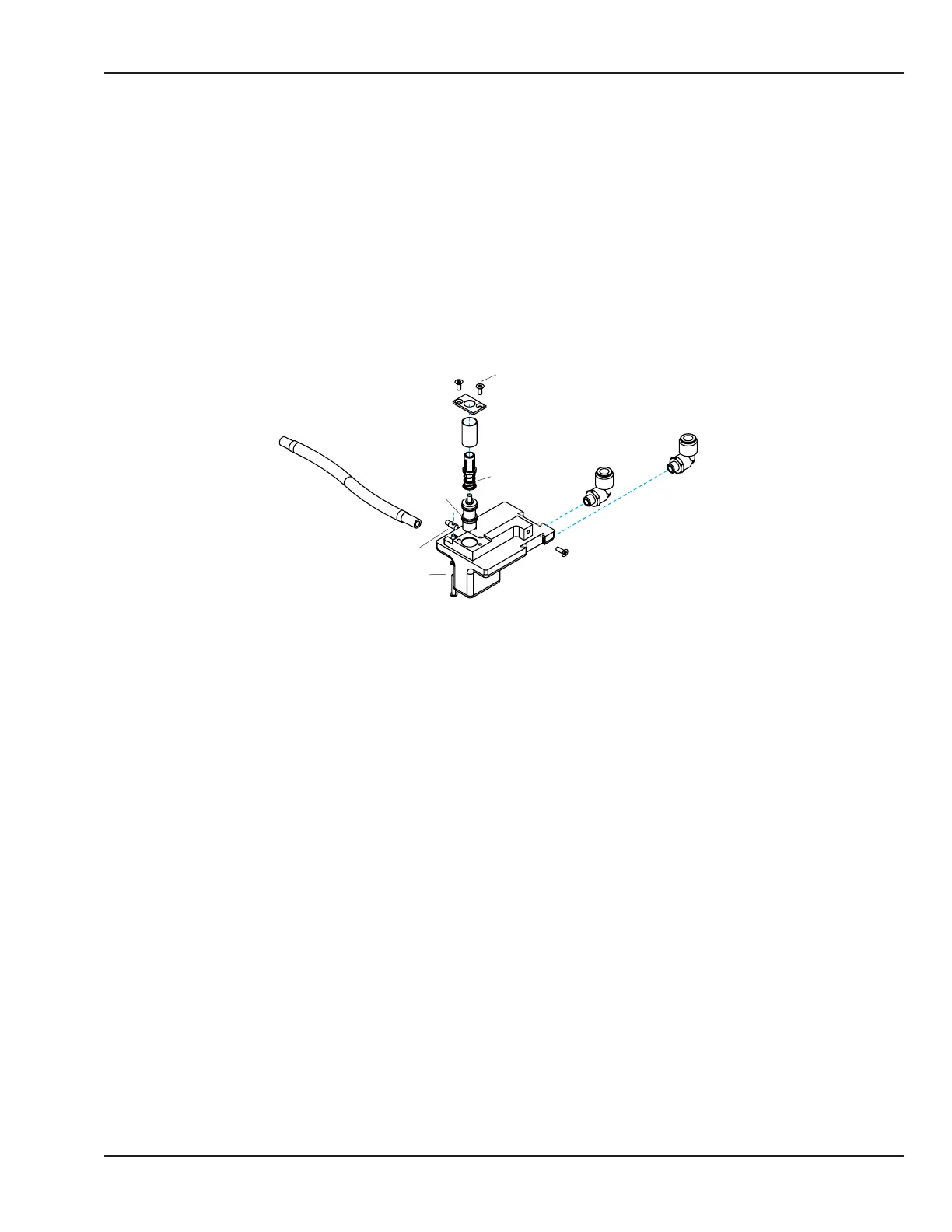

Figure 6-29 Manifold Endcap Safety Valve
1
3
4
5
6
7
8
2
9
10
11
11
12
1. Screw, M4 x 10 t.hd. .......................................................6600-0715-418
2. Split ring washer, M4 ........................................................6600-0713-403
3. Spring Cover ........................................................................6600-2025-500
4. Valve retaining tube .........................................................6600-2016-500
5. Spring kit ...............................................................................6600-0273-850
6. Two-way valve* ..................................................................6600-1272-400
7. Manifold retaining pin .....................................................6600-2013-500
8. Screw, M4 x 25 btn. hd. ...................................................6600-0706-413
9. Manifold endcap ................................................................6600-2012-500
10. Screw, M4 t. hd. ................................................................6600-0708-409
11. Elbow tting 10 x 1/8 NPT .............................................6600-0873-400
12. Tube 10 x 6.5 ID w sheath .............................................6600-0274-850
*When replacing the valve or O-ring, lubricate its two O-rings with Vac Kote (6700-0092-200).
© 2001 by Datex-Ohmeda, Inc.. All rights reserved. 6600-0343-000 104 201
Chapter 6: Illustrated Parts
