3. Route harness along the cable carrier channel and loosely install 4 cable ties. Do not tighten until cable is
adjusted properly. Be sure to install in same orientation as ties removed earlier.
Correct Incorrect

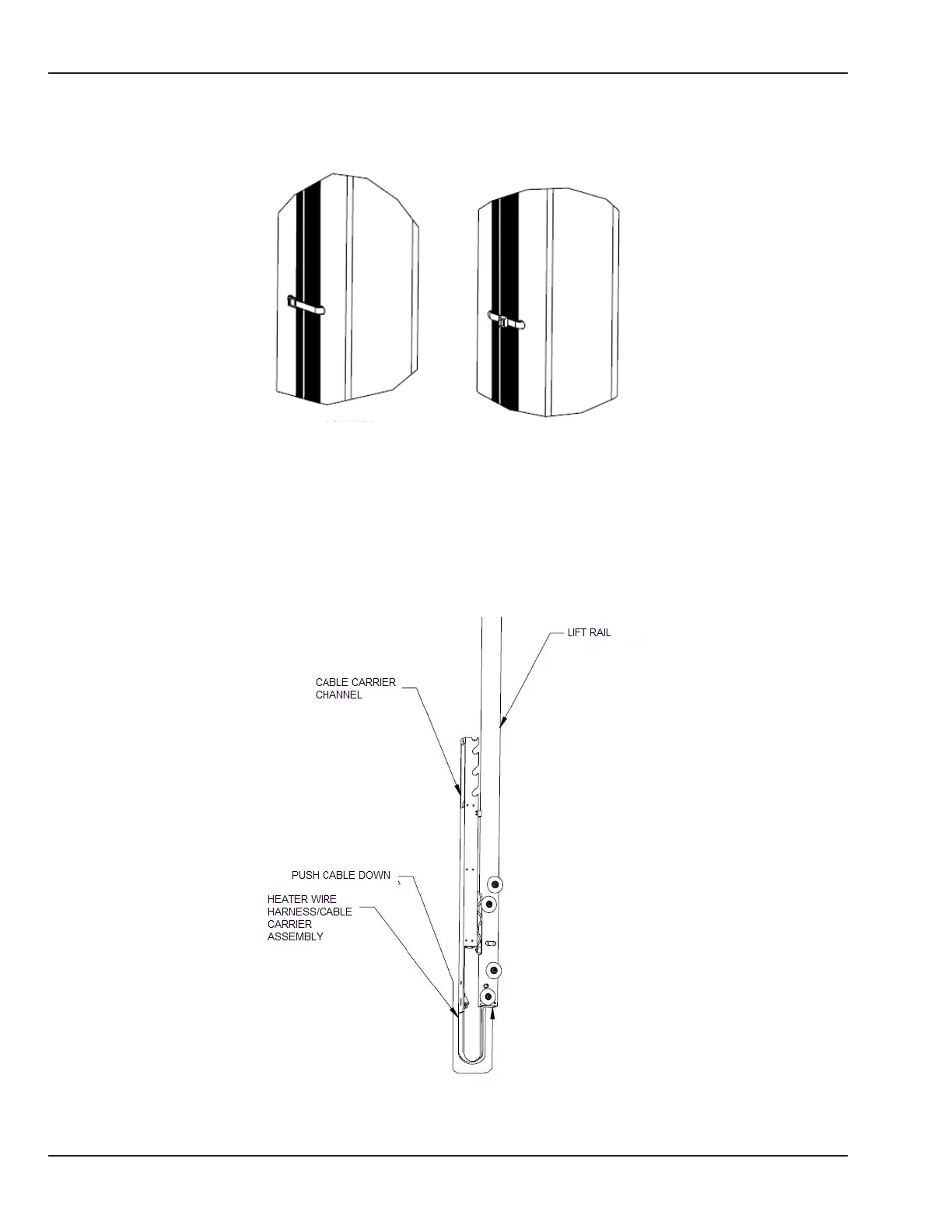

Figure 5-40 Correct and Incorrect Cable Tie Usage
4. Reattach the cable carrier channel to the 3 links riveted to the channel.
5. Close all open cable guard latches.
6. Bring Lift Rail and Cable Carrier Channel together as shown in the following îš¿gure.
Figure 5-41 Lift Rail and Cable Carrier Channel Together
110 6600-0343-000 104 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 5: Repair Procedures
