GE Giraffe OmniBed Service Manual

Smooth nut
Canopy
North spacer
North seal
M4x30 sockethead set screw
cup point
Spacer washer
OUTSIDE OF CANOPY
INSIDE OF CANOPY
Hex socket end
Beveled edge

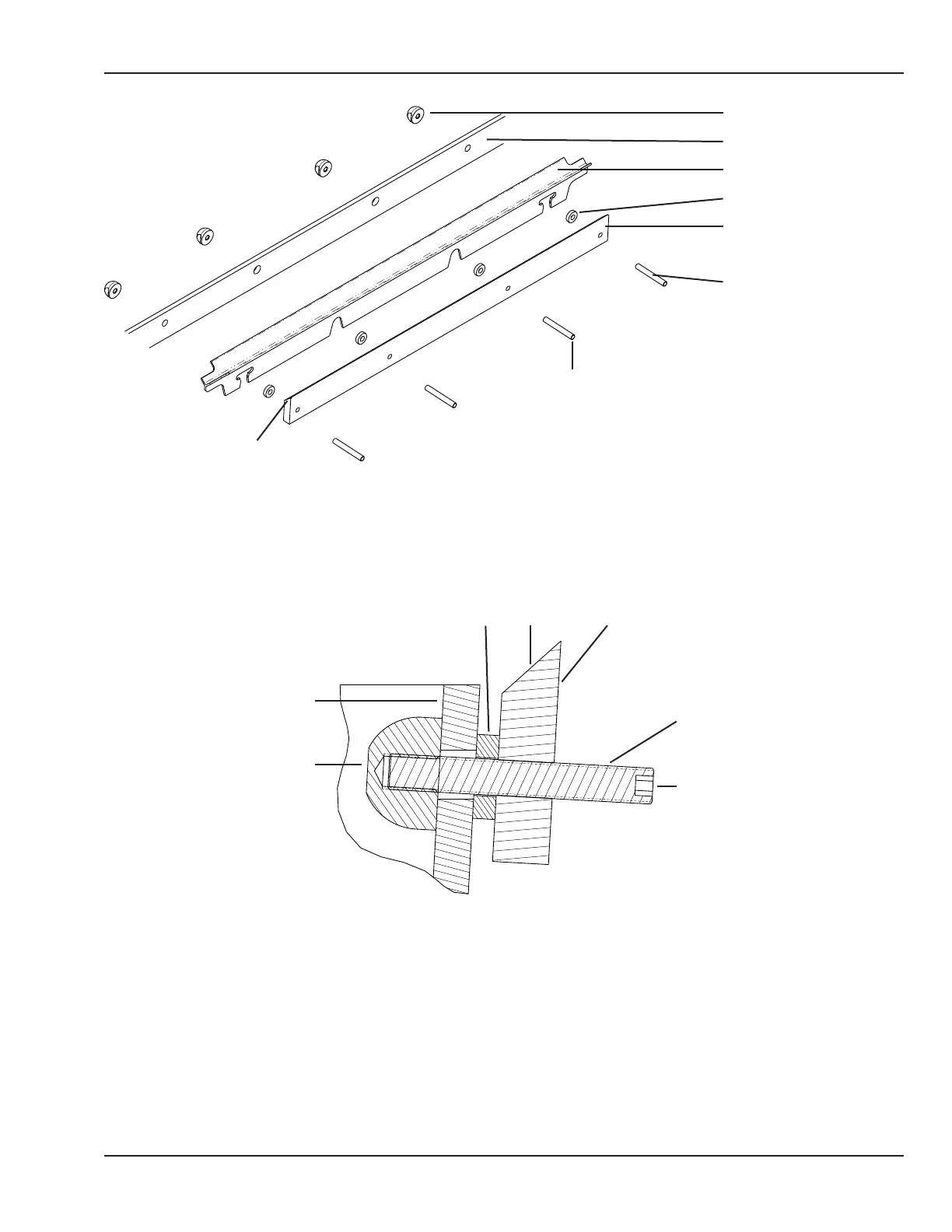

Figure 5-13 North Seal Parts
5. Install north seal parts on the upside-down canopy:
a. Orient the north spacer with the beveled side toward the canopy edge, as shown in Figure 5-13 and
Figure 5-14.
Smooth nut
Canopy
North spacer
Set screw
Spacer washer
OUTSIDE OF CANOPYINSIDE OF CANOPY
Hex socket end
Beveled edge
Figure 5-14 Beveled Side of North Spacer Toward Canopy
b. Start all set screws in the spacer, with the hex socket end of the screw pointing to the outside of the
canopy.
c. Add plastic spacer washers to the set screws.
d. Install the north spacer and washers to the canopy with smooth nuts.
