GE Giraffe OmniBed - Figure 6-15 Humidifier Assembly

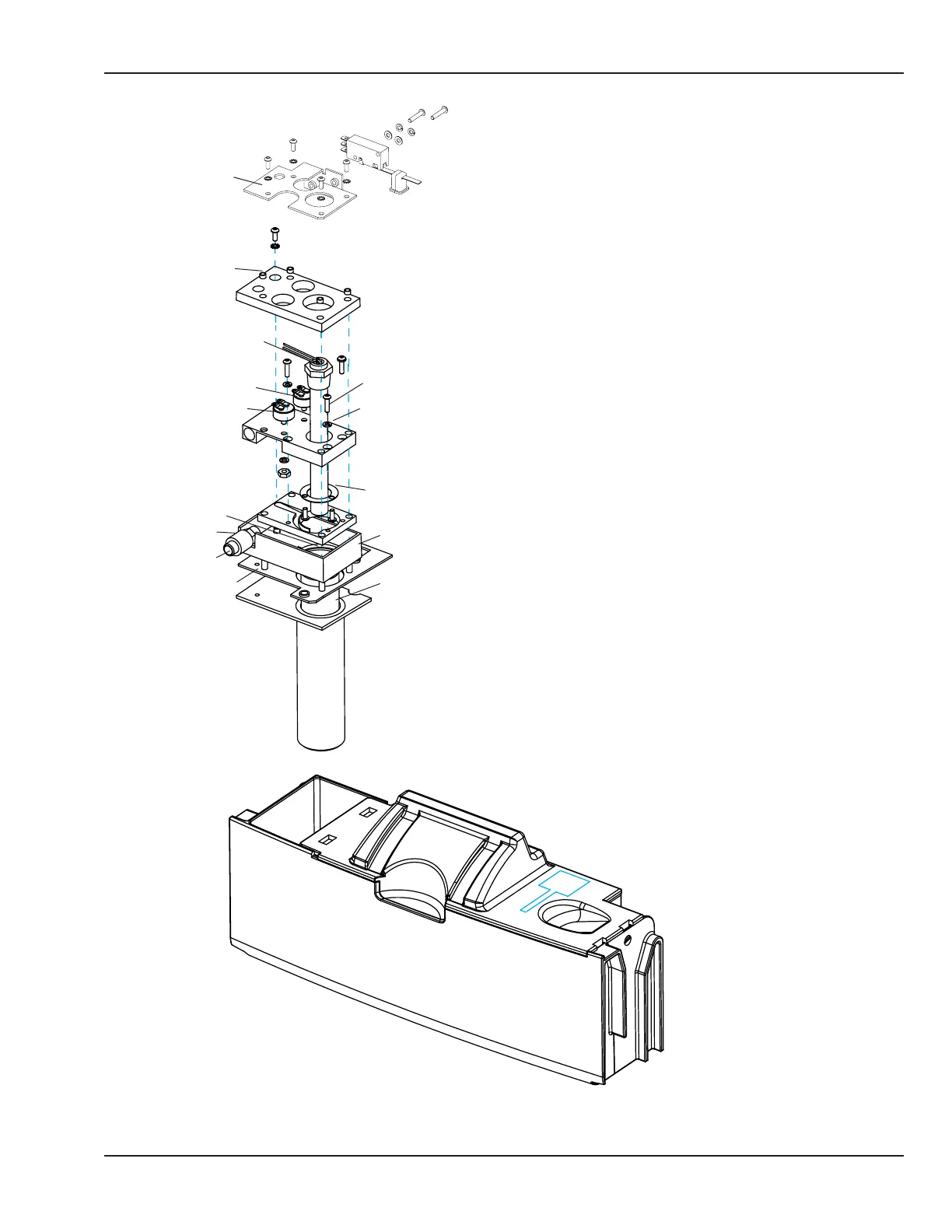

Figure 6-15 Humidier Assembly
27
1
2
3
4
5
24
25
26
6
7
28
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2
29
8,2
NOTE: Due to design changes, refer to “5.12 Humidier
Assembly Repairs” in Repair Procedures before ordering
parts.
