GE Giraffe OmniBed - Figure 6-27 Servo Control Oxygen Cooling Fan

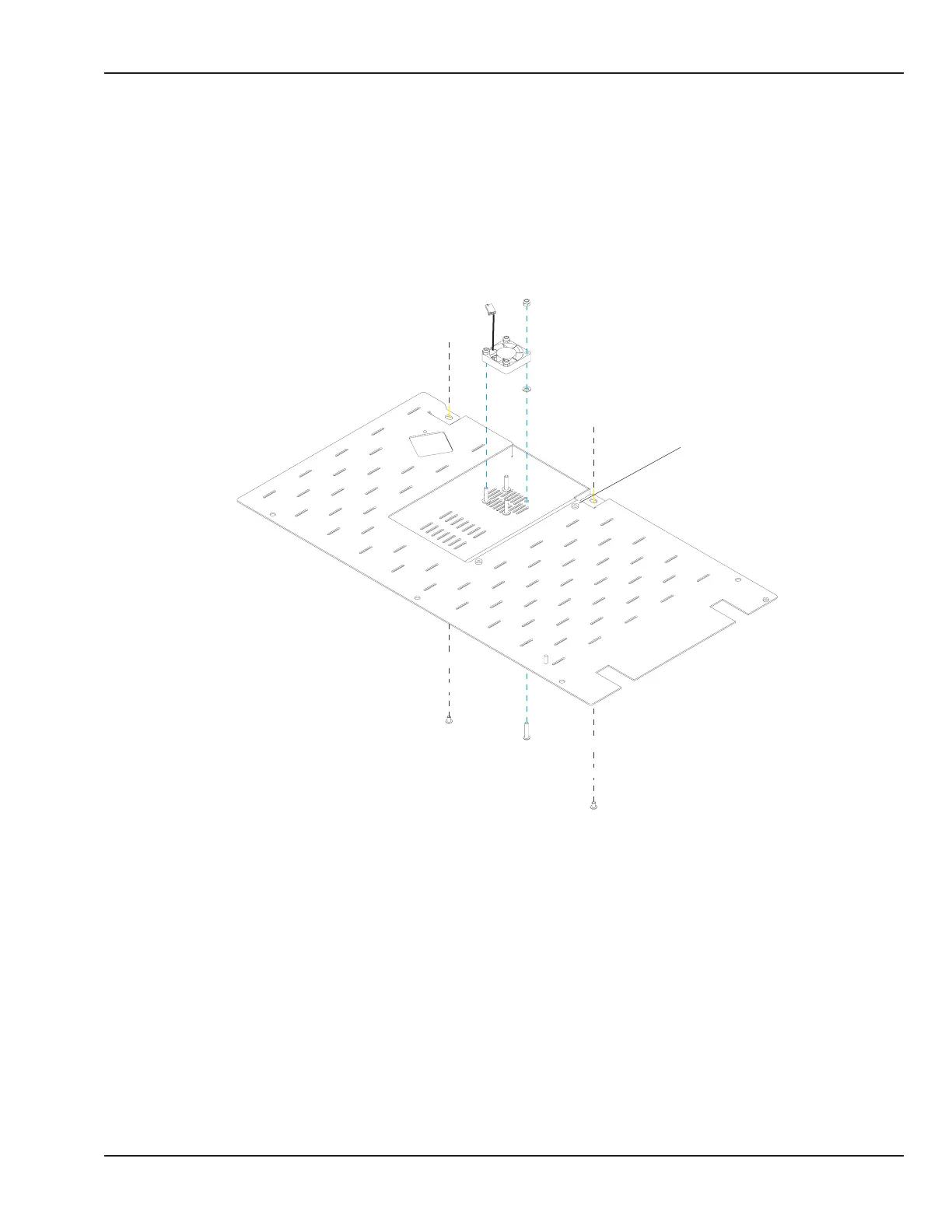

Figure 6-27 Servo Control Oxygen Cooling Fan
1
2
3
4
5
6
1. Nylok nut, M4 ......................................................................6600-0714-402
2. Cooling fan assembly* ....................................................6600-1523-700
3. Flat washer, M4...................................................................6600-0712-403
4. Screw, M4x20L Button Hd .............................................6600-0706-412
5. Screw, captive 8mm long ..............................................6600-0868-401
6. Screw, SEMS M4 x 6 Button Hd ...................................6600-0908-402
Parts not shown
Cable tie .................................................................................6600-0384-400
*Install fan so ow arrow on side points down, away from chassis.
