5.5 Left Rail Internal Repairs
5.5.1 Removing the Inner Rail Assembly
Refer to “Figure 5-32 Left Inner Rail”.
STEP 7
Lift rail
Cable carrier
Cable carrier channel
Left upright
Side roller bracket

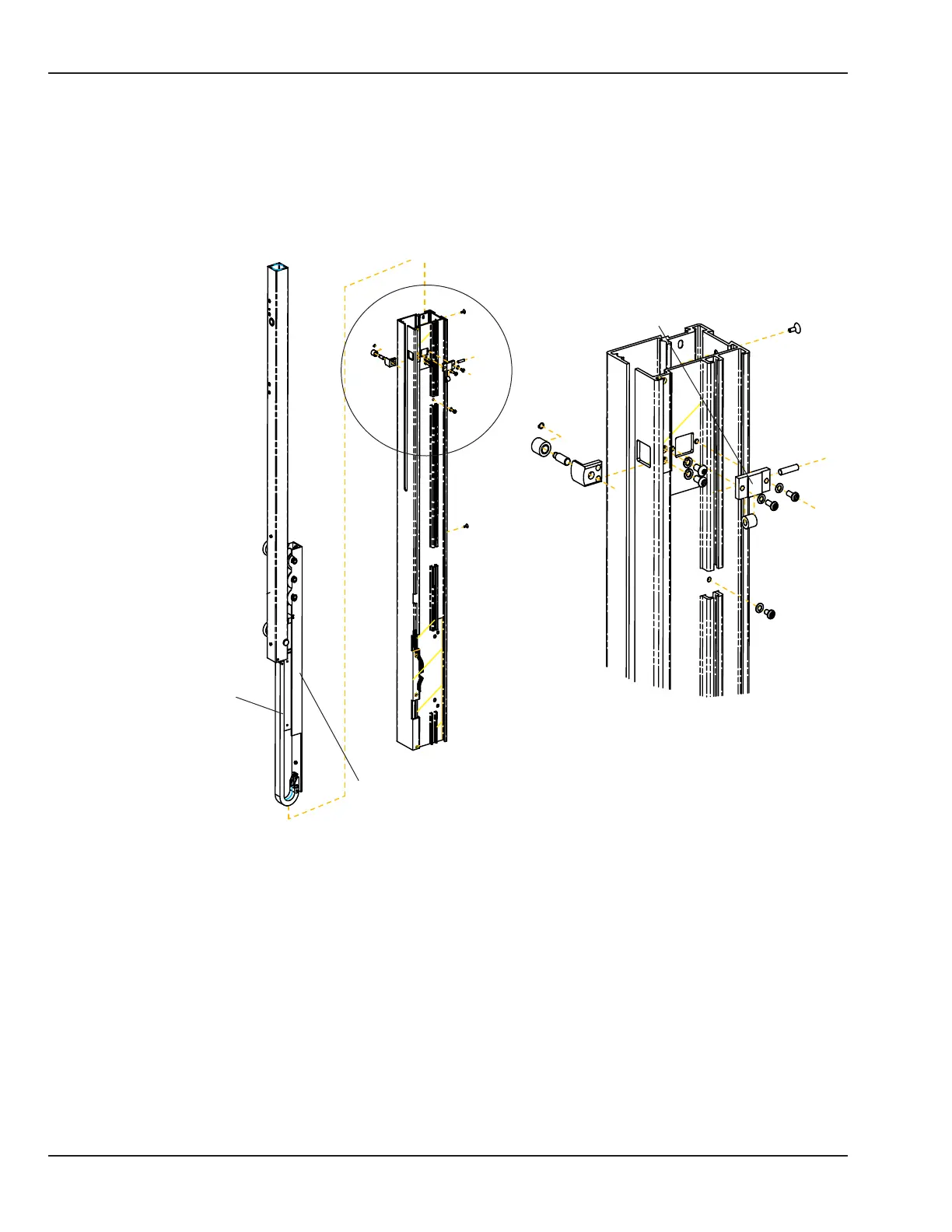

Figure 5-32 Left Inner Rail
1. Using a 2.5 mm hex key, remove the 2 screws in the rear dovetail of the upright that secure the cable
carrier channel to the inside of the upright. One screw is located at the top of the upright; the other is half
way down. Using a 3mm hex key, remove the side roller bracket. Pull the entire rail assembly out of the
upright.
2. Remove the pinch guard by sliding it up then pulling it o.
