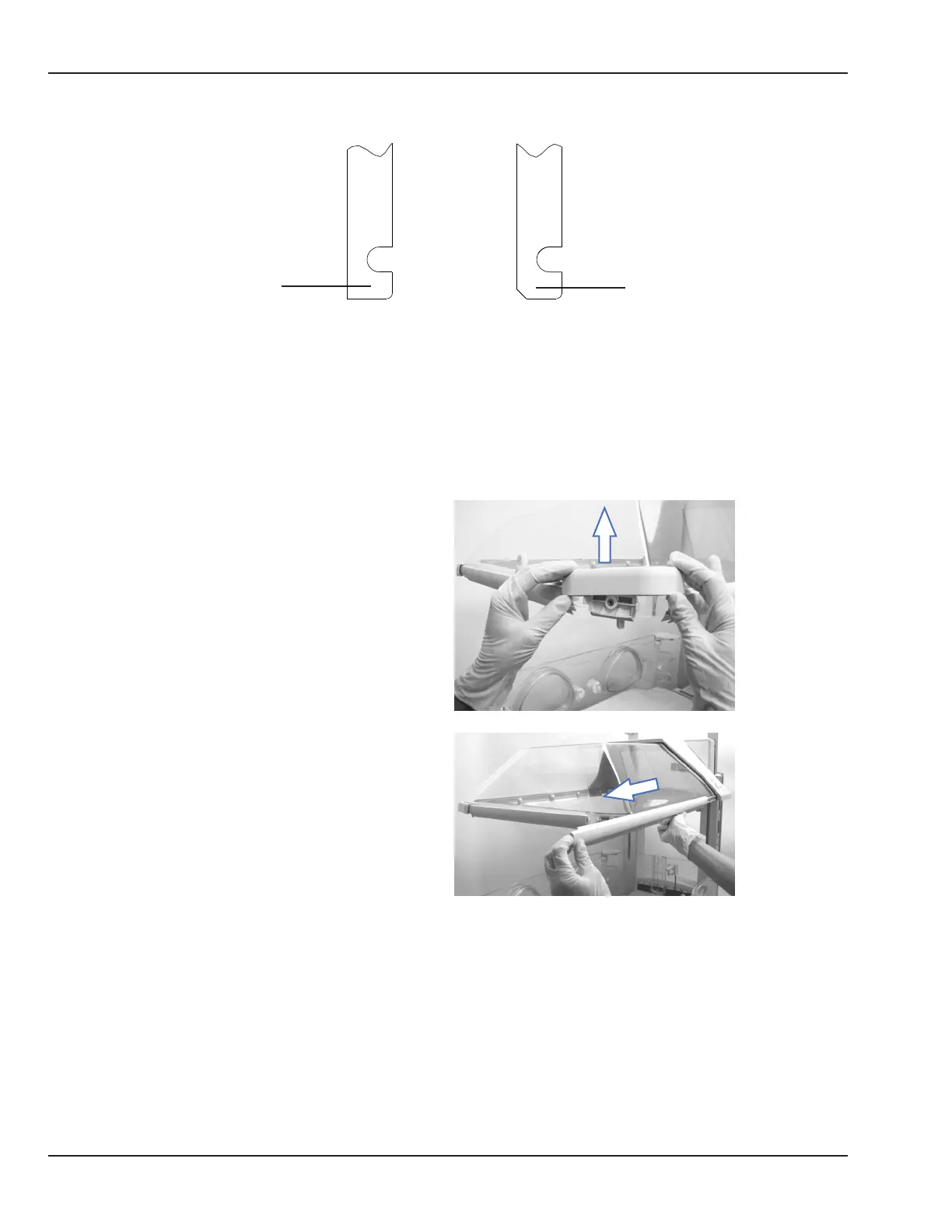

GE Giraffe OmniBed - Figure 5-23 Untrimmed and Trimmed Soffit

e. Check for and remove any sharp edges at each of the two corner cuts:
Before
After
Figure 5-23 Untrimmed and Trimmed Sot
f. Reinstall the sot using the six arrow clips.
g. Reinstall north seal.
15. Make sure that all seals can be easily removed:
a. Lift and unsnap the corner covers.
b. Slide the long side seals away from the
display and o the guide rails.
