GE Giraffe OmniBed Service Manual

1
4
3
5
6
2
7
2
6
13
10
12
18
16
13
21
11
9
15
14
20
22
8
SOUTH
NORTH
(heater door end)
Parts for original canopy seals:
1. Screw, M4 x 12, Socket Hd Cap ...................................6600-0707-410
2. Split ring lock washer ......................................................6600-0713-403
3. Threaded insert ..................................................................6600-1274-500
4. Inner side extrusion@ ......................................................6600-1002-400
5. Inner front/rear extrusion@ ..........................................6600-1003-400
6. Flat washer, M4...................................................................6600-0712-403
7. Screw, M4 x 12 socket head cap ................................6600-0707-410
8. Canopy* .................................................................................M1078118
9. Left canopy seal, side (west)@.....................................6600-1865-501
10. Label ........................................................................................6600-2358-100
11. Corner ange, front right/rear left (SE/NW) ...........6600-0272-850
12. Canopy seal, front (south)@ ..........................................6600-1865-502
13. Corner ange, front left/rear right (SW/NE) ...........6600-0275-850
14. Canopy corner pin@ .........................................................6600-1197-500
15. Screw, M4x0.7x16 Flhd Nylok ......................................6600-1155-400
16. Right canopy seal, side (east)@...................................6600-1865-503
17. Door support .......................................................................6600-1471-500
18. Nut, elastic lock, M4 x 0.7 ..............................................6600-0714-402
19. Spacer, 10 mm x 8.0@ .....................................................6600-1108-400
20. Set screw, M4 30 socket head cup point ................6600-0715-407
21. Rear (north) canopy seal@ ............................................6600-1865-504
22. Spacer, M4 x 8L ...................................................................6600-1220-400
* When replacing canopy, order item 10, or order enhanced canopy seals retrot kit number M1208286.
@ If replacing these parts, order enhanced canopy seals retrot kit number M1208286.

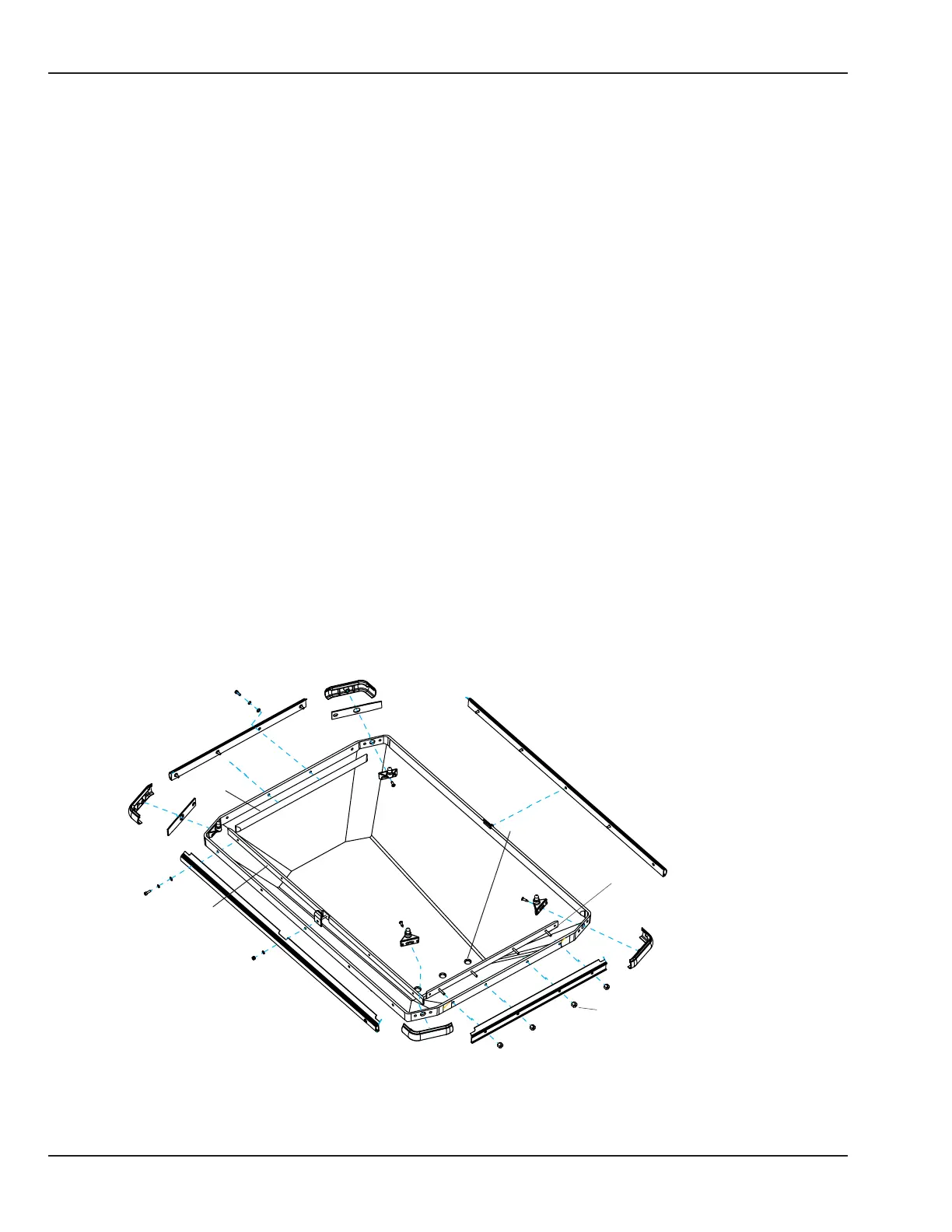

Figure 6-10 Original Canopy Seal Parts
168 6600-0343-000 104 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 6: Illustrated Parts
