GE Giraffe OmniBed - Figure 6-26 Expansion Chamber;Heatsink Vent

1
2
3
4
5
6
7
8
9
9
1. Screw, M4 Skt Hd ...............................................................6600-0706-409
2. Split ring washer, M4 ........................................................6600-0713-403
3. Flat washer, M4...................................................................6600-0712-403
4. Expansion chamber cover ............................................6600-1878-500
5. Cover gasket ........................................................................6600-1883-500
6. Elbow tting .........................................................................6600-0873-400
7. Expansion chamber assembly
(includes items 1-6) ...........................................................6600-0256-850
8. Vent ..........................................................................................6600-1881-500
9. Washer (thick)......................................................................6600-1219-400
Parts not shown
P-clamp (under Pleur-evac holder) ...........................0690-1240-331
Washer, M6 (under Pleur-evac holder) ....................6600-0712-405
Expansion chamber inlet gasket ................................6600-1884-500

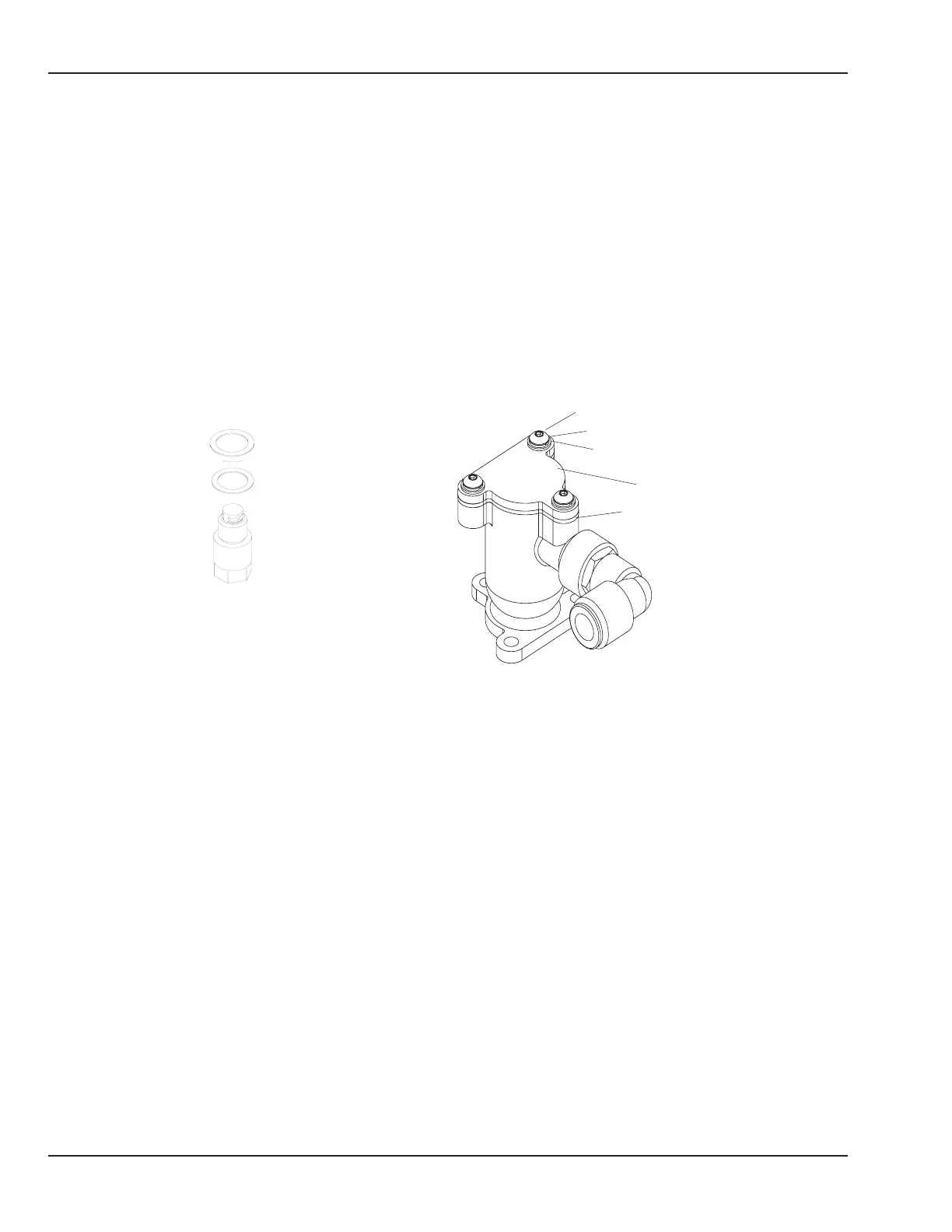

Figure 6-26 Expansion Chamber/Heatsink Vent
