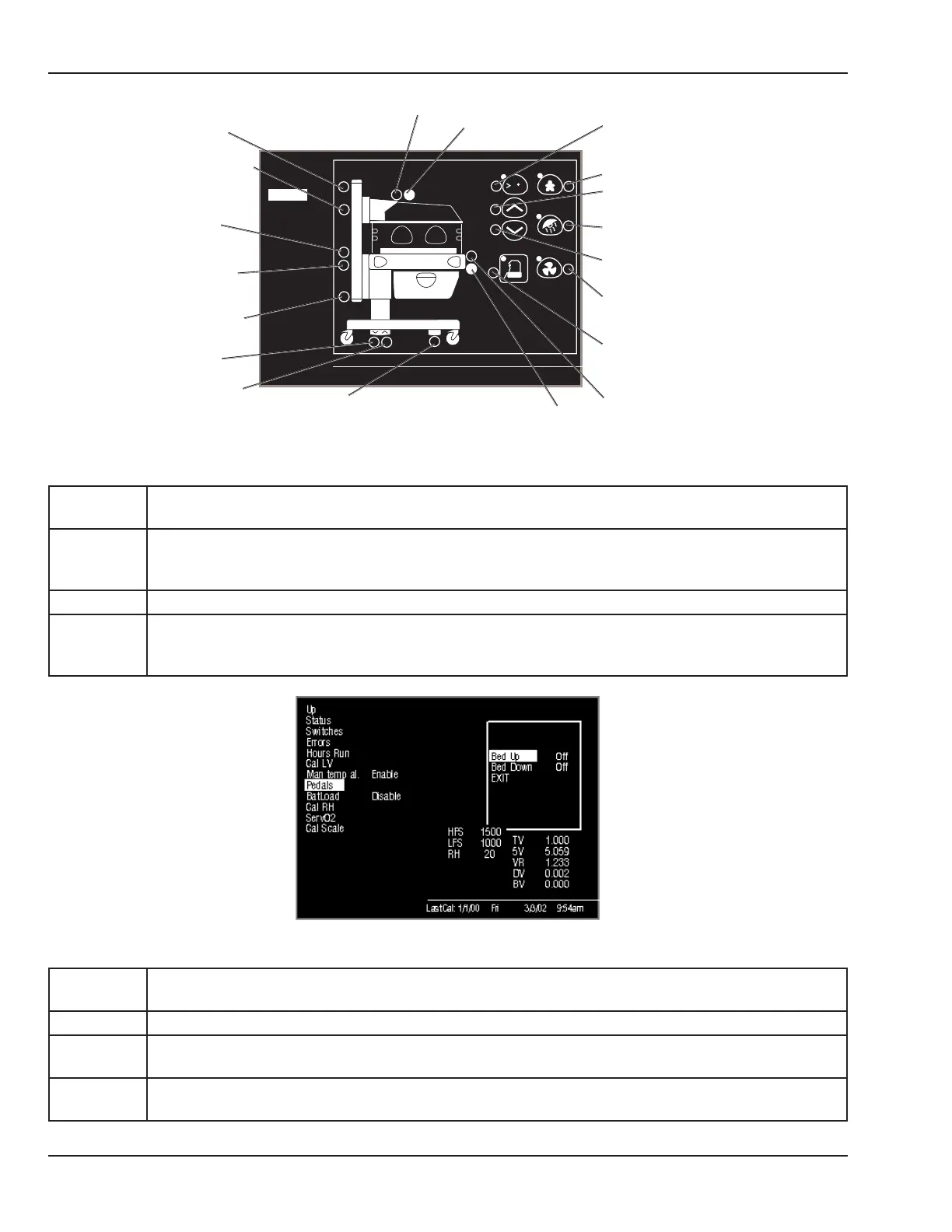

Canopy up
Canopy middle
Canopy down
Heater doors closed
Canopy hand
switch up
Override control
Baby mode control
Manual mode control
Air mode control
Boost air curtain
control
Increase control
Decrease control
Humidier reservoir
engaged
Bed down
pedal
Canopy pedal
Canopy hand
switch down
Bed up pedal
Humidier
add water
Figure 4-4 Switch Diagnostic Diagram
Errors
Lists a chronological log of the last 8 system errors that occurred. Shows error number and date. It is
possible to clear the list.
Hours Run
Brings up a screen with 2 hour meters; one that is resetable and one that is not. To reset the resetable
hour meter, highlight CLEAR and push the control knob. The non-resetable hour meter will roll to 0 at
199,999.
Cal LV Use to calibrate line voltage at the factory. To calibrate line voltage follow the procedure in section 3.4.
Man temp al.
Use to enable or disable the patient temperature alarms in the manual mode (revision 1.40 and higher
software only). If disabled on the service screen, it cannot be enabled on the user setup screen (wrench
icon). The alarm will not activate if a patient set point has not been entered.
Figure 4-5 Pedal Screen
Pedals
In the event of a bed up/down or canopy pedal switch failure, selecting pedals allows the canopy to be
raised or the bed to be raised or lowered (revision 1.6 software and higher).
BatLoad Used for manufacturing only, not for service use.
Cal RH
Brings up humidier calibration screen. Refer to “Chapter 3: Calibration and Maintenance” for information
on how this screen is used.
Cal Scale
Brings up scale calibration screen. Refer to “Chapter 3: Calibration and Maintenance” for information on
how this screen is used.
32 6600-0343-000 104 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 4: Troubleshooting
