6.4 PCB Layouts
*Kit Includes display driver software.

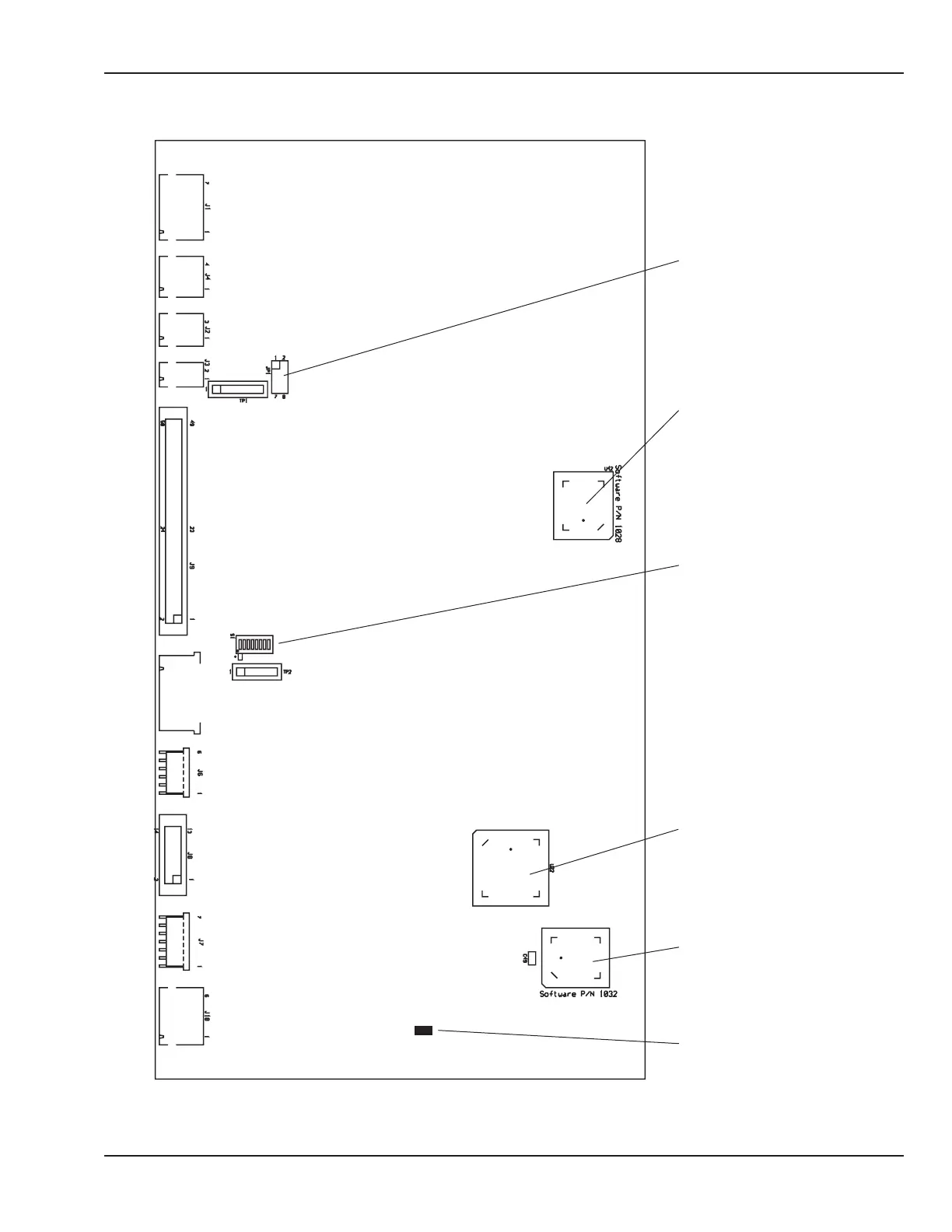

Figure 6-39 Control Board (6600-0212-850)
Main control board software
(U42) 6600-0234-850*
Audio software (U22)
6600-0243-850
Audio wave form (U18)
6600-0244-850
Calibration Jumper
6600-1226-600
12345678
Dip switch
REV
Control board
revision level #
