GE Giraffe OmniBed - Figure 6-11 Enhanced Canopy Seal Parts

Kits for enhanced canopy seals:
Seal Replacement Kit (contains the following parts) ....................................... M1208284
1. West Canopy Seal ................................................................................................................M1156919
2. South Canopy Seal...............................................................................................................M1156921
3. East Canopy Seal .................................................................................................................. M1156923
4. North Canopy Seal ...............................................................................................................M1156925
Corner Cover Replacement Kit (contains the following parts) ....................... M1208283
5. Corner Cover SE ....................................................................................................................M1156938
6. Corner Cover SW ..................................................................................................................M1156942
7. Corner Cover Receiver .......................................................................................................M1156944
8. M4 x 16 Flathead Phillips Screw with Pre-applied Nylon Patch ......................6600-1155-400
Hardware Replacement Kit (contains the following parts) ............................. M1208285
8. M4 x 16 Flathead Phillips Screw with Pre-applied Nylon Patch ......................6600-1155-400
9. West Canopy Rail .................................................................................................................M1156929
10. South Canopy Rail ................................................................................................................M1156933
11. East Canopy Rail ................................................................................................................... M1156927
12. North Canopy Spacer .........................................................................................................M1156935
13. Rail Spacer (thicker than spacer washer M1156954) ..........................................6600-0521-400
14. Flange Corner NW ................................................................................................................6600-1343-500
15. Flange Corner NE..................................................................................................................6600-1344-500
16. Canopy Corner Pin ...............................................................................................................M1164256
17. Canopy Corner Pin Gasket ...............................................................................................M1156952
18. Door Support .......................................................................................................................... 6600-1471-500
19. Door Support Gasket ..........................................................................................................M1156948
20. Spacer Washer ......................................................................................................................M1156954
21. Smooth Nut .............................................................................................................................M1156957
22. M4 x 20 Buttonhead Socket Cap Screw .....................................................................6600-0706-412
23. M4 x 16 Buttonhead Socket Cap Screw .....................................................................6600-0706-411
24. M4 x 30 Socket Set Screw Cup Point Stainless Steel ............................................6600-0715-407
25. M4 x 4.1 id 0.9 Thick Splitlock Washer ........................................................................6600-0713-403
M4 Hex Nut Stainless Steel ..............................................................................................6600-0711-407
M4 x 4.3 id 0.5 Star Washer External ..........................................................................6600-0713-443
M4 x 12 Buttonhead Stainless Steel Screw ..............................................................6600-0706-410
M4 x 4.3 id 0.8 Flat Washer ..............................................................................................6600-0712-403
Retrot Kit (contains all of the above parts) ...................................................... M1208286

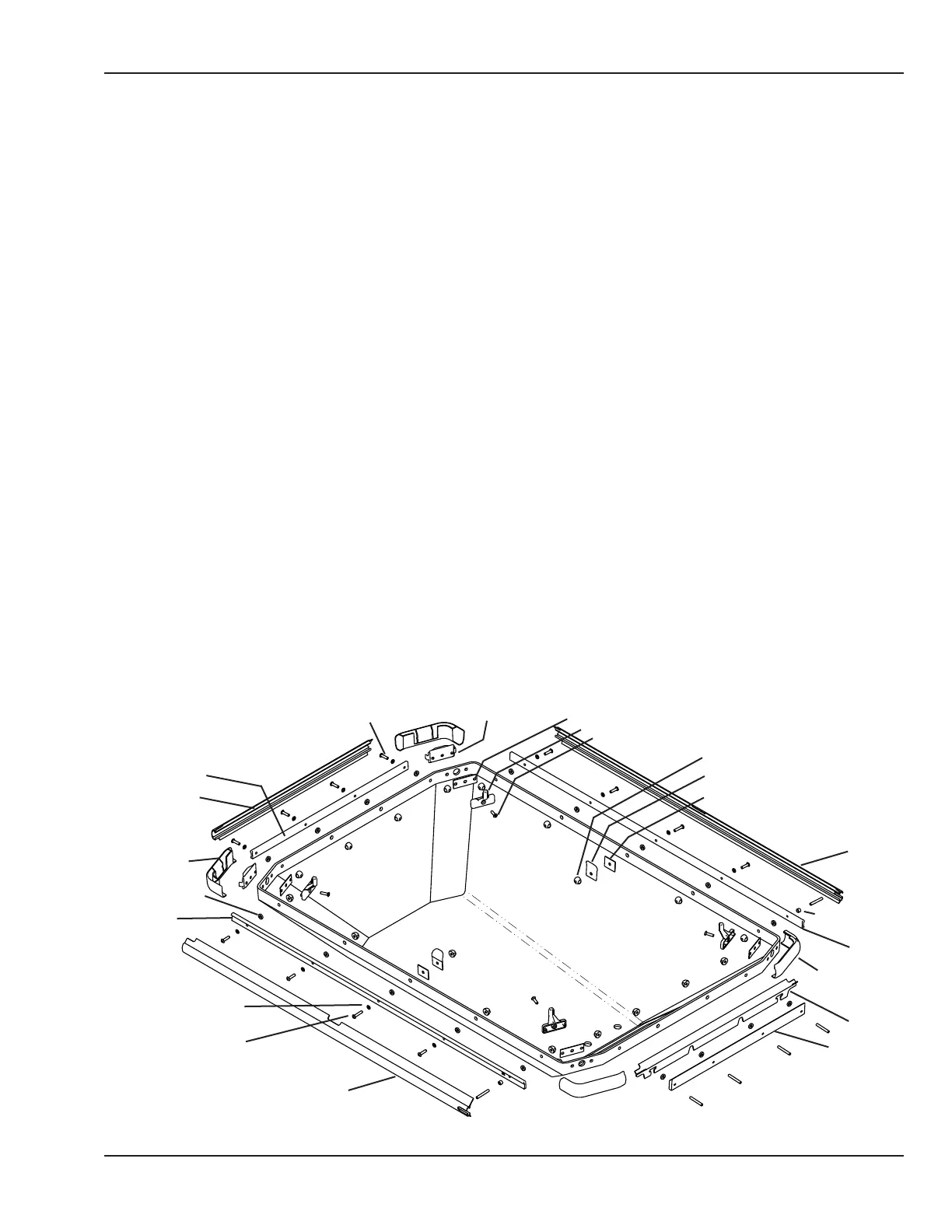

Figure 6-11 Enhanced Canopy Seal Parts
SOUTH
NORTH
(heater door end)
2
12
4
15
11
13
3
19
18
8
16
17
7
5
23
10
6
20
9
14
24
1
21
25
22
24
