GE Giraffe OmniBed Service Manual

Blue P1
Green P2
Brown P3
6600-1097-603
Connector

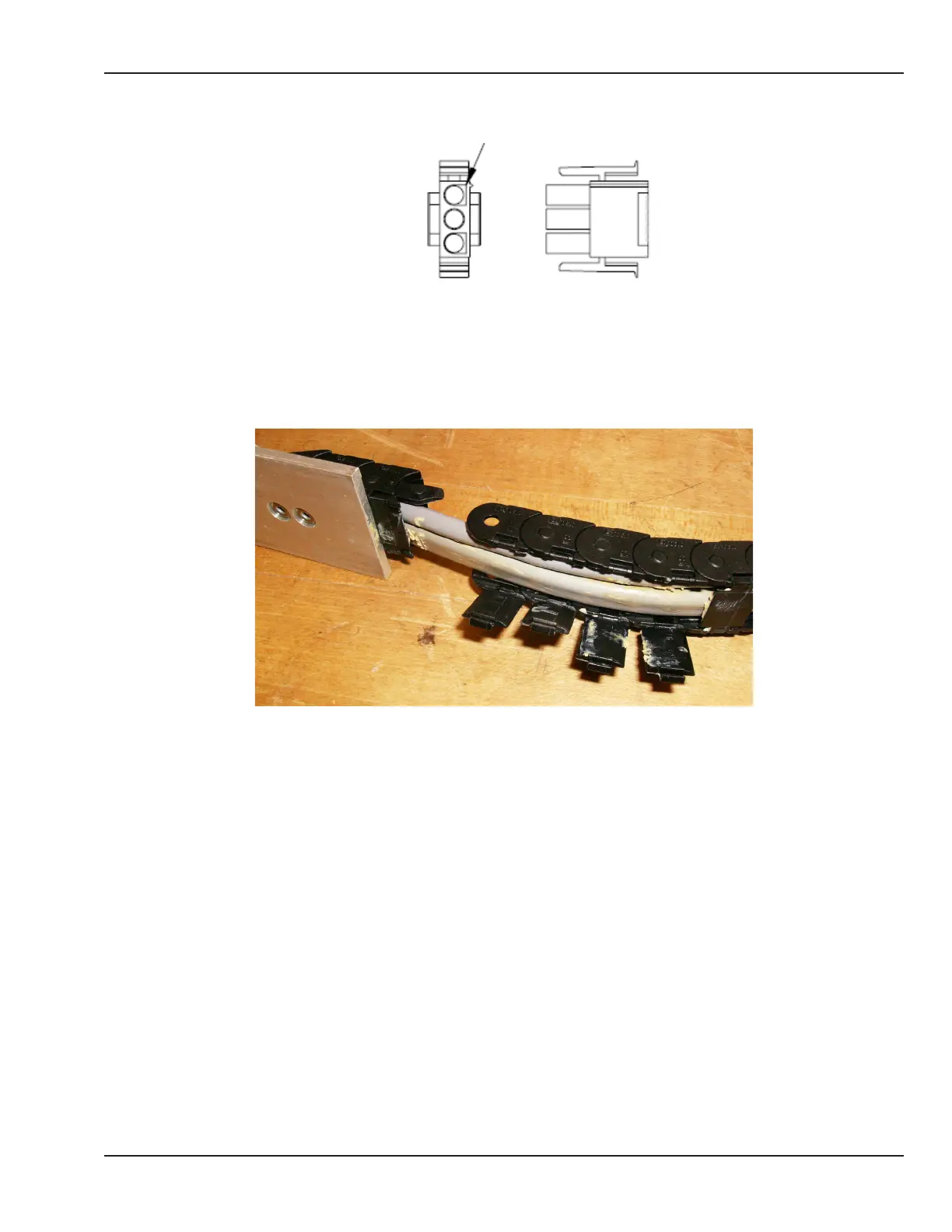

Figure 5-38 Connector Drawing
5.5.5.4 Removing the Old Harness from the Cable Carrier Channel
1. Open the rst 4 exposed cable guard latches at the cable carrier channel end.
Figure 5-39 Opened Cable Guard Latches
2. Unsnap the links with open covers leaving the end riveted link and 2 additional links on the cable carrier
channel.
3. Remove the 4 cable ties securing the harness to the channel. (Make note of routing and orientation).
4. Remove and discard the harness. You may want to save the cable carrier links to use as spares.
5.5.5.5 Installing the New Harness on the Cable Carrier Channel
1. On the replacement harness open the rst 4 cable guard latches at the cable carrier channel end.
2. Remove the end link and the 2 adjoining links and set aside.
