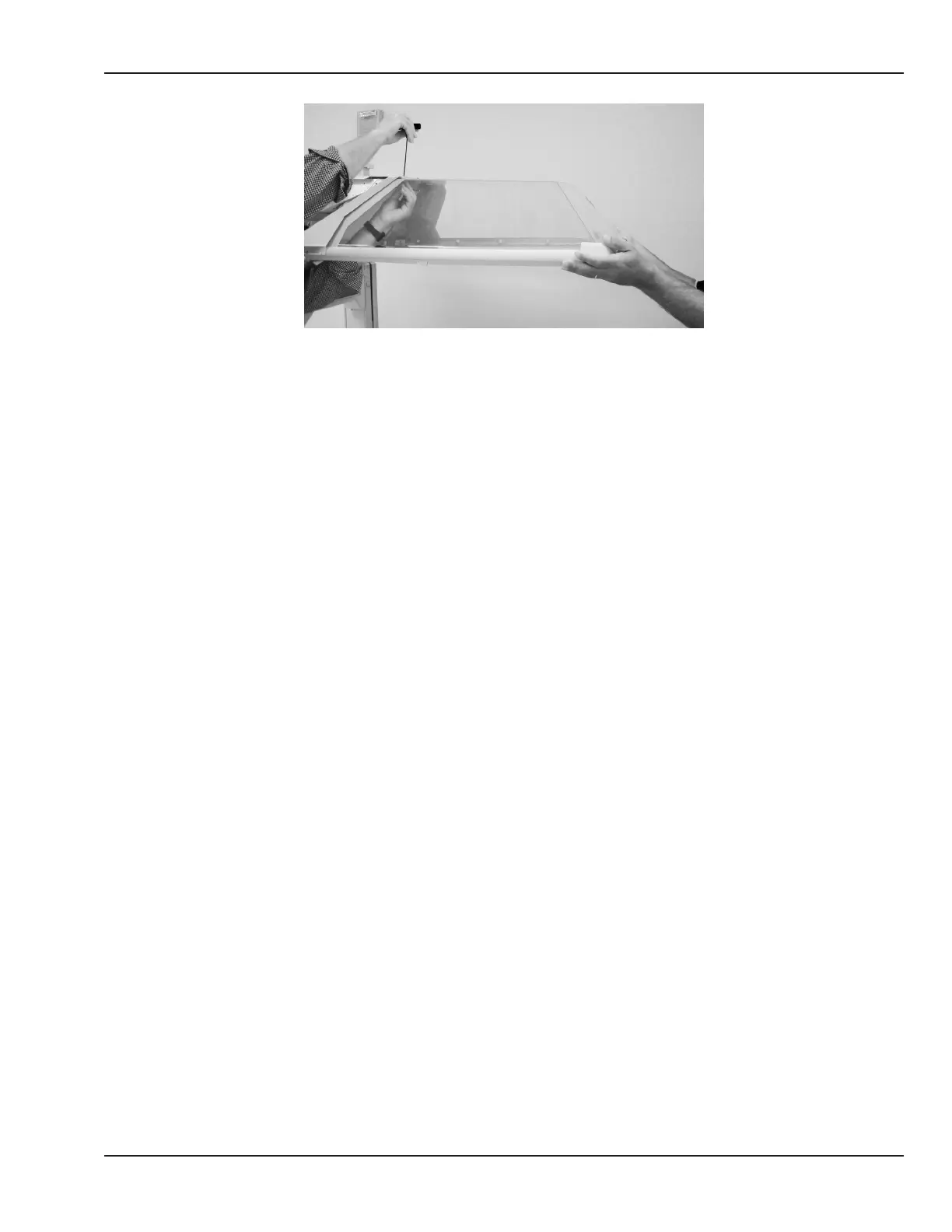

Figure 5-6 Two People Needed for this Step
g. Lift the canopy slightly from the south to pivot the north end of the canopy away from the heater door
bracket.
h. Turn the canopy upside down on the clean and soft work surface to avoid scratching the canopy. Save
the canopy for later reassembly.
7. Choose one of the following:
• Transfer the remaining parts from the old canopy to the new. In this case, order the corner label set
(6600-2358-100, set of two), as these cannot be reused.
• Use the Enhanced Seal Retrot Kit (M1208286) to replace the seal hardware.
8. Reassemble in reverse order. If alignment is required, refer to the “5.6.1.1 Realigning the Canopy” section.
© 2001 by Datex-Ohmeda, Inc.. All rights reserved. 6600-0343-000 104 75
Chapter 5: Repair Procedures
