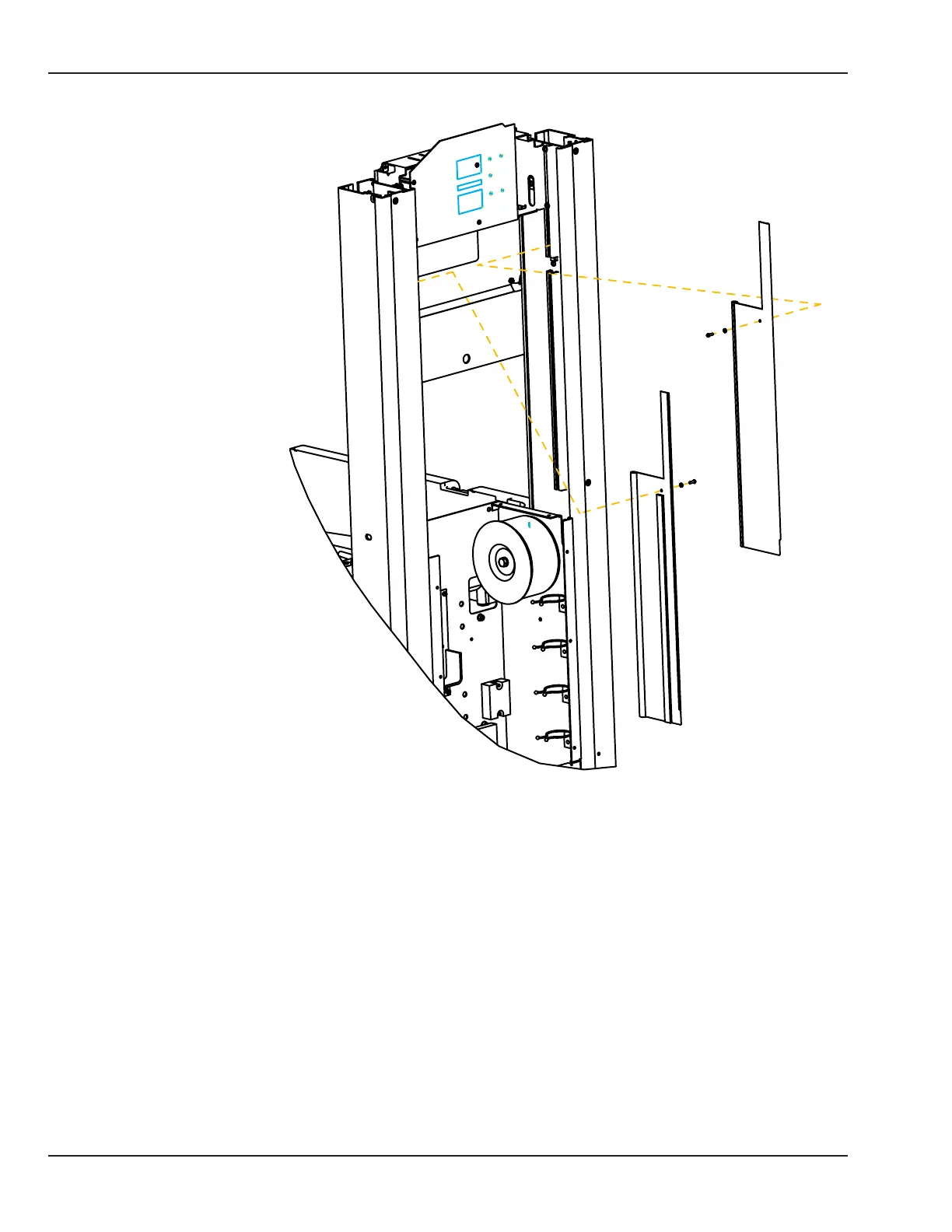

6.1.3 Radiant Heater and Canopy
13
14
15
16
1. Top Plate ................................................................................6600-1421-500
2. Radiant Heater Housing .................................................6600-1308-500
3. Reector.................................................................................6600-1281-500
4. Screw, M3 x 6 Socket Head ...........................................6600-0707-401
5. Radiant Heater Assembly, 480 Watts ......................6600-0220-850
6. Heater Guard Assembly (includes 7) ........................6600-0219-850
7. Warning label ......................................................................6600-2328-101
8. Lock Washer M3 ................................................................6600-0713-402
9. Nut, M3 ...................................................................................6600-0711-403
10. Bushing ..................................................................................6600-1120-400
11. Lock Washer ........................................................................6600-0713-403
12. Screw, M4 x 10 Button Head ........................................6600-0706-409
13. Wire cover, left (west) .......................................................6600-0824-700
14. Screw, M3 x 10 Button Head ........................................6600-0706-401
15. Star washer, M3 internal tooth ....................................6600-0713-431
16. Wire cover, right (East) .....................................................6600-0823-700
17. Flat washer, M-3 .................................................................6600-0712-402
164 6600-0343-000 104 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 6: Illustrated Parts
