1.9 Humidier

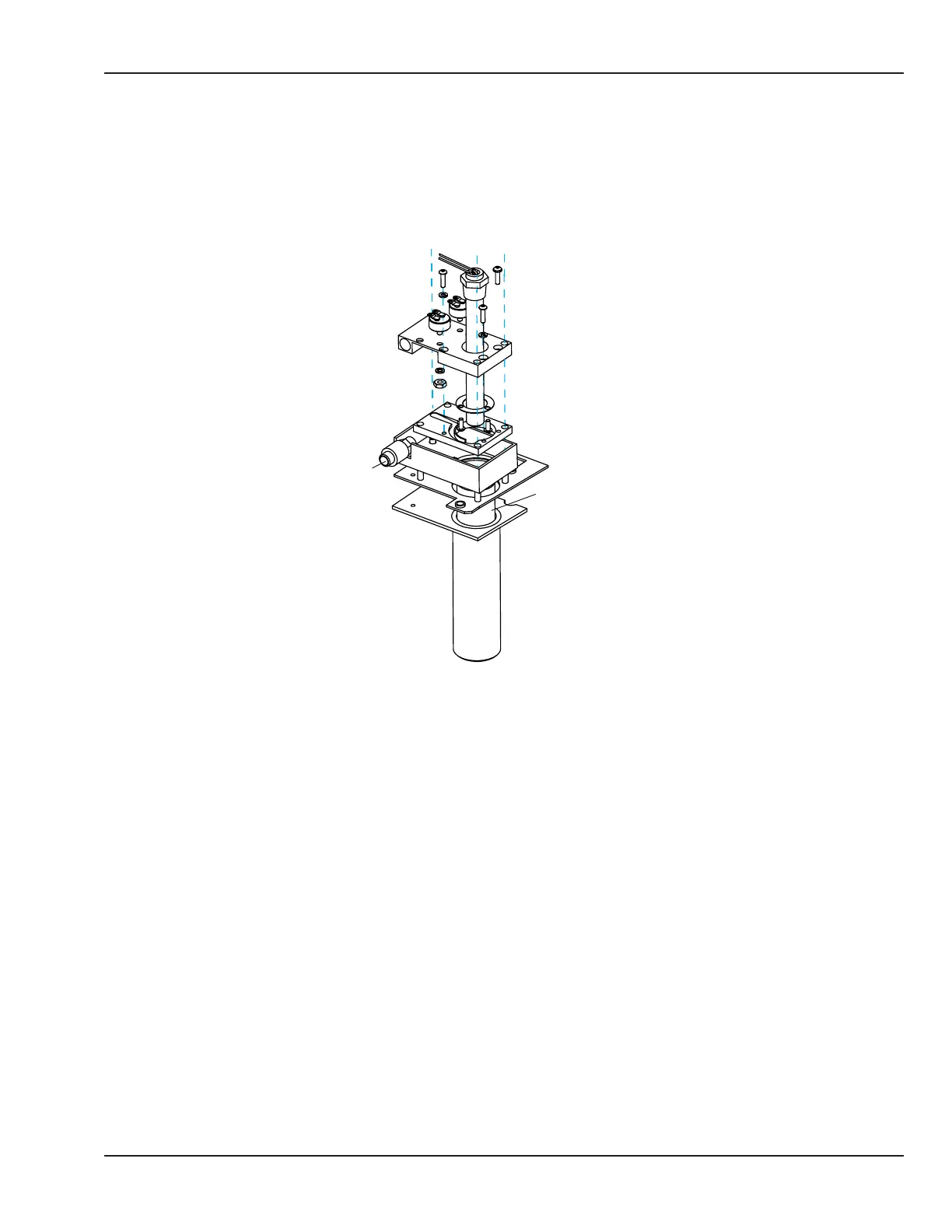

Refer to the following diagram. Water enters the insulating cylinder (1) through a small hole in bottom. Steam
rises along the heater cartridge protective insert (2) and is channeled between the heater mount (3) and the
ramp block (4) and out the steam port (5).
3
4
2
1
5
Figure 1-2 Humidier
