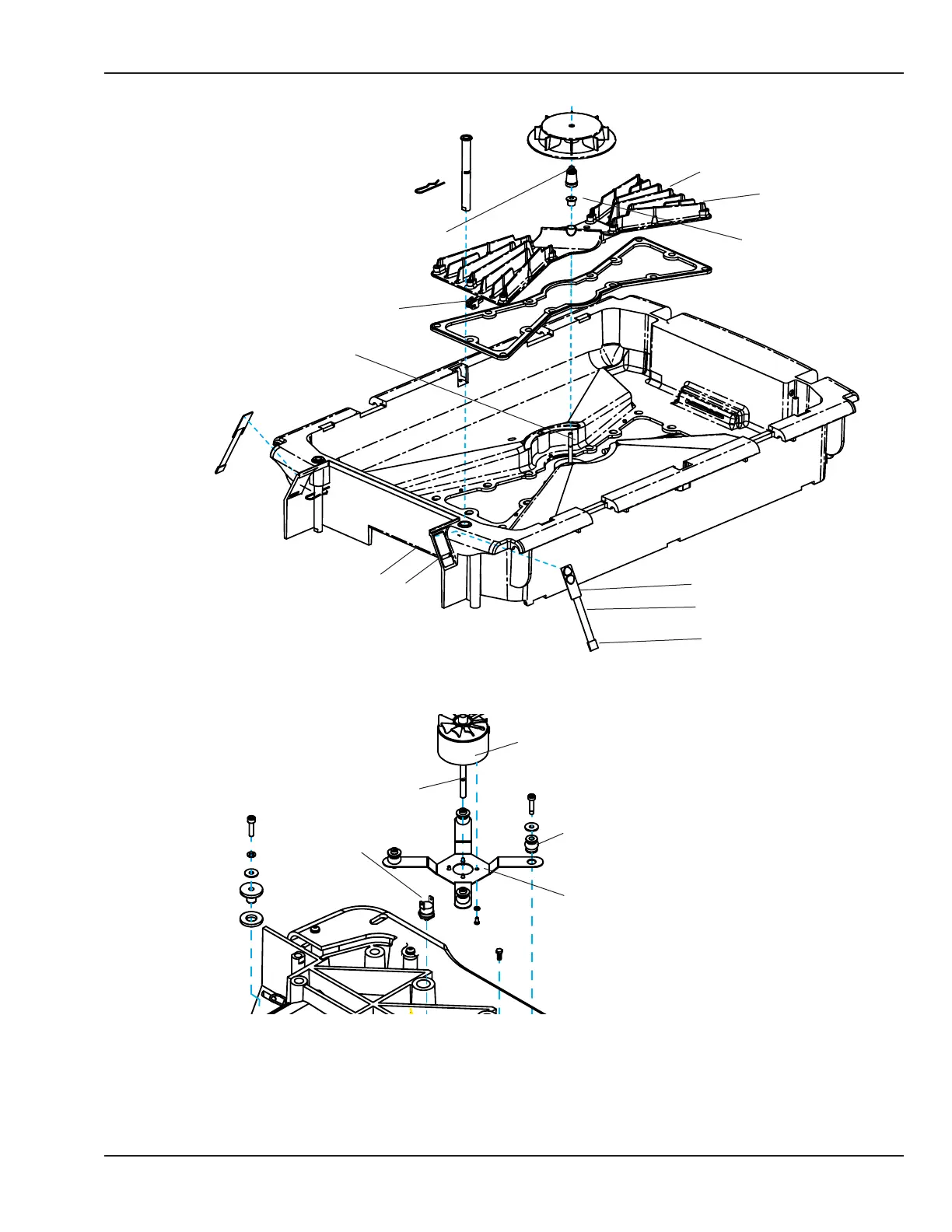

GE Giraffe OmniBed - Figure 5-51 Heat Sink and Fan; Figure 5-52 Fan Motor

Fan
Fan hub
Fan seal
Heat sink
Heat sink gasket
Chassis
Motor shaft
Incubator heater
Canopy nger switch
Figure 5-51 Heat Sink and Fan
Motor shaft
Motor
Motor bracket
Motor isolators
Thermostat
Figure 5-52 Fan Motor
Slot
Blue connector
Flexible membrane
Incubator heater
(not shown)
