INSIDE OF
CANOPY
OUTSIDE OF
CANOPY
South seal
M4 splitlock washer
M4x16 buttonhead socket cap screw
South rail
Spacer washer
Smooth nut
Canopy

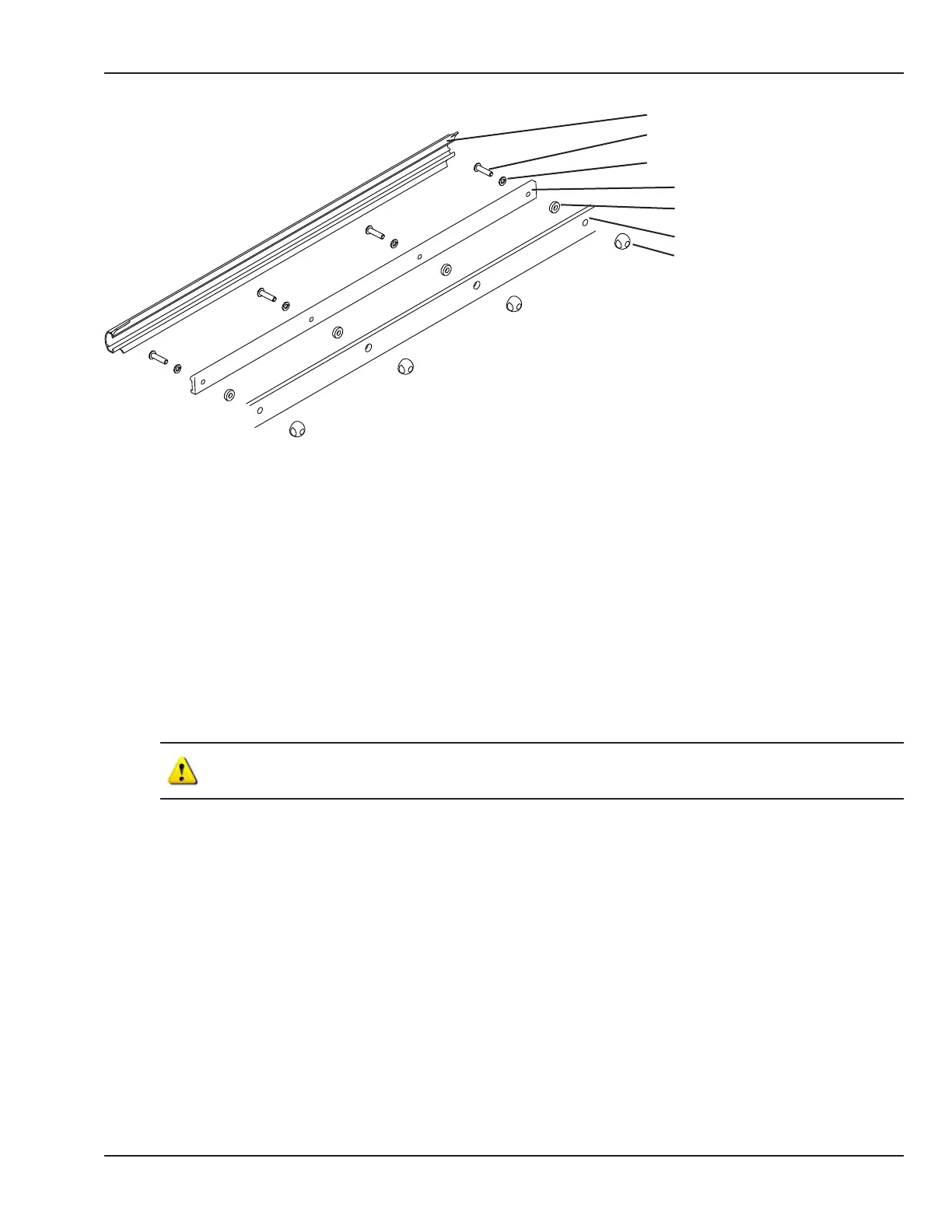

Figure 5-16 South Seal Parts
6. Install south parts on the upside-down canopy:
a. Install the south guide rail with the four button head screws (2.5 mm hex key), washers, and lock
washers provided with the kit. Install all hardware îš¿nger-tight.
b. Slide seal on, for alignment purposes. Lift the seal assembly to the upper limit of the holes.
c. Tighten all nuts and screws until they feel snug.
d. Remove seal and verify that the lock washers are compressed at. If necessary, tighten with 10 mm
open-end wrench and 2.5 mm hex key.
CAUTION:
Do not over-tighten the hardware.
e. Install and remove seal to check for easy installation.
© 2001 by Datex-Ohmeda, Inc.. All rights reserved. 6600-0343-000 104 83
Chapter 5: Repair Procedures
