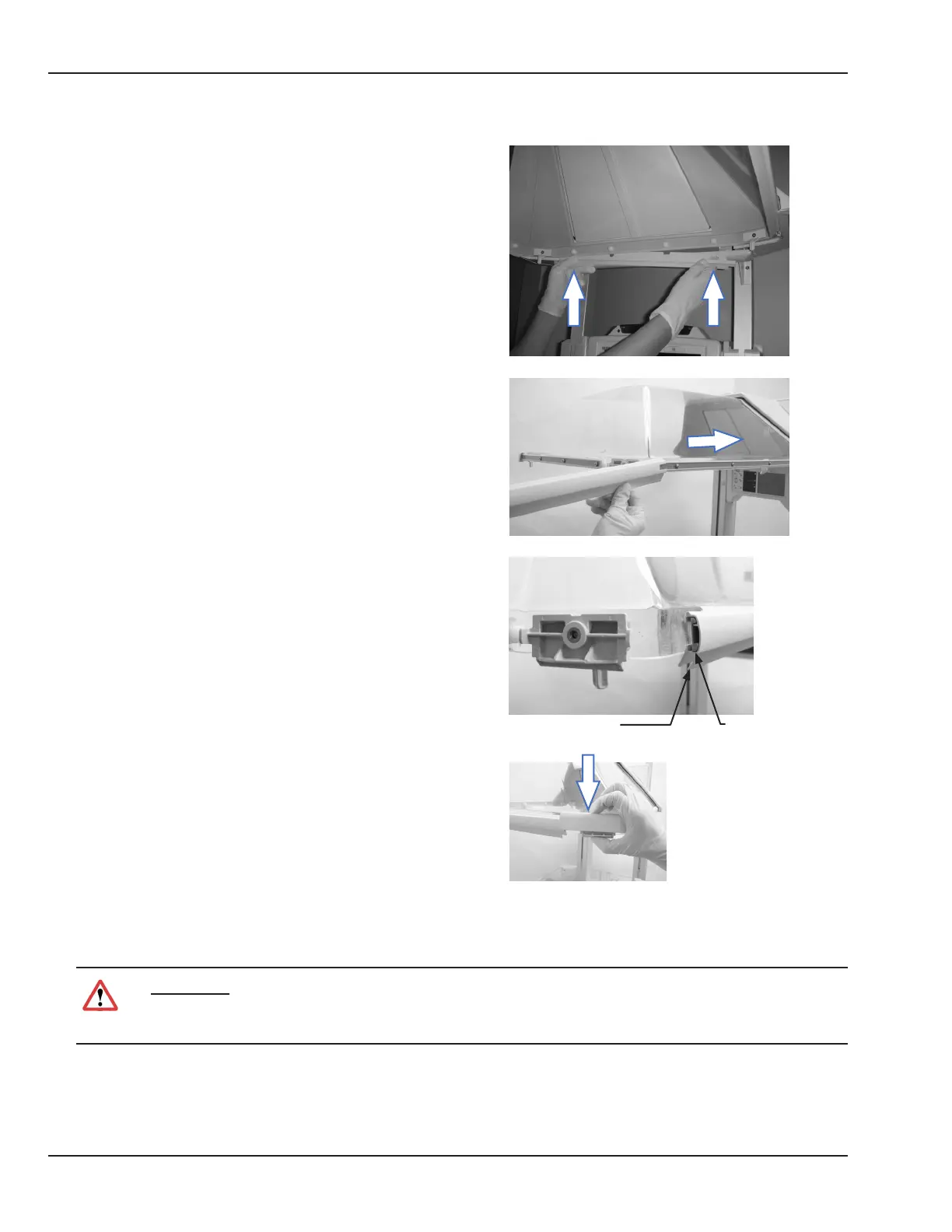

10. Make sure that all seals can be easily installed:
a. At the north end of the canopy, insert the north
notched seal in the slot in front of the red/orange
warning spacer and slide it up to snap it into place.
You should hear an audible snap from each end. It
does not matter which seal lip faces out.
b. Starting with the south end, slide the slotted end of
each long seal over a guide rail on the side of the
canopy, with the large seal lip down.
Slide the slotted end toward the display until it stops.
The seal should be ush with the end of guide rail.
Repeat for the remaining side.
c. Slide the short seal, large lip down, over the short
guide rail on the south end of the canopy. The seal
should be ush with ends of guide rail.
Larger seal lip Flush with guide rail
d. Select a corner cover that îš¿ts each corner and snap
it down over the corner receiver. You should hear an
audible snap. Repeat for the remaining corner.
e. Make sure that all red/orange warning indicators have been covered. Check each canopy seal for
secure engagement.
WARNING:
The OmniBed must be properly reassembled per these guidelines. Improper reassembly of the
OmniBed may result in unsafe operation of the unit.
11. Screw in the rail locking screws in the oblong slot in each rail to unlock the rails. Refer to Figure 5-1.
Figure 5-20
86 6600-0343-000 104 © 2001 by Datex-Ohmeda, Inc.. All rights reserved.
Chapter 5: Repair Procedures
